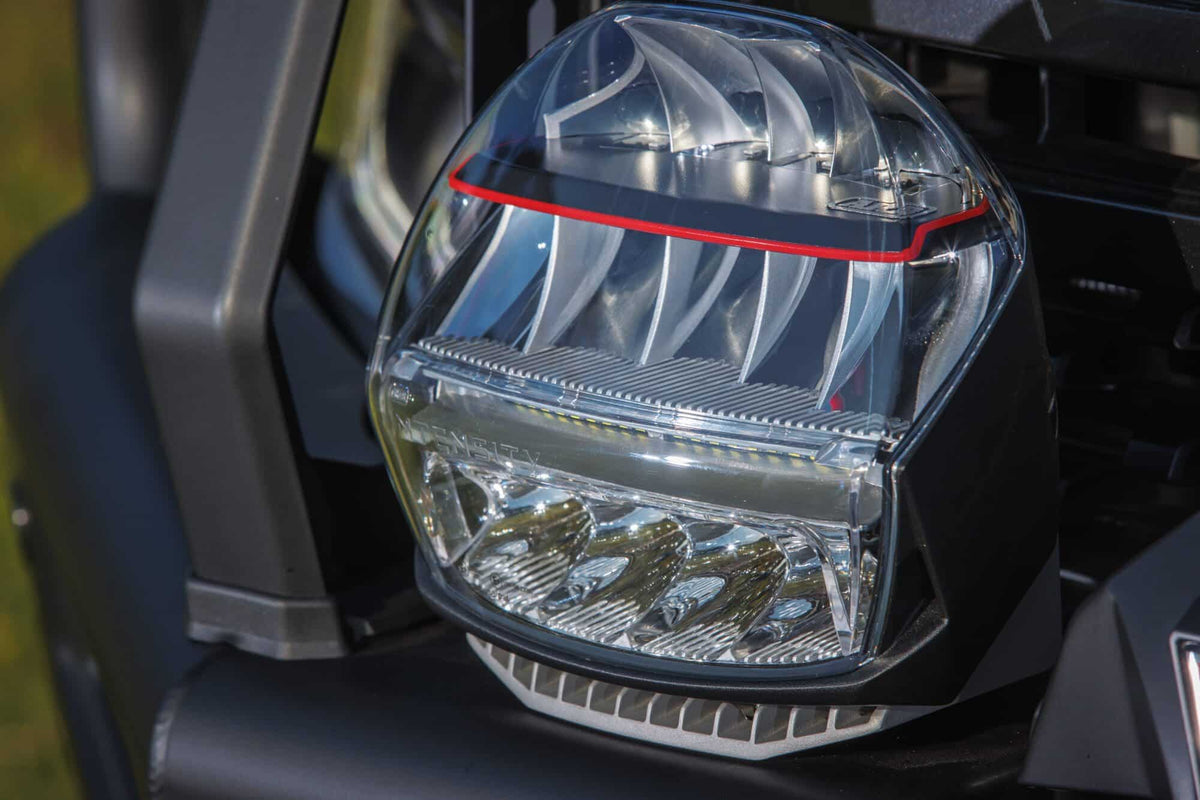

ARB Intensity IQ LED Driving Light Set

A carefully selected camping product from 4Matt Campers, prepared around fitment, stock, options and the way you plan to travel.

From R45 595.00

Add this product to your quote basket. 4Matt Campers confirms stock, fitment, freight/courier and final pricing before payment.

SKU: ARBVX17

Genuine brand Expert fitment advice Options available 4Matt supported

WhatsApp about this product Call 4Matt Campers

No online payment is taken. 4Matt Campers confirms the final quote before you decide.

Overview

Compact, capable and easy to understand.

Product question

Ask about this product.

Send a product-specific question to 4Matt Campers. We will reply with stock, fitment, options, lead time or showroom guidance for this exact product.

Name Email Phone Town / City Vehicle, trailer, or caravan details Message

Choose from thousands of beam patterns. A unique 4-optic design (Super Spot, Spot, Flood and Midrange) is employed to provide virtually an unlimited choice of light beams to suit any road condition.

The Super Spot and Spot optic, based on free-form reflector technology, produce an even spot beam for extended distance illumination. The Flood optic has a specially designed lens to maximise the light spread for excellent foreground visibility. The Midrange optic employs a conventional parabolic reflector to illuminate the midrange area.

The Intensity IQ’s advanced electronics and intelligent microprocessor system allow for effortless control and customization of your driving lights. You can easily switch between flood and spot beam patterns depending on your driving conditions, and adjust the brightness to suit your preferences.

But the benefits of the Intensity IQ don’t stop there. Thanks to its cutting-edge thermal management system, this light delivers consistent performance no matter the external temperature. It also features a hard-wearing, UV-resistant polycarbonate lens that can withstand harsh off-road conditions.

The Intensity IQ’s sleek, low-profile design and high-quality construction make it a stylish and practical addition to any vehicle. It’s easy to install and comes with a range of mounting options to suit your needs.

Specifications

INTENSITY IQ
Input	11 – 32V
Power	170 W @ 13.2V
Current Draw	12.9A @ 13.2V
Output – Raw	Max Spot 7,070 lumens
Max Flood 14,060 lumens
Output – Effective	Max Flood 6,666 lumens
Max Combo 6,265 lumens
Max Spot 6,613 lumens
Distance @ 1 Lux (1 Pair)	Max Spot 1350m / 4429ft
Max Combo 1105m / 3625ft
Max Flood 900m / 2953ft
Operating Temperature (°C)	-40°C to +80°C
Operating Temperature (°F)	-40°F to +176°F
Color Temperature	5700 – 6200 Kelvin
Weight	3.8kg (8.4lbs)
Dimensions (mm)	220mm (w) x 215mm (h) x 142mm (d)
Dimensions (inches)	8.7″ (w) x 8.5″ (h) x 5.6″ (d)
Warranty	3 years

ARB Intensity IQ App

Finding the right balance of lighting when tackling not only tracks but also country roads can be challenging. ARB has taken this into account when designing the ARB Intensity IQ app, which allows users to control and set thousands of light combinations from your mobile device! Available from the Apple Store and Google Play Store.

How it Works

The ARB Intensity IQ app ensures users have the ultimate level of control over the revolutionary ARB Intensity IQ lights. Empowering users to control the brightness levels of each optic zone (super spot, spot, flood and midrange) from the 20 different levels of light, presents thousands of different combinations to set the perfect illumination for your adventures.
