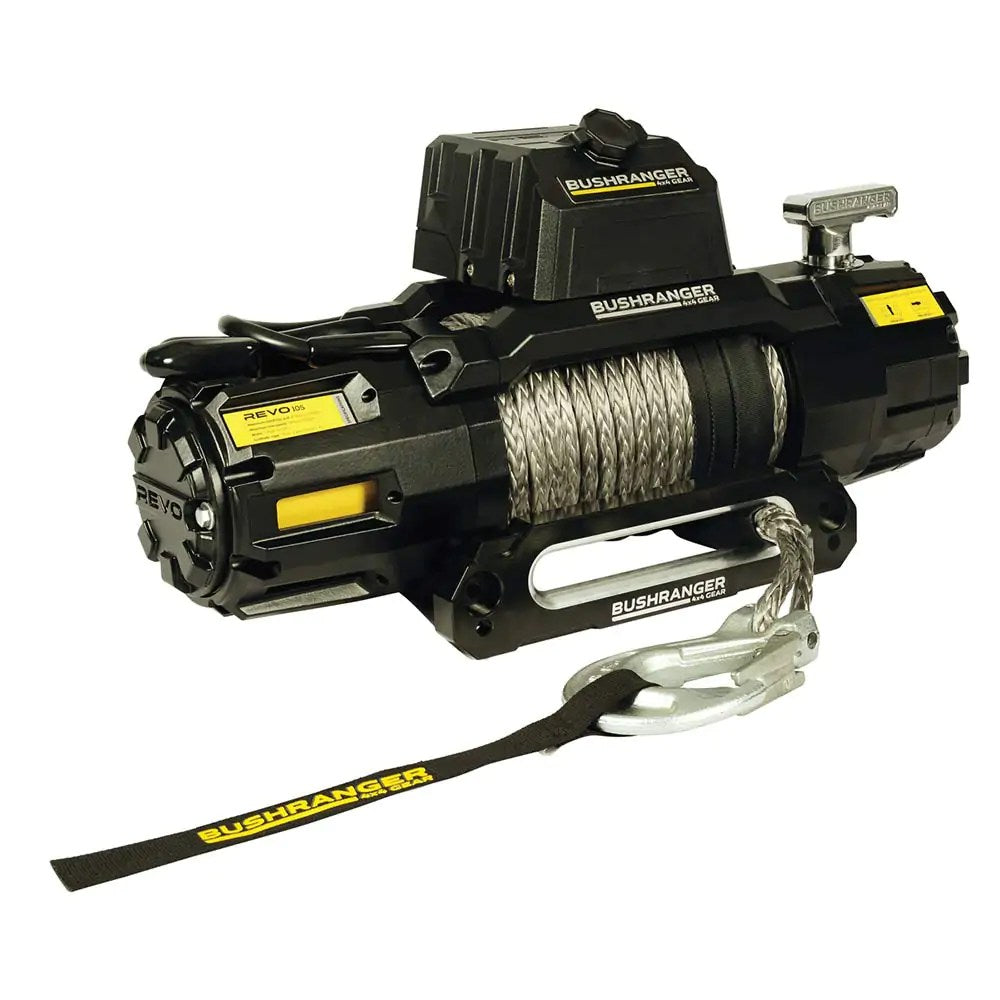

Bushranger Revo 10000 lbs Winch — Synthetic Rope
A carefully selected camping product from 4Matt Campers, prepared around fitment, stock, options and the way you plan to travel.
From
R19 315.00
Add this product to your quote basket. 4Matt Campers confirms stock, fitment, freight/courier and final pricing before payment.
SKU: NHRWR100S
Genuine brand
Expert fitment advice
Options available
4Matt supported
No online payment is taken. 4Matt Campers confirms the final quote before you decide.
Overview
Compact, capable and easy to understand.
Product question
Ask about this product.
Send a product-specific question to 4Matt Campers. We will reply with stock, fitment, options, lead time or showroom guidance for this exact product.
The Revo 10000 lbs Winch – Synthetic Rope is built with long term reliability in mind. With a new and improved powder coating; rigorously tested in Australian facilities and real-world conditions. REVO is ready to be pushed to the extreme.
Designed to tackle any challenge, the REVO 10S is packed with tough and reliable features.
- 10mm premium synthetic rope paired with a ½” removable clevis hook.
- 4 Stage oversized, externally adjustable gearbox designed for maximum strength and versatility. With 16 clockable positions making for ease of fitment.
- Gearbox mounted braking system 100% load holding, proportional friction braking system located inside the gearbox, away from the drum – eliminating heat transfer to rope.
- In-line hawse fairlead made from lightweight aircraft-grade aluminium. Engineered with an innovative two position design allowing for greater flexibility when installing.
- Series wound, 12V, 5.2HP motor made with high grade materials. Resulting in low current draw and longer life at extreme loads.
- Spring loaded clutch making for an easy to use no-lift style clutch mechanism
- Versatile Control Box with multiple mounting orientations to suit every setup. Supplied with an additional mounting bracket for hassle free installation
- Wireless hand controller fully sealed, IP67 rated, with a 433MHz receiver mounted internally in the control box.
- Zero drag braking system allowing for the winch to be powered out under no load without heat build-up, making unspooling a breeze
Specification
- Dimensions: 583mm (L) x 165mm (W) x 216mm (H) (excludes control box)
- Rated Line Pull (single): 10,000lbs (4,536kg)
- Motor: Series wound, 12V, 5.2HP (3.9kw)
- Remote Control: Two functions, hand controller (Wireless, 30m range) (Wired, 5m lead)
- Electrical: Contactor IP67 500A
- Gear Train: 4 stage gear driven
- Gear Ratio: 171:1
- Clutch (freespooling): Rotating Ring Gear
- Brake: Gearbox Mounted, Proportional Friction Brake System
- Drum Diameter/Length: 63.5mm x 244mm
- Mounting: Bolt Pattern 254mm x 114mm
- Rope: 10mm x 28m Synthetic Rope
- Fairlead: Two position Aluminium Hawse Fairlead
- Recommend Battery: 650CCA minimum
- Battery Leads: 1850mm
- Finish: Black Powder Coat
- Mechanical Warranty: Limited Lifetime
- Electrical Warranty: 7 years
- Waterproof Rating: IP67
- Certification: CE, IP67
- Winch Weight: 33kg
- Packaged Weight: 37kg
