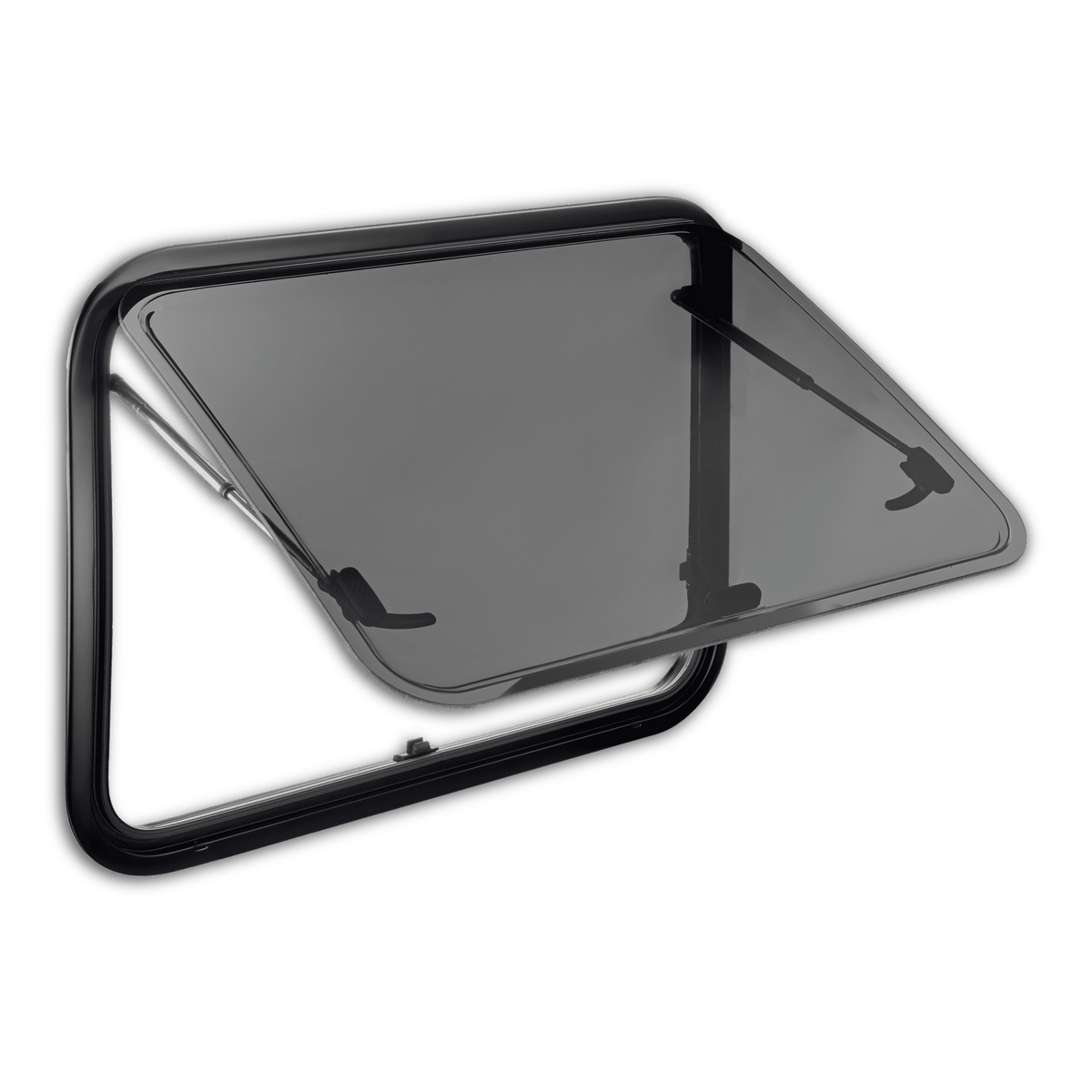

Dometic S7 1200x600 Hinged Window

A 1200 x 600mm Dometic S7 hinged caravan window with a powder-coated aluminium frame and double dark-tinted acrylic glazing, built for gently curved wall panels.

Why This Product

The S7 range uses a slim aluminium frame with a slight curve to match rounded caravan and van-conversion walls, so it sits flush rather than proud of the panel. Friction hinges let the pane hold open at any angle rather than only fully open or shut, and the multi-point locking catches keep it secure when closed.

Key Features

• 1200 x 600mm hinged opening pane
• Powder-coated aluminium frame, slightly curved for rounded wall panels
• Double dark-tinted acrylic glazing
• Friction hinges hold the window open at any position
• Multi-point toggle-catch locking system
• Suits wall thickness from 22-44mm (confirm exact thickness for the correct clamp set)

Ideal For

• Caravan or camper side panels with a gentle curve
• Owners replacing a damaged or old S7-family window with a matching size
• Builds wanting a flush, lightweight aluminium-framed window over a bulkier polyurethane one

Local Support from 4Matt Campers

We're based in Bellville, Cape Town and supply these Dometic windows across the Western Cape and Cape Town. Before ordering, measure your existing cut-out and contact us to confirm fitment for your wall thickness and curvature.

Technical Specifications

• Opening size: 1200 x 600 mm
• Opening mechanism: Hinged, friction-hinge multi-position
• Frame: Powder-coated aluminium, curved profile
• Glazing: Double dark-tinted acrylic glazing
• Wall thickness: 22-44mm (clamp set varies by exact thickness)
• Locking: Multi-point toggle-catch lock

What's Included

• Dometic S7 1200x600 hinged window unit (glazed pane and frame, hinges and locking catches fitted)

Optional Fitment / Upgrade Notes

Confirm your existing cut-out measures 1200 x 600mm and that your wall thickness falls in the 22-44mm range before ordering -- the exact clamp set depends on your precise wall thickness. A pleated blind and flyscreen for this window are not confirmed as included and are typically a separate accessory.

Complete Your Setup

Browse more caravan windows, vents and rooflights · Shop caravan and trailer spares

FAQ

What wall thickness does this window suit?
Dometic lists the S7 window range as suitable for 22-44mm wall thickness, with clamps set for your exact thickness. Confirm yours with us before ordering.

Does it include a flyscreen or blackout blind?
We could not confirm this is included standard -- it's typically a separate pleated blind/flyscreen accessory on this window range. Ask us if you need one.

Is this the same as the D-Lux version at this size?
We couldn't confirm a specific difference between the two at 1200x600mm, so we've described them separately without assuming they're identical or different.
