Dometic S7 1570x575 Hinged Window, Grey Frame
A carefully selected camping product from 4Matt Campers, prepared around fitment, stock, options and the way you plan to travel.
From
R3 245.00
Add this product to your quote basket. 4Matt Campers confirms stock, fitment, freight/courier and final pricing before payment.
SKU: DOM-S7-1570X575H
Genuine brand
Expert fitment advice
Options available
4Matt supported
No online payment is taken. 4Matt Campers confirms the final quote before you decide.
Overview
Compact, capable and easy to understand.
Product question
Ask about this product.
Send a product-specific question to 4Matt Campers. We will reply with stock, fitment, options, lead time or showroom guidance for this exact product.

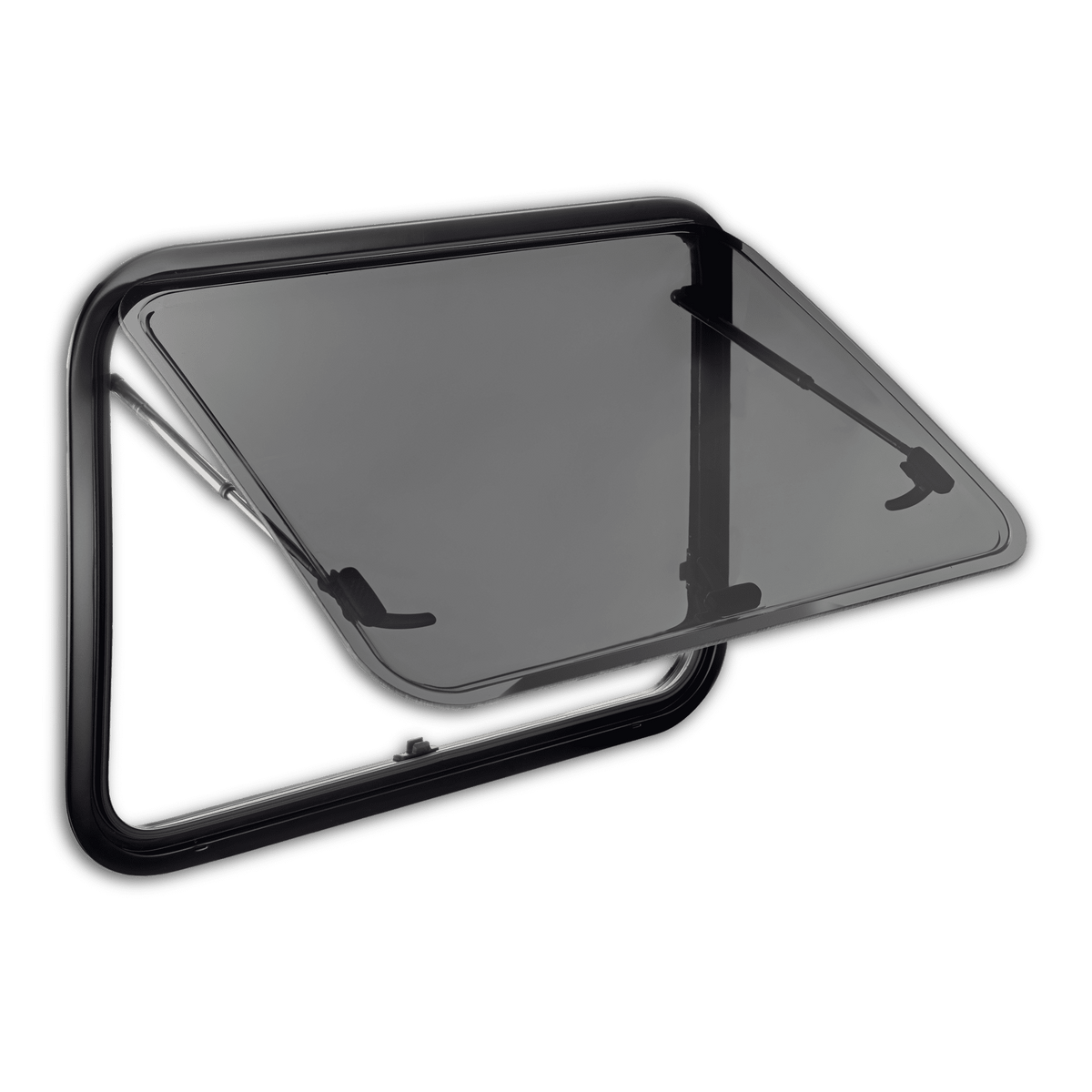

A large 1570 x 575mm Dometic S7 hinged caravan window in a grey frame finish, with double dark-tinted acrylic glazing for a wide panel opening.
Why This Product
This is the same S7 hinged-window construction as Dometic's standard range, but finished in a grey frame rather than the usual colour -- useful if you're matching an existing grey-trimmed build. At 1570 x 575mm it's one of the widest single openings in the range, suited to a long side panel.
Key Features
- 1570 x 575mm hinged opening pane
- Grey frame finish
- Double dark-tinted acrylic glazing
- Friction hinges hold the window open at any position
- Multi-point toggle-catch locking system
Ideal For
- Caravan or camper builds with grey exterior trim to match
- Wide side panels wanting maximum light and airflow from a single window
- Owners replacing an existing large S7-family window
Local Support from 4Matt Campers
We're based in Bellville, Cape Town and supply these Dometic windows across the Western Cape and Cape Town. Before ordering, measure your existing cut-out and contact us to confirm this window and frame colour will fit and match your build.
Technical Specifications
- Opening size: 1570 x 575 mm
- Opening mechanism: Hinged, friction-hinge multi-position
- Frame: Grey finish
- Glazing: Double dark-tinted acrylic glazing
- Wall thickness: 22-44mm (clamp set varies by exact thickness)
- Locking: Multi-point toggle-catch lock
What's Included
- Dometic S7 1570x575 hinged window unit, grey frame (glazed pane and frame, hinges and locking catches fitted)
Optional Fitment / Upgrade Notes
Confirm your existing cut-out measures 1570 x 575mm and that your wall thickness falls in the 22-44mm range before ordering. Check the grey frame shade against your build if you're matching existing trim, as finishes can vary between production runs.
Complete Your Setup
Browse more caravan windows, vents and rooflights · Shop caravan and trailer spares
FAQ
Is the grey frame just a colour option, or a different window?
As far as we could confirm, it's the same S7 hinged-window construction in a grey frame finish rather than a technically different window.
What wall thickness does this suit?
Dometic lists the S7 window range as suitable for 22-44mm wall thickness. Confirm your exact thickness with us before ordering.
Does it include a flyscreen or blackout blind?
We could not confirm this is included standard -- ask us if you need one added to your order.
