Flex DC Control Box, 12/24V Power Distribution Box

Short Product Summary

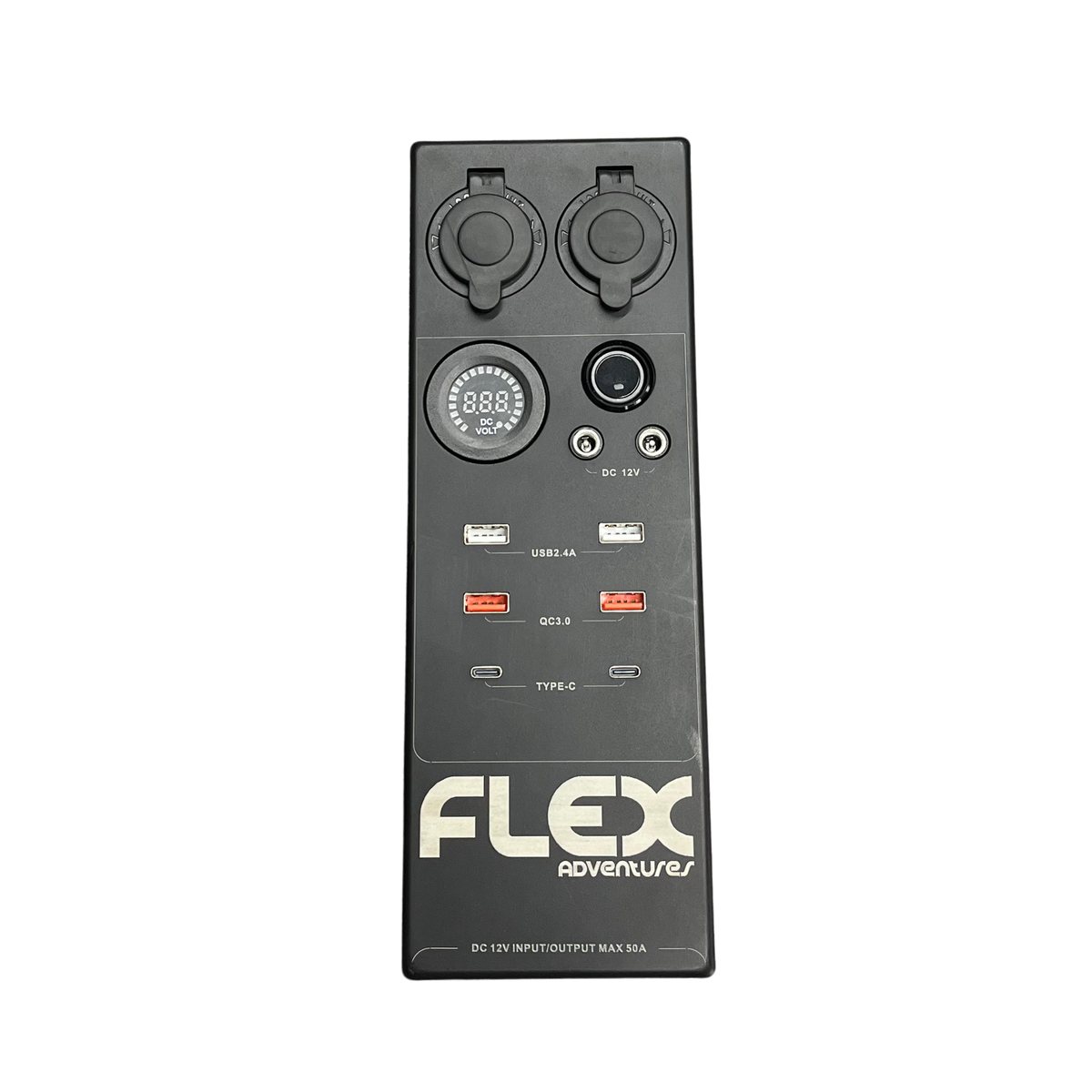

The Flex DC Control Box is a plug-and-play 12/24V distribution box for your auxiliary battery. Its Anderson, USB, USB-C, cigarette-socket and barrel outlets let you run or charge up to 13 things at once, and the slide-on bracket in the box makes it simple to mount in a 4x4 or camper trailer.

Why This Product

Once a 4x4 or camper trailer has an auxiliary battery, the next job is getting power out of it neatly. A fridge, phones, a DC-DC charger and more all need a connection. A distribution box gives each one its own port and puts the battery status on a display, in place of a tangle of loose leads. Because the box slides off its bracket, it can travel with the battery when the battery leaves the vehicle.

Key Features

• Up to 13 appliances – run or charge plenty of gear from one auxiliary battery
• Four 50A Anderson-style outlets – one connects to the battery and three can work as outputs or charging inputs
• Charge the battery through it – connect a DC-DC charger or a solar panel with regulator to an Anderson port
• Wide port mix – USB-A, QC3.0 USB, USB-C, cigarette sockets and DC barrel ports for phones and other devices
• Fire-resistant ABS body – UL 94V-0 compliant plastic, with ports recessed to reduce damage from knocks
• Built-in voltmeter – a large digital display shows the battery status
• Slide-on mounting bracket – included, so the box can come off and go with the battery

Ideal For

• 4x4 owners with an auxiliary battery who want tidy power distribution in the vehicle.
• Camper trailer owners who want one central point to power fridges and charge devices.
• Overlanders with lots of gear running phones, tablets and a fridge from the same battery.
• Anyone with a DC-DC charger or solar setup who needs an easy charging input to the battery.

Local Support from 4Matt Campers

Our 4Matt Campers team helps owners across South Africa plan auxiliary power for fridges and camping gear, so ask us how this box would fit your battery and cable layout.

Technical Specifications

• Brand: Flex
• Part Number: FDCBOX
• Type: 12/24V DC power distribution box
• Material: ABS plastic (UL 94V-0 compliant)
• Box dimensions: 90(W) x 250(H) x 63(L) mm
• Weight: 0.9 kg
• Suitable battery types: Any deep-cycle (Lithium, AGM, Calcium, Wet, Gel)
• Battery connection: Via Anderson plug to the battery terminals
• Anderson outlets: 3 x 50A inputs/outputs, plus 1 x 50A grey input
• Cigarette sockets: 2 x 10A
• DC barrel ports: 2 x 5A
• USB-A ports: 2 x 2.4A
• QC3.0 USB ports: 2 x 18W
• USB-C ports: 2 x 45W
• Fuses: 2 x 30A fuses in parallel between the Anderson plugs
• Operating temperature: -10°C to 50°C
• Display: Built-in voltmeter

What's Included

• Flex DC Control Box
• Slide-on mounting bracket

Optional Fitment / Upgrade Notes

A few checks make the installation straightforward.

• Confirm your battery is a deep-cycle type: Lithium, AGM, Calcium, Wet or Gel.

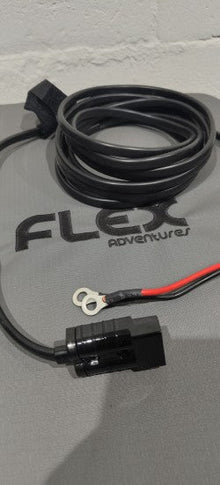

• Run a cable from the battery to an Anderson port on the underside, and ask a qualified auto-electrician to size and fuse it.
• Allow room for a box 250 mm tall and 90 mm wide, plus space to slide it on and off the bracket.
• Tell us what you want to connect, such as a fridge, charger or solar regulator, and we will confirm the right plugs and cable.

Complete Your Setup

Pair it with a Flex camping fridge-freezer and matching leads from electrical accessories, add a solar panel to charge the battery, and browse the Flex Adventures range.

FAQ

How many devices can the DC Control Box run?
Up to 13 at once. It has four Anderson-style outlets, and one of them is used to connect the box to the battery.

Which batteries does it suit?
Any deep-cycle battery: Lithium, AGM, Calcium, Wet or Gel.

Can I charge the battery through the box?
Yes. The Anderson outlets can act as inputs, so a DC-DC charger or a solar panel with a regulator can be connected to charge the battery.

Does it come with a mounting bracket?
Yes. A slide-on bracket is included, and the box slides off it so you can take it along with the battery.

Can I fit it myself?
We recommend a qualified auto-electrician for the battery cable and fusing. Ask us if you are unsure which parts you need.
