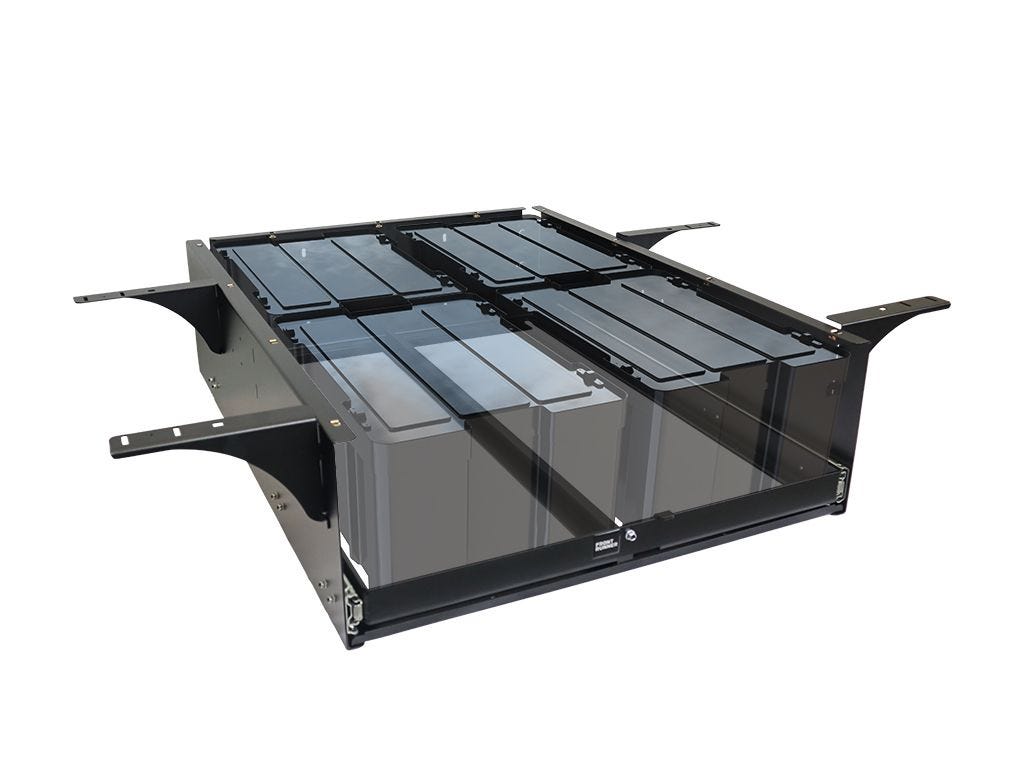

Front Runner 4 Cub Box Drawer — Narrow

Short Product Summary

The Front Runner 4 Cub Box Drawer — Narrow is a universal drawer system sized for vehicles with a narrower load area, for example a Land Rover Defender 90/110 (1983-2016); it also suits vehicles whose wheel arches sit further in than usual. It's one sliding, latched drawer with fitting instructions, built to take Cub Pack storage boxes sold separately.

Why This Product

Vehicles with a narrower load area or protruding wheel arches often have no vehicle-specific drawer kit, so gear stays loose or stacked on the floor. This drawer's bearing slides let it pull out almost the full way, and a rotating latch keeps it shut when closed, giving narrower-bodied vehicles a proper storage drawer sized to fit them.

Key Features

• Sized for narrow vehicles – built for models such as a Land Rover Defender 90/110 (1983-2016), plus vehicles whose wheel arches sit further into the load area
• Near-full extension – high-strength bearing slides let the drawer pull out almost the full way
• Rotating latch – keeps the drawer secured shut when closed
• Built for Cub Pack storage – sized around Front Runner's stackable Cub Pack containers, sold separately
• Custom top storage – no upper flat deck comes with it; once your own deck is in place, boxes such as a Wolf Pack Pro can be secured with Stratchits, a Cargo Rail or tie-down rings, all sold separately
• Black powder coat finish – the same finish as Front Runner's Slimline II Rack

Ideal For

• Owners of narrow-bodied vehicles, for example a Land Rover Defender 90/110 (1983-2016) since this drawer kit is sized for narrow vehicles and for load areas where the wheel arches stick out further than usual.
• Vehicles without a Front Runner vehicle-specific drawer kit because this universal option is sized by its own dimensions rather than a specific model.
• Cub Pack storage users as the drawer is built around Front Runner's stackable Cub Pack containers, sold separately.
• Anyone planning a custom storage build since it comes without a deck, completion set or faceplates, leaving the finish of the build to you.

Local Support from 4Matt Campers

Our Western Cape team can check this narrow drawer kit's dimensions against your vehicle before you order.

Technical Specifications

• Brand: Front Runner
• Part Number: SSAM008
• Consists of: 1 x Drawer unit, Fitting Instructions
• Drawer unit material: Black powder coated mild steel
• Product dimensions: 906mm (35.7") L x 696mm (27.4") W x 262mm (10.3") H
• Interior drawer dimensions: 882mm (34.7") L x 646mm (25.4") W x 45mm (1.8") H
• Weight: 38.44kg (84.7lbs)
• Special notes: Rotating latch secures the drawer in place

What's Included

• 1 x Drawer unit
• Fitting instructions

Optional Fitment / Upgrade Notes

This is a universal drawer, so check these points before ordering:

• Measure your load area against the 906mm x 696mm x 262mm product dimensions, and ask us to confirm fit before ordering.
• There is no upper flat deck, deck completion set or faceplates in the box; the wood inside is for transport only, since this is meant to be a fully customised build.
• Fitting requires a Rivnut tool (we suggest the M6/M8 size), and some vehicles need drilling.
• If there's no rigid surface to mount onto, add a Front Runner Drawer Mount Kit (standard or Tall); Cub Packs and any upper deck boxes are sold separately.

Complete Your Setup

Browse the drawer systems range, see the full Front Runner range, or look through our 4x4 parts and accessories.

FAQ

Do Cub Packs come with this drawer?
No. Cub Packs are sold separately from the drawer unit.

Will this fit my vehicle?
It's a universal drawer sized for narrower load areas, for example a Land Rover Defender 90/110 (1983-2016). Measure your load area against the product dimensions and ask us to confirm fit before ordering.

What tools do I need to install it?
A Rivnut tool (we suggest the M6/M8 size); drilling may also be required depending on your vehicle.

Does it come with a top deck or faceplates?
No. This universal drawer has no upper flat deck, deck completion set or faceplates as standard.

What if there's no rigid surface to mount it on?
Add a Front Runner Drawer Mount Kit, standard or Tall version.
