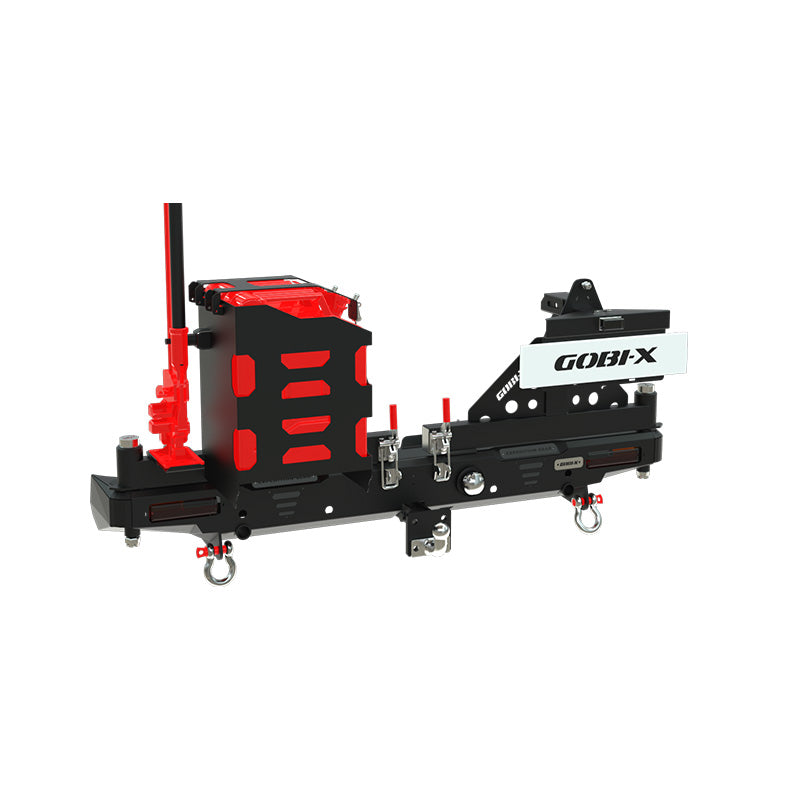

Gobi-X Premium Modular Carrier Rear Bumper — Toyota Hilux Revo

Short Product Summary

The Gobi-X Premium Rear Bumper with Modular Carrier System is built for the Hilux Revo, combining a direct bolt-on rear bumper with a swing-arm system for Gobi-X's carrier range. It improves the departure angle and adds recovery points designed for a straight-line pull.

Why This Product

A well-loaded Hilux Revo often runs out of space for a spare wheel, jerry cans or recovery kit long before the trip is over. This bumper's swing-arm system gives that gear a home at the rear, and the direct bolt-on fitment brings an improved departure angle with its own recovery points too.

Key Features

• Direct bolt-on fitment – fits the Hilux Revo's OEM mounting points
• Modular swing-arm system – built to take Gobi-X carriers for a spare wheel, jerry cans, a utility box or a wood box — ask us which suit your setup
• Spare wheel at arm's reach – swings clear instead of needing to be dug out from underneath the vehicle
• Straight-line recovery points – built in for a controlled, safe pull
• High-lift jacking points – shaped for the Gobi-X Hi-Lift jack adaptor
• Removable tow hitch – comes off when towing isn't needed, for extra clearance
• IP67-rated LED tail lights – handle tail, brake, indicator and reverse

Ideal For

• Hilux Revo owners planning a full touring build who want their spare wheel and jerry cans carried at the rear instead of in the load bed
• Drivers building around Gobi-X's carrier range who want a rear bumper built for the Gobi-X swing-arm system
• Anyone who values recovery and towing hardware in one unit rather than fitting each separately

Local Support from 4Matt Campers

Our Western Cape team can help plan which Gobi-X carriers to add to this bumper for your Hilux Revo.

Technical Specifications

• Brand: Gobi-X
• Part Number: GX/RB/TH05
• Vehicle Fitment: Toyota Hilux Revo
• Fitment: Direct bolt-on to OEM mounting points
• Carrier System: Modular swing-arm system compatible with Gobi-X spare wheel carriers, jerry can holders, utility boxes and wood boxes
• Tail Lights: IP67-rated LED (tail, brake, indicator and reverse)
• Recovery Points: Designed to take 3.25T and 4.75T rated shackles
• Jacking Points: For use with the Gobi-X Hi-Lift jack adaptor
• Tow Hitch: Removable four-hole drop plate, two height options 75mm apart (six-hole plate on special request)
• Trailer Plug: Mounted in a protected insert in the bumper
• Anderson Connector: Provision to mount a 50A Anderson connector
• Manufacturing: Laser cut and CNC bent, made in an ISO 9001 certified factory
• Finish: Zinc phosphate pre-treatment and automotive-grade powder coat
• Number Plate: Mounts on a spare wheel carrier (sold separately), not on the bumper

What's Included

• IP67-rated LED tail lights
• Trailer plug
• Removable tow hitch (four-hole drop plate)
• QR code for the Gobi-X fitting instructions and fitting kit list

Optional Fitment / Upgrade Notes

Worth confirming with us before you order:

• Confirm your model year with us: Gobi-X makes a separate rear bumper for the new 2026 Hilux Raider
• No carrier comes with this bumper, but you'll need a spare wheel carrier for the number plate, which can't be bolted straight onto it; tell us what else you plan to carry so we can suggest the right swing-arm accessories
• Ask about the six-hole tow hitch drop plate if you need extra towing height options
• We recommend professional fitting, following the Gobi-X instructions and kit list from the bumper's QR code

Complete Your Setup

See the rest of the Gobi-X range to pick a matching carrier, browse drawer systems to organise the rest of your gear, or check recovery gear for the new recovery points.

FAQ

Will this fit my Hilux?
It's made for the Toyota Hilux Revo. Gobi-X makes a separate rear bumper for the new 2026 Hilux Raider, so confirm your model year with us.

Is a swing arm or carrier included?
No swing arm or carrier is listed as included. The bumper is built for the Gobi-X swing-arm system, so ask us which swing arm and carriers suit your setup.

Is fitting straightforward?
It's a direct bolt-on to the OEM mounting points, but we still recommend professional fitting using the Gobi-X instructions and kit list.

Can I still tow?
Yes. The tow hitch is removable and sits on a drop plate with two height settings; six-hole plates are available on special request.

Can I bolt my number plate to this bumper?
No. The number plate can't go straight onto the Premium bumper; it mounts on a Gobi-X spare wheel carrier, so include one in your order.
