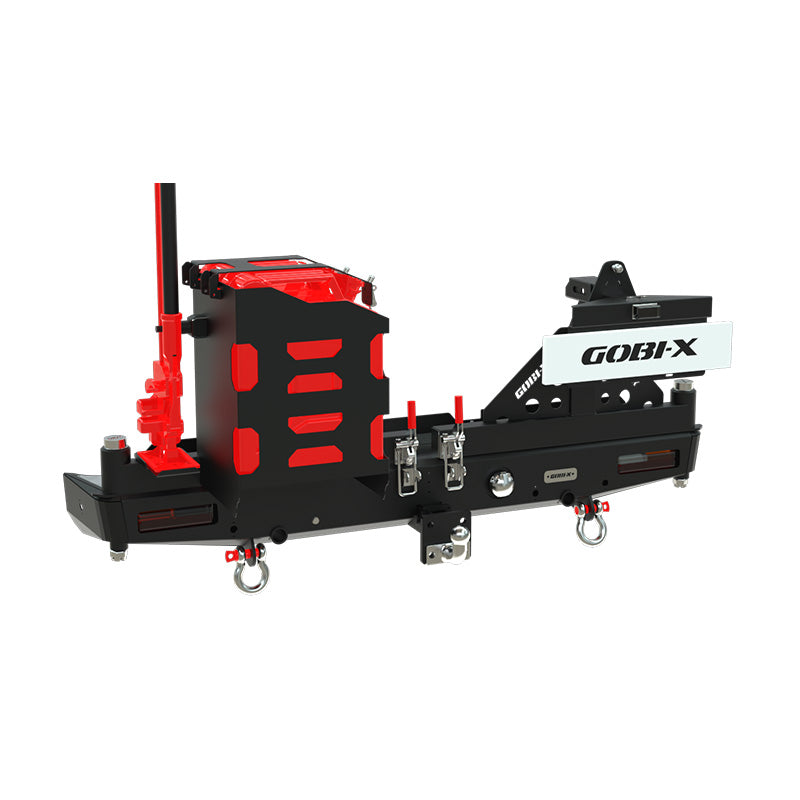

Gobi-X Modular Carrier Rear Bumper — Ford Ranger (2023 onwards)

Short Product Summary

The Gobi-X Rear Bumper with Modular Carrier System is built for the new-generation Ford Ranger (2023 onwards) and bolts straight onto the OEM mounting points. Beyond the better departure angle and recovery points, its swing-arm system accepts a range of Gobi-X carriers so you can move extra gear off the load bed.

Why This Product

Once you start adding a spare wheel, jerry cans or a Hi-Lift jack to a Ranger's load bed, load space disappears fast, and digging underneath the vehicle for a spare is never fun. This bumper's swing-arm system moves that gear onto the back of the bumper instead, while still giving you a better departure angle and solid recovery points.

Key Features

• Direct bolt-on fitment – attaches to the Ranger's OEM mounting points
• Modular swing-arm system – accepts Gobi-X carriers for a spare wheel, jerry cans, a utility box or a wood box — ask us which ones suit your build
• Spare wheel within reach – swings out at arm's reach instead of needing to be dug out from underneath the vehicle
• Straight-line recovery points – built in for a safe, controlled pull
• Removable tow hitch – comes off the drop plate for extra clearance when you're not towing
• Varying steel thickness – keeps the bumper strong where it counts without piling on unnecessary weight
• Trailer plug and Anderson mount – the trailer plug sits in a protected insert, with a mount ready for a 50A Anderson connector

Ideal For

• Ranger owners planning a touring build who want a spare wheel and jerry cans off the load bed and within easy reach
• Drivers who already use Gobi-X carriers and want a rear bumper built for the Gobi-X swing-arm system
• Anyone upgrading from a factory towbar who also wants proper recovery points built into the same unit

Local Support from 4Matt Campers

Our Western Cape team can talk you through which Gobi-X carriers pair with this bumper before you commit to an order.

Technical Specifications

• Brand: Gobi-X
• Part Number: GX/RB/FR03
• Vehicle Fitment: Ford Ranger (2023 onwards)
• Fitment: Direct bolt-on to OEM mounting points
• Carrier System: Modular swing-arm system compatible with Gobi-X spare wheel carriers, jerry can holders, utility boxes and wood boxes
• Tail Lights: IP67-rated LED (tail, brake, indicator and reverse)
• Recovery Points: Designed to take 3.25T and 4.75T rated shackles
• Jacking Points: For use with the Gobi-X Hi-Lift jack adaptor
• Tow Hitch: Removable four-hole drop plate, two height options 75mm apart (six-hole plate on special request)
• Trailer Plug: Mounted in a protected insert in the bumper
• Anderson Connector: Provision to mount a 50A Anderson connector
• Manufacturing: Laser cut and CNC bent, made in an ISO 9001 certified factory
• Finish: Zinc phosphate pre-treatment and automotive-grade powder coat
• Sensor Compatibility: Not compatible with PDC (parking sensors) or the Side Assist module

What's Included

• IP67-rated LED tail lights
• Trailer plug
• Removable tow hitch (four-hole drop plate)
• QR code for the Gobi-X fitting instructions and fitting kit list

Optional Fitment / Upgrade Notes

Before you order, run these past us:

• This bumper is built around the new-generation Ranger from 2023 onwards — tell us your build date if you're not certain which generation you have
• The swing-arm system accepts several Gobi-X carriers, but none are bundled with the bumper, so ask us which spare wheel, jerry can or utility box carrier suits your build
• Let us know if you need the six-hole tow hitch drop plate instead of the standard four-hole version
• This bumper isn't compatible with PDC parking sensors or the Side Assist module, so check whether your Ranger has either before you order
• We recommend professional fitting using the Gobi-X instructions and kit list linked from the QR code

Complete Your Setup

See the rest of the Gobi-X range to add a matching carrier, check 4x4 parts and accessories for the rest of your build, or browse drawer systems to organise what you carry.

FAQ

Does a spare wheel carrier come with this bumper?
No carrier is listed as included. The swing-arm system is built for Gobi-X carriers, so ask us which one fits your plans.

How does it fit to my Ranger?
It bolts directly to the OEM mounting points on the new-generation Ranger (2023 onwards). We recommend professional fitting.

Can I still tow with this bumper fitted?
Yes, the tow hitch is removable and sits on a drop plate with two height settings; a six-hole plate is available on request.

Will my parking sensors still work?
No. This bumper doesn't work with PDC parking sensors or the Side Assist module, so check your Ranger's specification with us before you order.

Which Ranger generation is this for?
The new-generation Ranger built from 2023 onwards. Confirm your build date with us if you're unsure.
