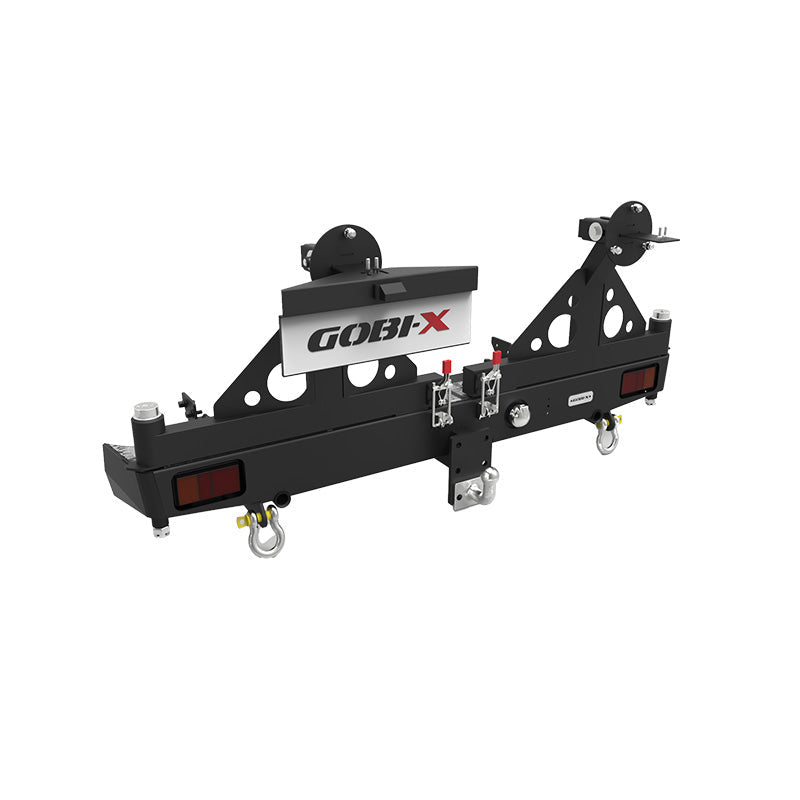

Gobi-X Rear Bumper with Modular Carrier System — Toyota Hilux Revo

Short Product Summary

The Gobi-X Rear Bumper with Modular Carrier System bolts onto the Hilux Revo's OEM mounting points and adds a swing-arm built for Gobi-X's carrier accessories, on top of a better departure angle and its own straight-pull recovery points.

Why This Product

A loaded canopy or bakkie bed rarely leaves room for recovery gear, firewood or a spare wheel, and reaching a spare from underneath the vehicle is awkward at the best of times. Moving that load onto the swing-arm frees up space inside, and the bolt-on bumper adds a better departure angle with its own recovery points.

Key Features

• Direct bolt-on fitment – fits straight onto the Hilux Revo's OEM mounting points
• Modular swing-arm system – accepts Gobi-X carriers for a spare wheel, jerry cans, a utility box or a wood box — ask us which one suits you
• Spare wheel accessible at arm's reach – instead of having to be freed from underneath the vehicle
• Straight-line recovery points – built in for a safe, controlled pull
• Removable tow hitch – the hitch comes off its drop plate, opening up rear clearance when you're not towing
• High-lift jacking points – matched to the Gobi-X Hi-Lift jack adaptor
• Trailer plug and Anderson mount – the trailer plug is tucked into a protected insert, with a separate mount ready for a 50A Anderson connector

Ideal For

• Hilux Revo owners who want gear off the load bed and are happy to add a Gobi-X carrier to the swing-arm later
• Drivers upgrading from a stock towbar who also want recovery points built into the same bumper
• Anyone who tows occasionally and wants a hitch they can remove when it's not in use

Local Support from 4Matt Campers

We help Hilux Revo owners in the Western Cape work out which Gobi-X rear bumper and carrier combination suits their vehicle.

Technical Specifications

• Brand: Gobi-X
• Part Number: GX/RB/TH02
• Vehicle Fitment: Toyota Hilux Revo
• Fitment: Direct bolt-on to OEM mounting points
• Carrier System: Modular swing-arm system compatible with Gobi-X spare wheel carriers, jerry can holders, utility boxes and wood boxes
• Tail Lights: IP67-rated LED (tail, brake, indicator and reverse)
• Recovery Points: Designed to take 3.25T and 4.75T rated shackles
• Jacking Points: For use with the Gobi-X Hi-Lift jack adaptor
• Tow Hitch: Removable four-hole drop plate, two height options 75mm apart (six-hole plate on special request)
• Trailer Plug: Mounted in a protected insert in the bumper
• Anderson Connector: Provision to mount a 50A Anderson connector
• Manufacturing: Laser cut and CNC bent, made in an ISO 9001 certified factory
• Finish: Zinc phosphate pre-treatment and automotive-grade powder coat

What's Included

• IP67-rated LED tail lights
• Trailer plug
• Removable tow hitch (four-hole drop plate)
• QR code for the Gobi-X fitting instructions and fitting kit list

Optional Fitment / Upgrade Notes

Check these points with us before you place an order:

• Confirm your model year with us: Gobi-X makes a separate rear bumper for the new 2026 Hilux Raider
• No carrier is included on the swing-arm, so let us know what you want to carry and we'll match a Gobi-X accessory to it
• Tell us if you'd prefer the six-hole tow hitch drop plate over the standard four-hole version
• We recommend professional fitting, using the Gobi-X instructions and kit list from the bumper's QR code

Complete Your Setup

Browse the Gobi-X range for a matching carrier, see other accessories for your Hilux, or check the 4x4 parts and accessories collection for more additions.

FAQ

Is a carrier included?
No, the swing-arm accepts Gobi-X carriers for a spare wheel, jerry cans, a utility box or a wood box, but you order the carrier separately.

How does it fit?
It bolts directly to the OEM mounting points on the Hilux Revo. We recommend professional fitting.

Does this fit the new 2026 Hilux Raider?
No. Gobi-X makes a separate rear bumper for the new 2026 Hilux Raider; this one is made for the Hilux Revo.

Can I tow with this fitted?
Yes. The tow hitch is removable and sits on a drop plate with two height settings; six-hole plates are available on special request.

Are tail lights included?
Yes, the tail lights are IP67-rated LED units that also handle brake, indicator and reverse duty.
