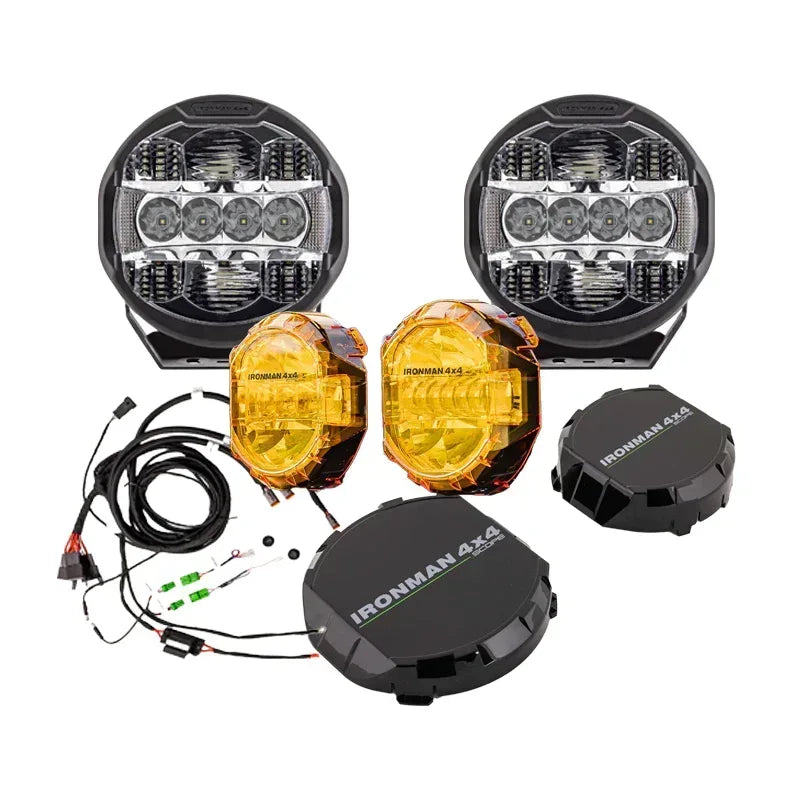

Ironman 4x4 Scope 7" LED Driving Light Kit, Spot Beam

Short Product Summary

This is the Scope 7" kit from Ironman 4x4, in a spot beam. It brings hooded reflectors, OSRAM LEDs and side shooters together, and Ironman quotes its output figures for a pair of lights.

Why This Product

A spot beam puts its effort straight ahead. Ironman positions it for long-distance vision on empty highways and straight back roads, where seeing further matters more than seeing wide.

Key Features

• Spot beam – concentrates the output down the road for long-distance vision
• Hooded reflectors and TIR lens – reflectors along the top and bottom work with a total internal reflection optic instead of a plain reflector cup
• Side shooters as position lights – diffused side optics light the immediate front corners and can run as position lights when the main light is off
• Heat kept under control – the LEDs mount straight to the cast housing, which sheds heat during long use
• IP68 with a case breather – the breather lets hot air out to limit condensation while keeping the seal
• Cast aluminium housing, stainless mount – powder-coated housing with centre and side pinning bolts and no front-facing screws to hold moisture
• 5,700K colour – a daylight-like colour that is easier on the eyes

Ideal For

• Long-distance drivers who cover remote highways and straight open roads
• 4x4 owners adding a full set of auxiliary lights the 7 inch kit is quoted for a pair, so it suits a two-light setup
• Drivers building a mixed setup who plan to run a spot light alongside a combo light
• Owners with a set mounting area in mind the 7 inch size is easy to plan around, with the body dimensions listed below

Local Support from 4Matt Campers

Buying from 4Matt Campers means dealing with an Ironman 4x4 dealer serving South Africa. Ask us to confirm the mounting and wiring you need against your vehicle before you order.

Technical Specifications

• Brand: Ironman 4x4
• Part Number: IDL0701KIT
• Product type: LED driving light kit
• Size: 7 inch
• Beam pattern: Spot (this listing)
• LEDs: OSRAM
• LED configuration: 9 x 9W high output LEDs
• Raw lumens: Single: 8,100 | Pair: 16,200
• Effective lumens: Single: 7,200 | Pair: 14,400
• Lumen efficiency: 89%
• 1 lux rating: Single: 700m | Pair: 990m
• Lux at 10m: 1,957
• Max power: 82.5W
• Current draw: ~8.4 amps at 12V
• Colour temperature: 5,700K
• Dimmable: No
• IP rating: IP68
• Light dimensions: 178mm long x 178mm wide x 98mm deep
• Height including mount: 206mm

Optional Fitment / Upgrade Notes

It is sold by part number rather than for a specific vehicle, so check the mounting spot and the electrics before you order.

• The light body measures 178mm across and stands 206mm high including the mount, so check the space first.
• Confirm your bull bar, roof rack or bracket has room and a suitable mounting point before you drill anything.
• Wire it through a suitable fuse, relay and switch. We recommend professional fitting, especially for the wiring.
• Ask us to confirm exactly what is supplied in the 7 inch kit, including wiring, before you order.

Complete Your Setup

A good lighting setup also needs a solid mount and clean wiring. Look at our roof racks and bull bars and bumpers for mounting, the electrical accessories for the electrical side, and other off-road lights to build out the set.

FAQ

What comes in this kit?
Ironman quotes the output figures for a pair of lights. Ask us to confirm the exact contents before you order.

What beam pattern is this Scope 7 inch light?
This kit (part IDL0701KIT) is the spot beam. The combo beam version has its own part number, so ask us if you want to compare the two.

What is the power draw of this light?
Ironman lists a maximum power of 82.5W and about 8.4 amps at 12V.

Can the light be dimmed?
No, Ironman lists this light as not dimmable.

Is it vehicle specific?
No, it is not tied to one vehicle. Send us your vehicle and the mounting spots you have in mind and we will help you check.
