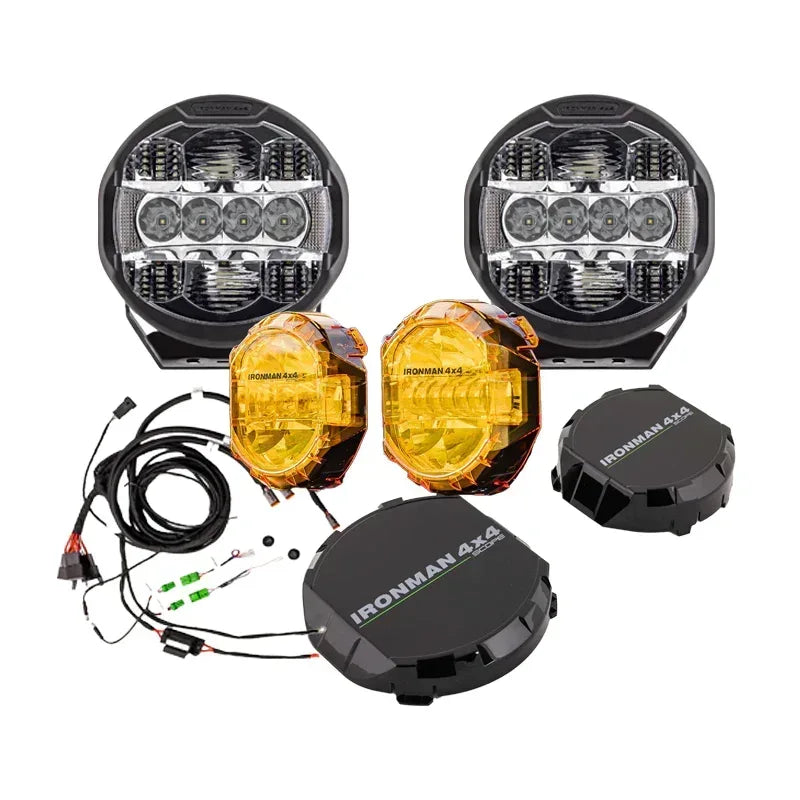

Ironman 4x4 Scope 9" LED Driving Light Kit, Combo Beam

Short Product Summary

This is the Scope 9" kit from Ironman 4x4, in a combo beam. It brings hooded reflectors, Luminus LEDs and side shooters together, and Ironman quotes its output figures for a pair of lights.

Why This Product

A combo beam blends flood and spot light. Ironman positions it for winding bush and mountain roads, where a broader view at closer range helps more than pure reach.

Key Features

• Combo beam – blends flood and spot light for a broader view at closer range
• Hooded reflectors – the LED shines straight into the reflector, so less light is lost than with a plain reflector cup
• Dimmable – one button dials the light down and cuts power draw by 80%
• Side shooters – diffused side optics cover the immediate front corners of the vehicle
• Luminus LEDs – a 6x 12W and 4x 10W LED layout
• IP68 rated – built with dust and water ingress protection in mind
• 5,700K colour – a daylight-like colour temperature

Ideal For

• Bush and mountain drivers who want a broader picture on winding roads
• 4x4 owners adding a full set of auxiliary lights the 9 inch kit is quoted for a pair, so it suits a two-light setup
• Drivers building a mixed setup who plan to run a combo light alongside a spot light
• Owners with a set mounting area in mind the 9 inch size is easy to plan around, with the body dimensions listed below

Local Support from 4Matt Campers

Buying from 4Matt Campers means dealing with an Ironman 4x4 dealer serving South Africa. Ask us to confirm the mounting and wiring you need against your vehicle before you order.

Technical Specifications

• Brand: Ironman 4x4
• Part Number: IDL0901KIT
• Product type: LED driving light kit
• Size: 9 inch
• Beam pattern: Combo (this listing)
• LEDs: Luminus
• LED configuration: 6x 12W and 4x 10W high output LEDs
• Raw lumens: Single: 16,000 | Pair: 32,000
• Effective lumens: Single: 10,800 | Pair: 21,600
• Lumen efficiency: 67.5%
• 1 lux rating: Single: 1,050m | Pair: 1,414m
• Lux at 10m: 4,728
• Max power: 113.5W
• Current draw: ~12.6 amps at 12V
• Colour temperature: 5,700K
• Dimmable: Yes
• IP rating: IP68
• Light dimensions: 227mm long x 227mm wide x 100mm deep
• Height including mount: 245mm

Optional Fitment / Upgrade Notes

It is sold by part number rather than for a specific vehicle, so check the mounting spot and the electrics before you order.

• The light body measures 227mm across and stands 245mm high including the mount, so check the space first.
• Confirm your bull bar, roof rack or bracket has room and a suitable mounting point before you drill anything.
• Wire it through a suitable fuse, relay and switch. We recommend professional fitting, especially for the wiring.
• Ask us to confirm exactly what is supplied in the 9 inch kit, including wiring, before you order.

Complete Your Setup

A good lighting setup also needs a solid mount and clean wiring. Look at our roof racks and bull bars and bumpers for mounting, the electrical accessories for the electrical side, and other off-road lights to build out the set.

FAQ

What comes in this kit?
Ironman quotes the output figures for a pair of lights. Ask us to confirm the exact contents before you order.

What beam pattern is this Scope 9 inch light?
This kit (part IDL0901KIT) is the combo beam. The spot beam version has its own part number, so ask us if you want to compare the two.

What is the power draw of this light?
Ironman lists a maximum power of 113.5W and about 12.6 amps at 12V.

Can the light be dimmed?
Yes, it has a dimming function that cuts power draw by 80%.

Is it vehicle specific?
No, it is not tied to one vehicle. Send us your vehicle and the mounting spots you have in mind and we will help you check.
