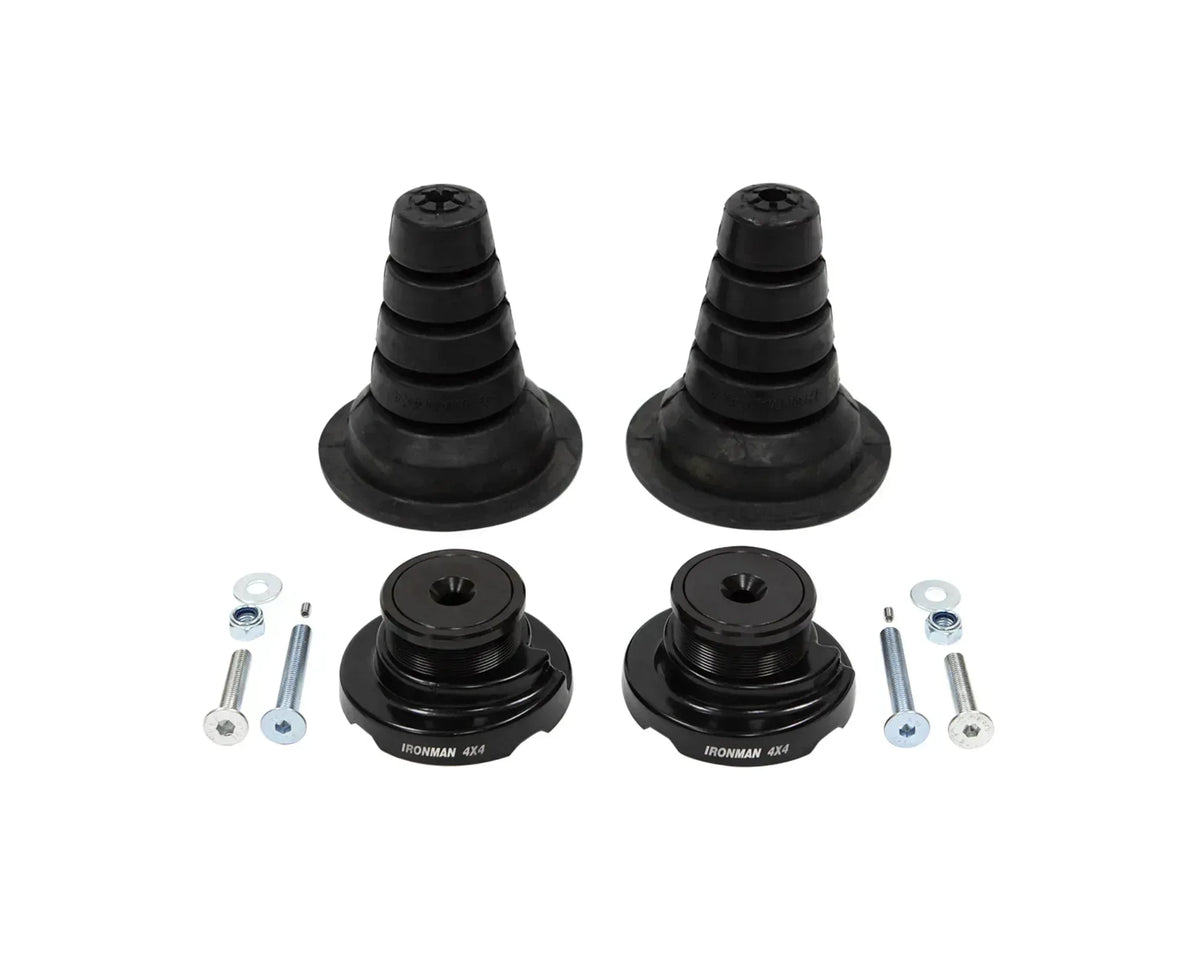

Ironman 4x4 Adjustable Airbag Delete Kit - Prado 150 VX 2009+

Short Product Summary

Ironman 4x4 adjustable airbag delete kit 1218ADK for the Toyota Land Cruiser Prado 150 VX 2009+. It swaps the factory rear air suspension for coil springs and lets you set the rear ride height by threading the spring seats up or down.

Why This Product

Factory rear air suspension is clever when it works, but the airbags are costly to replace when they fail. This kit gives the rear a conventional coil spring set-up instead, and the adjustable seats keep the ride height in your hands.

Key Features

• Adjustable spring seats – thread the seat up or down the base to set the rear ride height
• Bolt-on installation – no welding, cutting or modification of factory parts is needed
• EDP-coated steel base – the threaded base bolts on top of the rear axle
• Drop-forged aluminium seats – shaped to hold the coil spring in position and keep it quiet
• Locking set screws – stop the seats from being knocked out of position once set
• Upper rubber isolator cones – locate the top of the coil spring and act as a secondary bump stop

Ideal For

• Prado 150 VX owners with rear air suspension who want to move to coil springs
• Owners planning a rear lift who want a choice of rear coil springs
• Anyone facing airbag replacement who would rather fit a coil spring set-up

Local Support from 4Matt Campers

4Matt Campers is based in Cape Town and can help you confirm which rear coil springs to pair with this kit before you order.

Technical Specifications

• Brand: Ironman 4x4
• Part Number: 1218ADK
• Product type: Adjustable rear airbag delete kit
• Base: EDP-coated steel, threaded body
• Spring seat: EDP-coated drop-forged aluminium, with set screw
• Installation: Bolt-on; no welding, cutting or modifying factory parts
• Fits vehicles: Toyota Land Cruiser Prado 150 VX 2017+; Toyota Land Cruiser Prado 150 VX 2013-2017; Toyota Land Cruiser Prado 150 VX 2009-2012

What's Included

• Adjustable EDP-coated steel threaded bases
• EDP-coated drop-forged aluminium spring seats
• Set screws to lock the seats
• Upper rubber coil spring isolator cones
• Fitting instructions

Optional Fitment / Upgrade Notes

This kit replaces the rear air suspension, so confirm the following before you order.

• Check that your vehicle has factory rear air suspension and matches the vehicles named for 1218ADK: Toyota Land Cruiser Prado 150 VX 2009+.
• The coil springs are chosen separately, so ask us which ones suit your vehicle and the load it carries.
• Professional fitting is recommended, followed by a wheel alignment.
• Ask us to confirm fit before ordering.

Complete Your Setup

Planning more than one part? Start with our suspension parts, then check the Ironman 4x4 range and our accessories for the rest of the build.

FAQ

What does the airbag delete kit do?
It replaces the rear airbags of the factory air suspension with adjustable seats for coil springs, so the rear runs on coils.

Do I need to weld or cut anything?
No. The kit is a bolt-on and does not need welding, cutting or changes to factory parts.

Can I adjust the ride height?
Yes. Threading the seat along its base changes the rear ride height, and the set screw locks it once you are happy.

Which vehicles is it listed for?
Part 1218ADK is listed for the Toyota Land Cruiser Prado 150 VX 2009+. Send us your exact model, year and body type and we will confirm before you order.

Are coil springs included?
No. The coil springs are chosen separately, so ask us which springs to pair with the kit.
