Ironman 4x4 Eclipse 5x7 Shooter LED Driving Light
A carefully selected camping product from 4Matt Campers, prepared around fitment, stock, options and the way you plan to travel.
From
R3 115.00
Add this product to your quote basket. 4Matt Campers confirms stock, fitment, freight/courier and final pricing before payment.
SKU: ILED5X7
Genuine brand
Expert fitment advice
Options available
4Matt supported
No online payment is taken. 4Matt Campers confirms the final quote before you decide.
Overview
Compact, capable and easy to understand.
Product question
Ask about this product.
Send a product-specific question to 4Matt Campers. We will reply with stock, fitment, options, lead time or showroom guidance for this exact product.
Short Product Summary

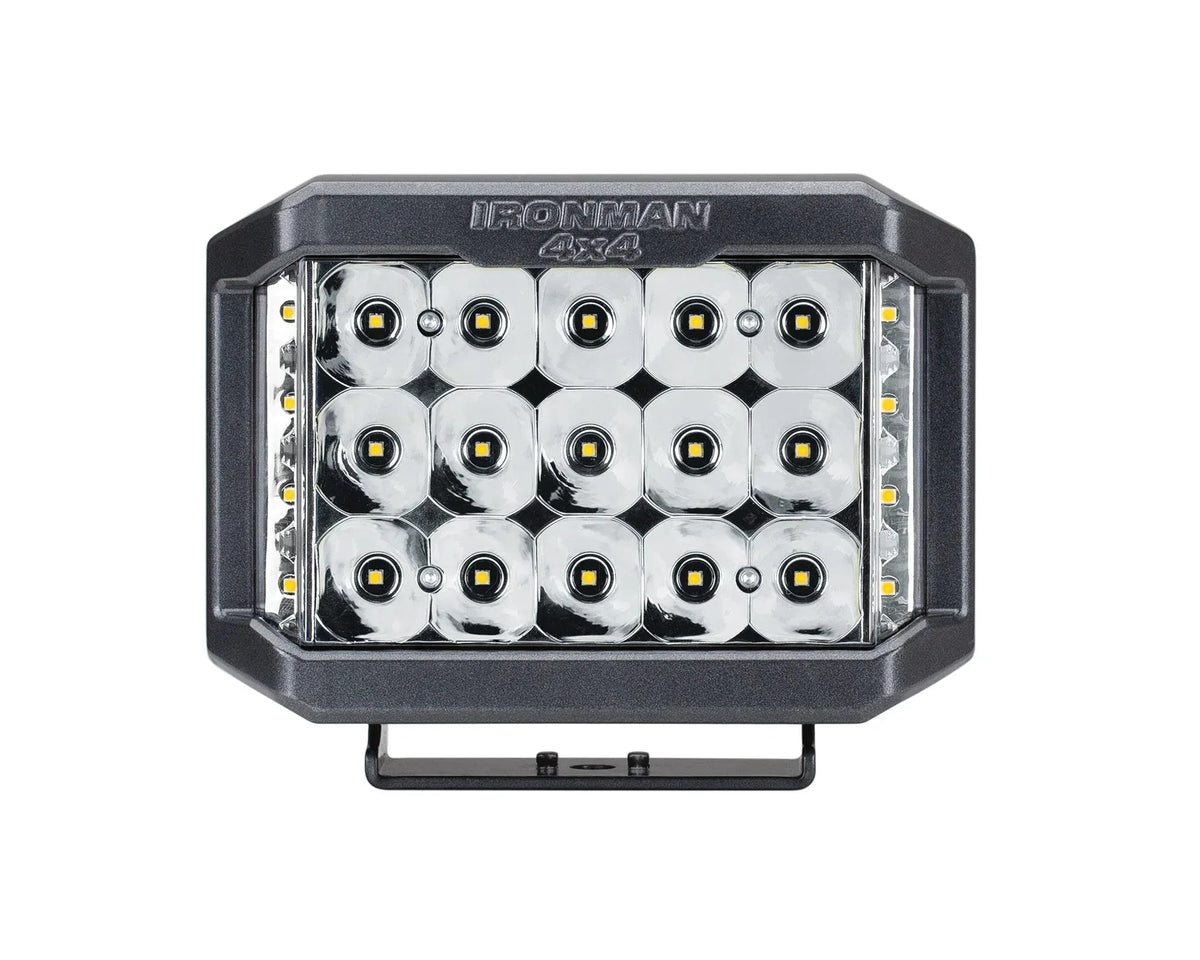

The Eclipse is a rectangular 5x7 LED driving light with 15 forward-facing LEDs and 8 side shooters for spread. It uses OSRAM LEDs in a diecast alloy housing with a polycarbonate lens.
Why This Product
A square-cut driving light gives a different look to the traditional round lamps and suits a lot of vehicles. The side shooters add spread to the beam, so it is not only about distance.
Key Features
- Rectangular 5x7 shape – a retro, squared-off look
- 15 forward LEDs and 8 side shooters – forward projection plus extra spread
- OSRAM LEDs – rated for a 50,000 hour lifespan
- Diecast alloy housing – with a cast aluminium heat sink
- Polycarbonate lens – a tough lens in a sealed housing
- IP67/69K rating – the ingress rating Ironman states for this light
- 6,000K colour – a daylight-white colour
Ideal For
- Owners who like a retro look the squared-off shape suits many vehicles
- Night drivers on dirt roads forward reach with extra side spread
- Bull bar and roof rack builders a rectangular alternative to round lights
Local Support from 4Matt Campers
4Matt Campers is an Ironman 4x4 dealer serving customers across South Africa. Ask us if you are unsure whether this light is the right choice.
Technical Specifications
- Brand: Ironman 4x4
- Part Number: ILED5X7
- Type: Eclipse 5x7 LED driving light with side shooters
- LEDs: OSRAM; 15 x 5W and 8 x 3W
- Colour temperature: 6,000K
- Max power: 75W
- Current draw: ~6.48 amps @ 12V
- Dimmable: No
- Ingress rating: IP67/69K
- Housing: Diecast alloy with cast aluminium heat sink
- Lens: Polycarbonate
- LED lifespan: 50,000 hours
- Raw lumens: 7,540
- Effective lumens: 5,654
- Lumen efficiency: 74.99%
- 1 lux rating: Single: 648m
- Lux at 10m: 4,200
- Light dimensions: 177mm (l) x 164mm (w) x 91mm (d)
- Height including mount: 164mm
Optional Fitment / Upgrade Notes
This light is not vehicle-specific, so a few practical checks will help you choose well.
- Tell us where you plan to mount it and whether you need one light or a pair, so we can confirm the setup.
- Extra lights draw current, so use correct wiring with a relay and fuse. We recommend professional installation.
- Check the rules on using extra lights on public roads before you fit and use them.
Complete Your Setup
Combine it with a bull bar or roof rack to mount it on, and see our electrical accessories for wiring. More lights are in the off-road lights range.
FAQ
What are the side shooters?
They are eight extra LEDs that add spread to the beam, on top of the 15 forward-facing LEDs.
How much power does it draw?
The listed maximum power is 75W, with a current draw of about 6.48 amps at 12V.
Can I dim it?
No, this light is not dimmable.
How big is it?
The light measures 177mm x 164mm x 91mm, and the height including the mount is 164mm.
