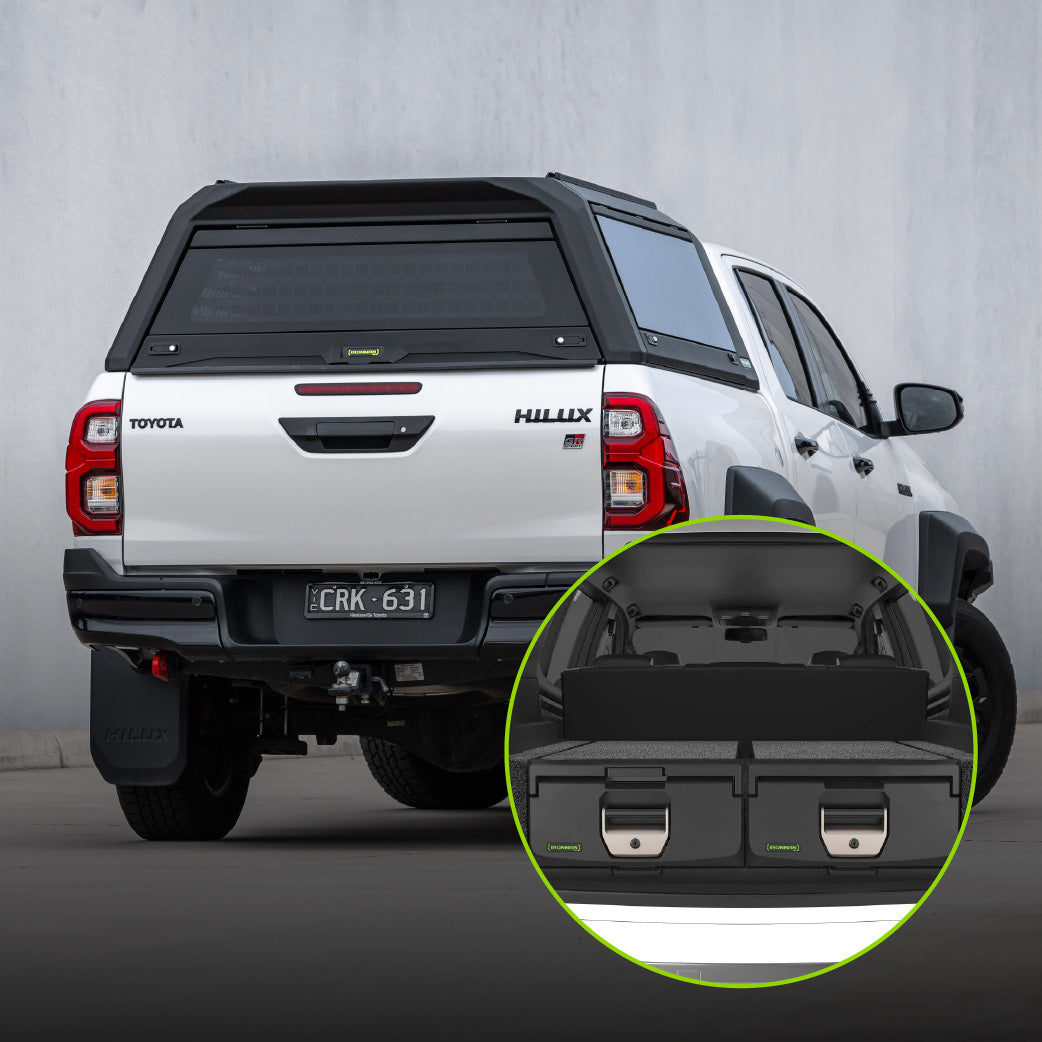

Ironman 4x4 RAID Hybrid Canopy + Full Height Drawers, Hilux Revo 2016+

Short Product Summary

Made for the Toyota Hilux Revo (2016-2026), this combo puts the RAID canopy (hybrid) and a drawer kit together: a full height 4x4 drawer kit with two full-height drawers, 1250mm long: one has a fixed top and the other a slide top. The J-Bracket and wing kit that the fitment needs are included.

Why This Product

A canopy over the tub and drawers underneath is the classic touring setup. With both matched to your Hilux Revo, you skip the compatibility guesswork and get organised, lockable storage in one go.

Key Features

• Hybrid canopy – aluminium side panels for security, with glass at the front and rear for visibility
• Full-height drawer pair – two 1250mm drawers, one with a fixed top and one with a slide top
• Lockable storage – both drawers lock, and the slide top is rated to 100kg
• LED strip lighting – built into the drawer system
• Roller-bearing slide system – diecast aluminium drawers with slip-resistant carpet lining and T-slot channels
• Canopy roof rating – the canopy weighs about 65kg and carries a 180kg dynamic and 350kg static rating; integrated roof rails are part of the design
• Fitment parts included – the model-specific J-Bracket and wing kit come with the combo

Ideal For

• Hilux Revo owners who tour lockable drawers for the kitchen and gear with a canopy above
• Fridge users the slide top is rated to 100kg, which suits a heavy item such as a camping fridge; ask us which fits
• Owners who prefer one install canopy and drawers are matched to the same vehicle and can be fitted together
• Trades and work users secure, organised storage for tools and equipment

Local Support from 4Matt Campers

As an Ironman 4x4 dealer based in Cape Town, 4Matt Campers can help you confirm fitment and answer your questions on this combo.

Technical Specifications

• Brand: Ironman 4x4
• Part Number: ICOMB051H389
• Combo: RAID Canopy (Hybrid) with Full Height drawer kit
• Canopy: Aluminium side panels, front and rear glass, 1100mm side access windows, twin gas-assist struts
• Canopy material and weight: Aluminium, approximately 65kg
• Canopy rating: 180kg dynamic / 350kg static roof load
• Drawer layout: Two full-height 1250mm drawers, one fixed top and one slide top
• Drawer build: Diecast aluminium with slip-resistant carpet lining, T-slot channels and a roller-bearing slide system
• Lighting: LED strip lighting
• Fitment: Model-specific J-Bracket and wing kit, both included
• Fits vehicles: Toyota Hilux Revo 2021+; Toyota Hilux Revo 2018-2020; Toyota Hilux Revo 2016-2018

What's Included

• RAID Canopy, Hybrid
• Full Height 4x4 Drawer Kit (Slide Top)
• Model-specific J-Bracket
• Wing kit

Optional Fitment / Upgrade Notes

These parts are matched to particular models and years. A few quick checks will make sure you order the right one.

• Confirm your exact model and year: this combo is matched to the Toyota Hilux Revo (2016-2026).
• The J-Bracket and wing kit are model-specific and included, so tell us your exact model so we supply the right ones.
• Check your vehicle maker's tub load rating for the limits that apply, including the weight of drawers and what you carry in them.
• We recommend professional fitting, and fitting the canopy and drawers in one visit saves time.

Complete Your Setup

From here you can add roof racks on the canopy, an awning for camp and a power setup for the drawers. Browse more drawer systems too.

FAQ

Which vehicles is this combo for?
It is matched to the Toyota Hilux Revo (2016-2026). Please confirm your exact model and year with us before ordering.

What is in the combo?
The RAID Canopy (Hybrid), the Full Height 4x4 drawer kit, and the model-specific J-Bracket and wing kit needed for the fitment.

How are the drawers set up?
There are two full-height drawers at 1250mm. One has a fixed top and the other has a slide top rated to 100kg, and both can be locked.

Can I fit a camping fridge?
The slide-top drawer is rated to 100kg. Tell us which fridge you have and we will check it suits.

Do I need to buy fitment parts separately?
No. The model-specific J-Bracket and wing kit are included in the combo.
