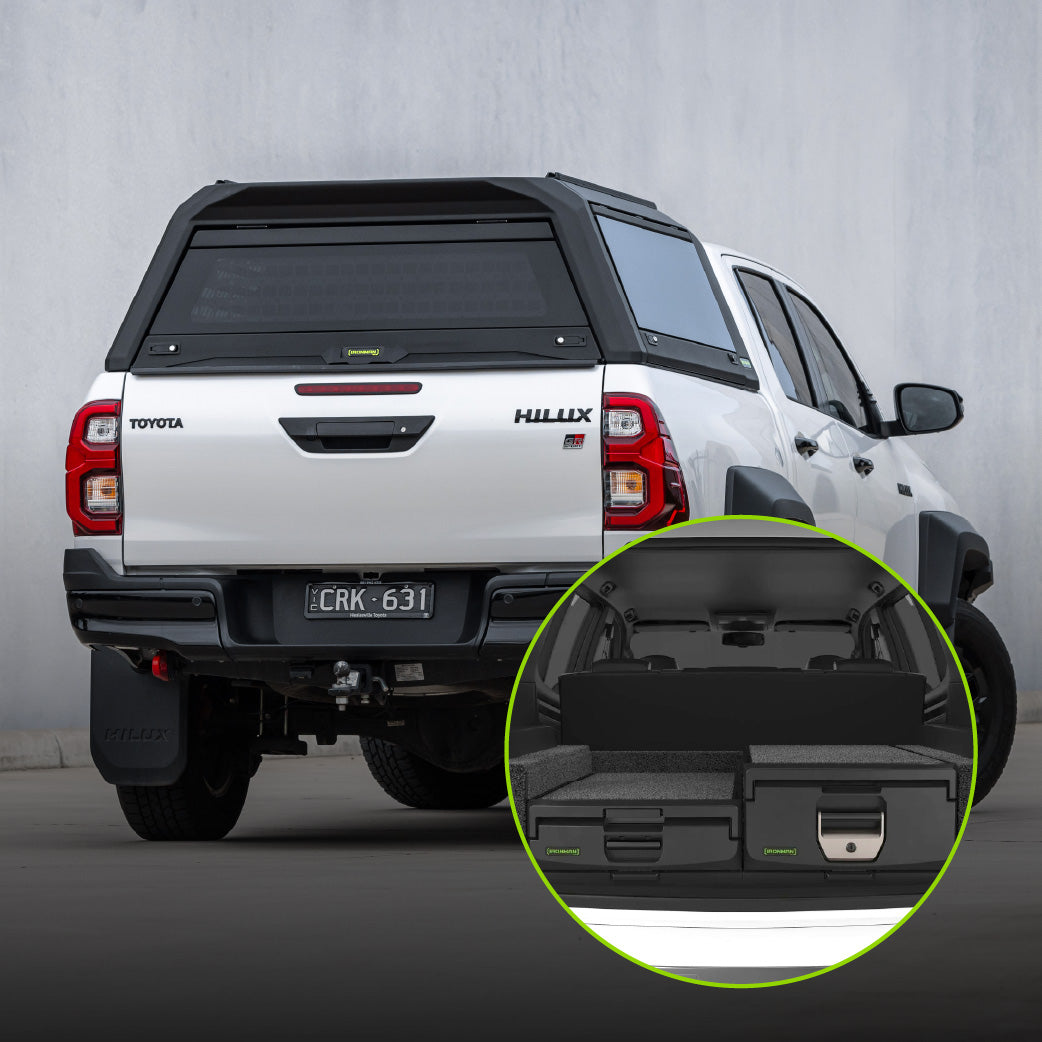

Ironman 4x4 RAID Hybrid Canopy + Mixed LHS Drawers, Hilux Revo 2016+

Short Product Summary

Made for the Toyota Hilux Revo (2016-2026), this combo puts the RAID canopy (hybrid) and a drawer kit together: a mixed height 4x4 drawer kit, with a mid-height sliding drawer on the left and a full-height drawer on the right that locks. The J-Bracket and wing kit that the fitment needs are included.

Why This Product

A canopy over the tub and drawers underneath is the classic touring setup. With both matched to your Hilux Revo, you skip the compatibility guesswork and get organised, lockable storage in one go.

Key Features

• Hybrid canopy – aluminium side panels for security, with glass at the front and rear for visibility
• Mixed height drawers (LHS) – a mid-height sliding drawer on the left for quick fridge or gear access, and a full-height lockable drawer on the right
• Lockable storage – the full-height drawer on the right locks, and the sliding drawer on the left is rated to 100kg
• LED strip lighting – built into the drawer system
• Roller-bearing slide system – diecast aluminium drawers with slip-resistant carpet lining and T-slot channels
• Canopy roof rating – the canopy weighs about 65kg and carries a 180kg dynamic and 350kg static rating; integrated roof rails are part of the design
• Fitment parts included – the model-specific J-Bracket and wing kit come with the combo

Ideal For

• Hilux Revo owners who tour lockable drawers for the kitchen and gear with a canopy above
• Fridge users the mid-height sliding drawer is described as fridge-ready and rated to 100kg; ask us which fridge fits
• Owners who prefer one install canopy and drawers are matched to the same vehicle and can be fitted together
• Trades and work users secure, organised storage for tools and equipment

Local Support from 4Matt Campers

As an Ironman 4x4 dealer based in Cape Town, 4Matt Campers can help you confirm fitment and answer your questions on this combo.

Technical Specifications

• Brand: Ironman 4x4
• Part Number: ICOMB051H412LH
• Combo: RAID Canopy (Hybrid) with Mixed Height LHS drawer kit
• Canopy: Aluminium side panels, front and rear glass, 1100mm side access windows, twin gas-assist struts
• Canopy material and weight: Aluminium, approximately 65kg
• Canopy rating: 180kg dynamic / 350kg static roof load
• Drawer layout: Mid-height slide-top drawer on the left (100kg rated, fridge-ready) with a full-height fixed lockable drawer on the right
• Drawer build: Diecast aluminium with slip-resistant carpet lining, T-slot channels and a roller-bearing slide system
• Lighting: LED strip lighting
• Fitment: Model-specific J-Bracket and wing kit, both included
• Fits vehicles: Toyota Hilux Revo 2021+; Toyota Hilux Revo 2018-2020; Toyota Hilux Revo 2016-2018

What's Included

• RAID Canopy, Hybrid
• Mixed Height 4x4 Drawer Kit (LHS Slide)
• Model-specific J-Bracket
• Wing kit

Optional Fitment / Upgrade Notes

These parts are matched to particular models and years. A few quick checks will make sure you order the right one.

• Confirm your exact model and year: this combo is matched to the Toyota Hilux Revo (2016-2026).
• The J-Bracket and wing kit are model-specific and included, so tell us your exact model so we supply the right ones.
• Check your vehicle maker's tub load rating for the limits that apply, including the weight of drawers and what you carry in them.
• We recommend professional fitting, and fitting the canopy and drawers in one visit saves time.

Complete Your Setup

From here you can add roof racks on the canopy, an awning for camp and a power setup for the drawers. Browse more drawer systems too.

FAQ

Which vehicles is this combo for?
It is matched to the Toyota Hilux Revo (2016-2026). Please confirm your exact model and year with us before ordering.

What is in the combo?
The RAID Canopy (Hybrid), the Mixed Height LHS 4x4 drawer kit, and the model-specific J-Bracket and wing kit needed for the fitment.

Which side does the sliding drawer sit on?
On this LHS combo the mid-height sliding drawer is on the left and the full-height lockable drawer is on the right. The other combo is the mirror image, so choose the layout that suits how you load.

Can I fit a camping fridge?
The mid-height sliding drawer is described as fridge-ready and is rated to 100kg. Tell us which fridge you have and we will check it suits.

Do I need to buy fitment parts separately?
No. The model-specific J-Bracket and wing kit are included in the combo.
