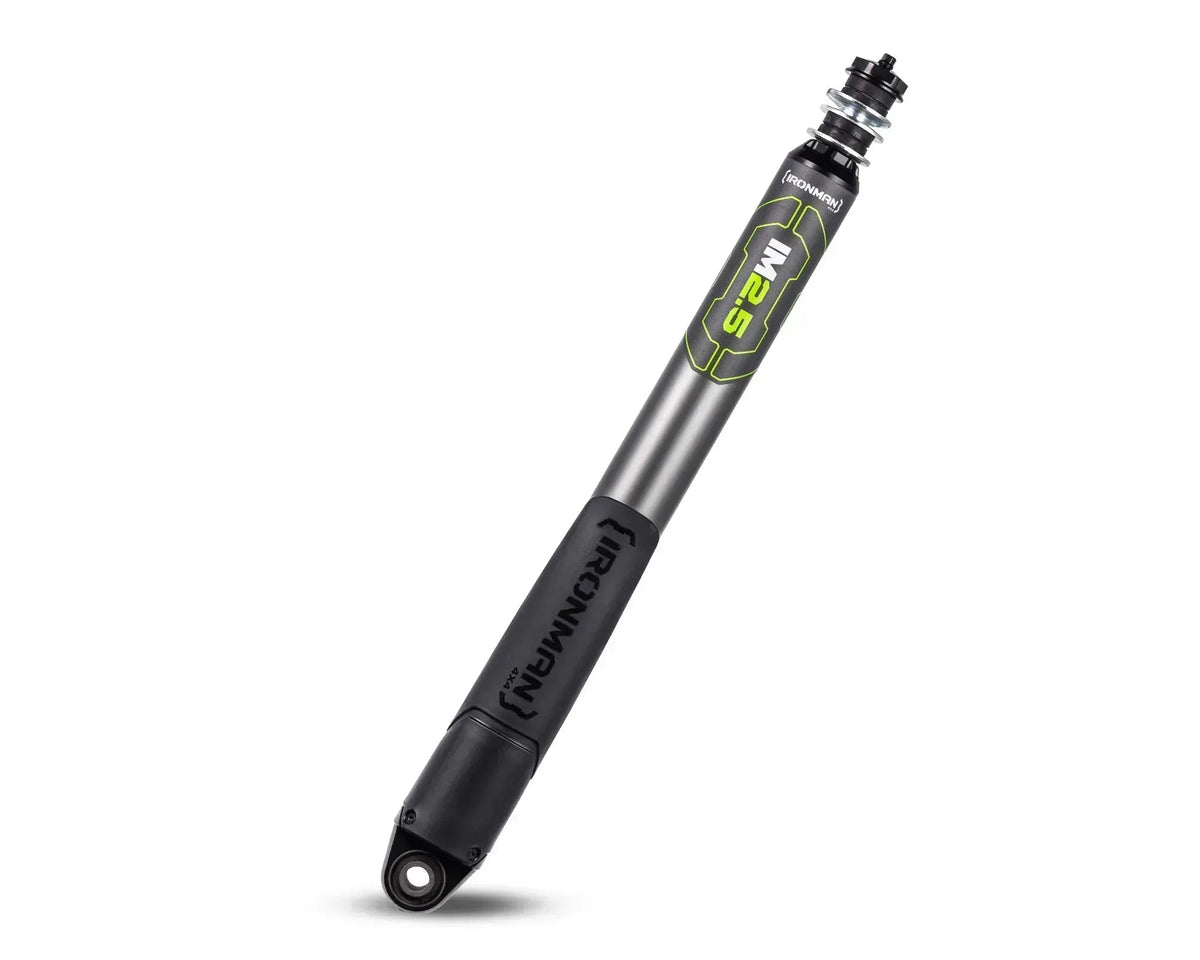

Ironman 4x4 IM2.5 Monotube Shock - Part 73-057-094L

Short Product Summary

Part 73-057-094L is the IM2.5 aluminium monotube shock from Ironman 4x4, sold by part number rather than by vehicle. It is built around a 57mm CNC billet piston and a 20mm hardened steel rod for a smooth ride on and off the tar. Send us your vehicle's make, model, year and engine and we will confirm fit before you order.

Why This Product

Some shocks rely on a remote reservoir; the IM2.5 keeps things simple with an inline internal floating piston and high-pressure 200PSI nitrogen gas. The idea is comfort with as little complication as possible for off-road touring. Because it is sold by part number, we check it against your vehicle before you order.

Key Features

• Aluminium monotube body – extruded aluminium handles heat better than steel, which helps the shock keep its composure
• Type 2 hard anodised finish – a tough exterior finish to handle an off-road beating
• 57mm CNC billet piston – low-speed bleed ports give a smooth, plush ride from town streets to rocky tracks
• 20mm hardened steel rod – protected by a robust dirt shield and NOK seals
• Internal floating piston – an inline design with 200PSI nitrogen gas instead of a remote reservoir
• Upside-down mounting – the 3-4mm thick body sits out of harm's way from stones and knocks
• Vehicle-specific tuning – each shock is tuned for the vehicle it is made for

Ideal For

• Owners with a part number who have been given this number and want us to check it against the vehicle.
• Off-road tourers who spend long days on gravel and rough tracks.
• Drivers wanting a tough finish who like the hard anodised aluminium body and dirt shield.

Local Support from 4Matt Campers

4Matt Campers is an Ironman 4x4 dealer serving Cape Town and beyond. Send us your vehicle details and we will confirm the match and talk you through your options.

Technical Specifications

• Brand: Ironman 4x4
• Part Number: 73-057-094L
• Range: IM2.5
• Type: Monotube shock absorber
• Body: 2.5-inch extruded T6-6061 aircraft grade aluminium, 3-4mm thick
• Finish: Type 2 hard anodised
• Piston: 57mm CNC billet aluminium
• Rod: 20mm hardened steel
• Gas charge: High-pressure (200PSI) nitrogen, internal floating piston
• Dirt shield: Robust dirt shield
• Tuning: Vehicle-specific

Optional Fitment / Upgrade Notes

Part number 73-057-094L is sold by part number rather than by vehicle, so we need your vehicle details to confirm fit.

• Send us your vehicle's make, model, year, engine and cab type and we will confirm whether this part fits.
• If you carry heavy gear or run a bull bar or winch, let us know so we can advise on springs and the right shock.
• We recommend professional fitting, followed by a wheel alignment.
• Tell us whether you are replacing the front or rear shocks, and ask us to confirm fit before you place the order.

Complete Your Setup

Carrying a bull bar or winch up front? See our bumpers and winches, then tell us about it so the suspension is matched to the extra weight. The full suspension collection is here too.

FAQ

Which vehicle does part 73-057-094L fit?
Fit is confirmed from your vehicle rather than assumed. Send us the make, model, year, engine and cab type before you order.

What is the body made of?
A 2.5-inch extruded aluminium monotube body with a Type 2 hard anodised finish, and a 20mm hardened steel rod.

Does it have a remote reservoir?
No, it uses an inline internal floating piston with high-pressure nitrogen gas rather than a remote reservoir.

Should I fit it myself?
We recommend professional fitting followed by a wheel alignment. Ask us if you would like advice on fitting.
