Ironman 4x4 IM2.5 Shock - Volkswagen Amarok 2023+ & more (73-057-886)

Short Product Summary

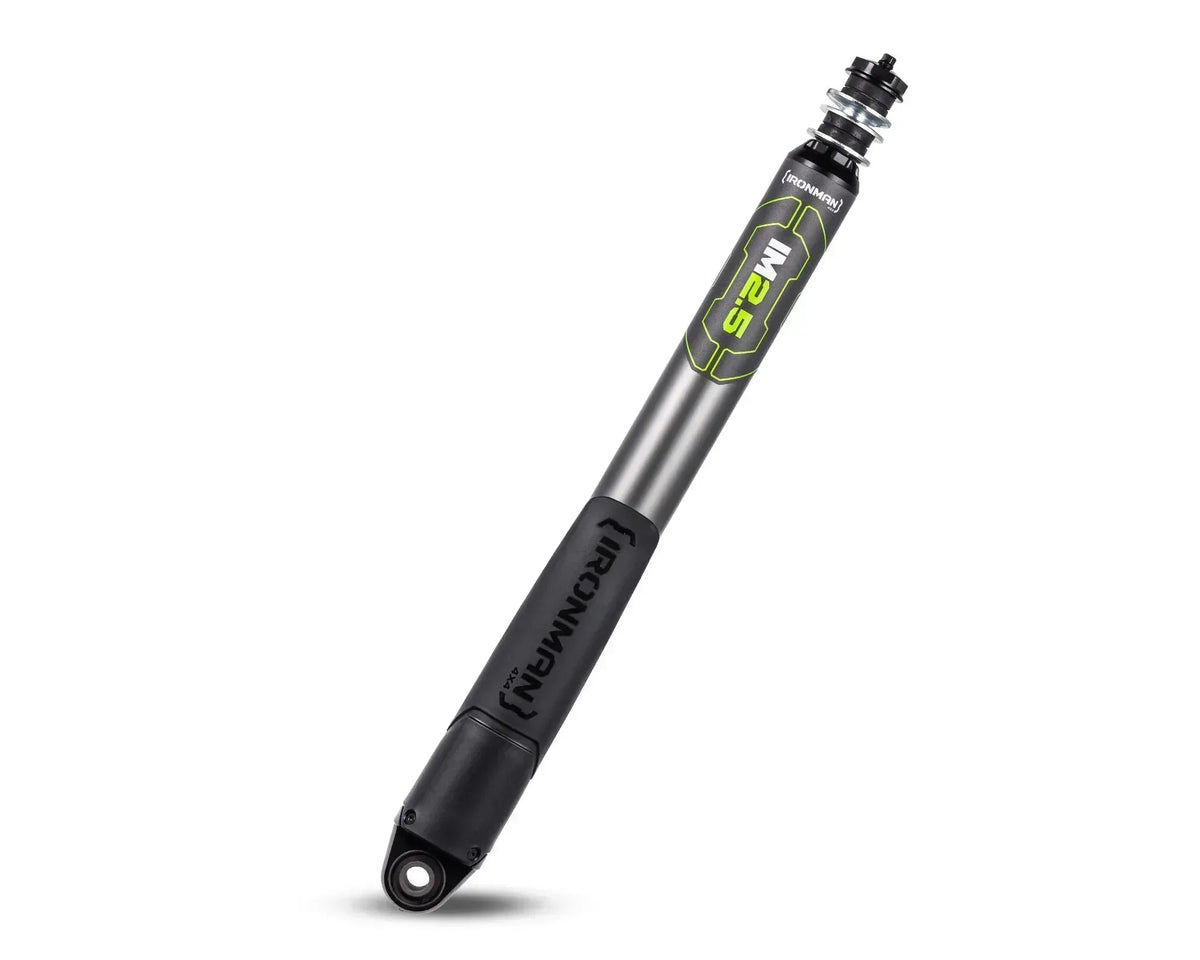

Part 73-057-886 is the IM2.5 aluminium monotube shock from Ironman 4x4, specified for the Volkswagen Amarok 2023+ and the Ford Ranger T6.2 Next Gen 2023+. It is built around a 57mm CNC billet piston and a 20mm hardened steel rod for a smooth ride on and off the tar.

Why This Product

Some shocks rely on a remote reservoir; the IM2.5 keeps things simple with an inline internal floating piston and high-pressure 200PSI nitrogen gas. The idea is comfort with as little complication as possible for off-road touring. For Volkswagen Amarok owners, the point is a part picked for the vehicle rather than a generic fit.

Key Features

• Aluminium monotube body – extruded aluminium handles heat better than steel, which helps the shock keep its composure
• Type 2 hard anodised finish – a tough exterior finish to handle an off-road beating
• 57mm CNC billet piston – low-speed bleed ports give a smooth, plush ride from town streets to rocky tracks
• 20mm hardened steel rod – protected by a robust dirt shield and NOK seals
• Internal floating piston – an inline design with 200PSI nitrogen gas instead of a remote reservoir
• Upside-down mounting – the 3-4mm thick body sits out of harm's way from stones and knocks
• Vehicle-specific tuning – each shock is tuned for the vehicle it is made for

Ideal For

• Volkswagen Amarok and other listed models looking for a shock absorber that is tuned for their own vehicle.
• Off-road tourers wanting all-day comfort on long trips.
• Drivers wanting a tough finish who want a shock protected against stone knocks.

Local Support from 4Matt Campers

4Matt Campers is an Ironman 4x4 dealer serving Cape Town and beyond. Send us your vehicle details and we will confirm the match and talk you through your options.

Technical Specifications

• Brand: Ironman 4x4
• Part Number: 73-057-886
• Range: IM2.5
• Type: Monotube shock absorber
• Body: 2.5-inch extruded T6-6061 aircraft grade aluminium, 3-4mm thick
• Finish: Type 2 hard anodised
• Piston: 57mm CNC billet aluminium
• Rod: 20mm hardened steel
• Gas charge: High-pressure (200PSI) nitrogen, internal floating piston
• Dirt shield: Robust dirt shield
• Tuning: Vehicle-specific
• Fits vehicles: Volkswagen Amarok 2023+; Ford Ranger T6.2 Next Gen 2023+

Optional Fitment / Upgrade Notes

This part is matched to particular vehicles, so the details need to line up before you order.

• Confirm your exact model, year range and engine against the Volkswagen Amarok 2023+ and the Ford Ranger T6.2 Next Gen 2023+.
• Tell us what you carry and tow so we can advise whether the springs and valving suit your load.
• Professional fitting is recommended, and a wheel alignment afterwards is sensible.
• Tell us whether you are replacing the front or rear shocks, and ask us to confirm fit before you place the order.

Complete Your Setup

Carrying a bull bar or winch up front? See our bumpers and winches, then tell us about it so the suspension is matched to the extra weight. The full suspension collection is here too.

FAQ

Which vehicles is part 73-057-886 made for?
It is specified for the Volkswagen Amarok 2023+ and the Ford Ranger T6.2 Next Gen 2023+. Please confirm your exact model, year and engine with us before ordering.

What is the body made of?
A 2.5-inch extruded aluminium monotube body with a Type 2 hard anodised finish, and a 20mm hardened steel rod.

Does it have a remote reservoir?
No, it uses an inline internal floating piston with high-pressure nitrogen gas rather than a remote reservoir.

Should I fit it myself?
We recommend professional fitting followed by a wheel alignment. Ask us if you would like advice on fitting.
