Ironman 4x4 IM2.5 Shock - Mazda BT50 TF 2020-2024 (73-057-698)

Short Product Summary

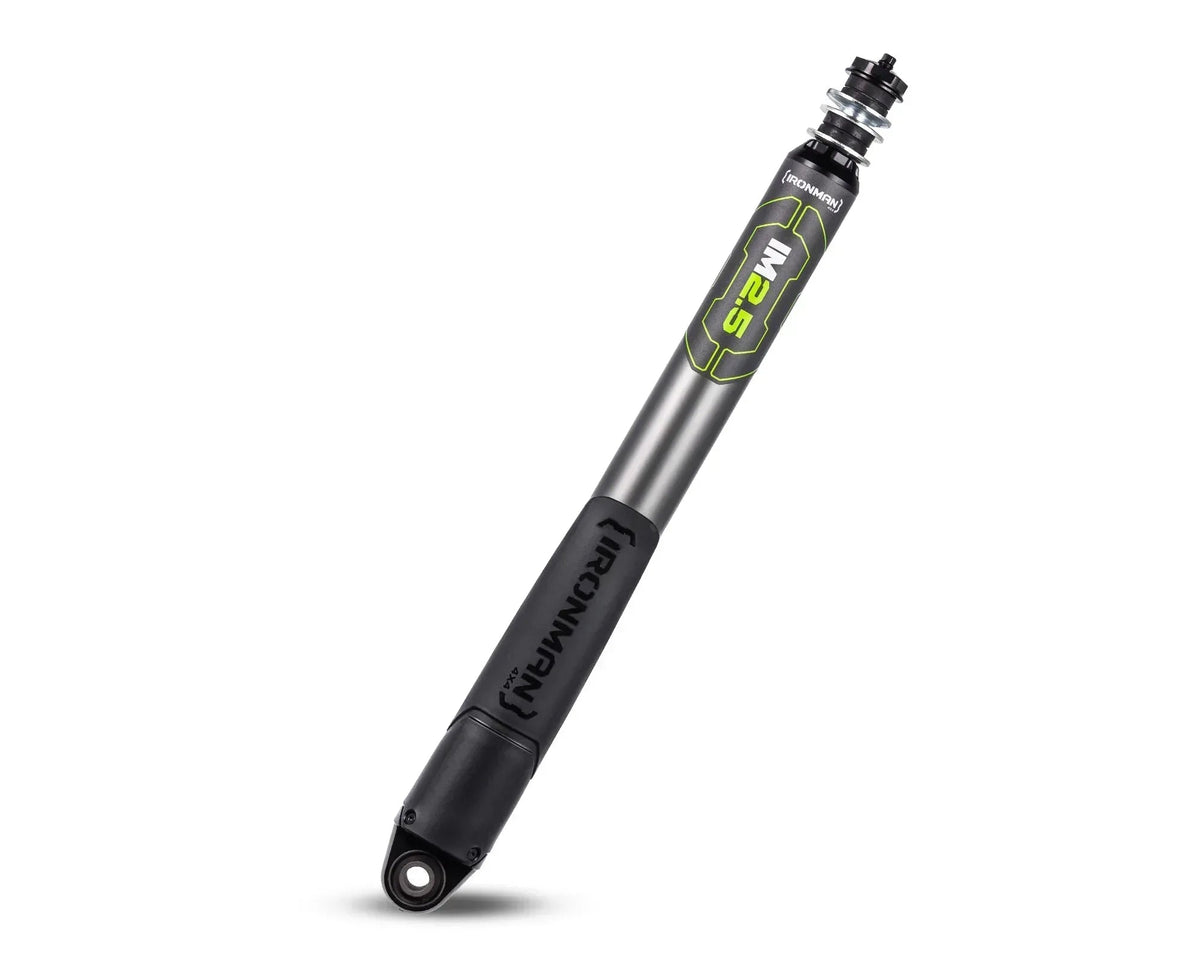

Ironman 4x4 IM2.5 monotube shock absorber, part 73-057-698, specified for the Mazda BT50 TF 2020-2024. The body is 2.5-inch extruded aluminium with a Type 2 hard anodised finish, tuned with ride comfort in mind.

Why This Product

Off-road tourers want a shock that stays comfortable all day and still shrugs off the knocks. The IM2.5 has a 3-4mm thick, hard anodised aluminium body mounted upside down to keep it out of harm's way, plus a dirt shield to protect the rod and seals. If you drive a Mazda BT50 TF, this is the part number to ask about.

Key Features

• Aluminium monotube body – extruded aluminium handles heat better than steel, which helps the shock keep its composure
• Type 2 hard anodised finish – a tough exterior finish to handle an off-road beating
• 57mm CNC billet piston – low-speed bleed ports give a smooth, plush ride from town streets to rocky tracks
• 20mm hardened steel rod – protected by a robust dirt shield and NOK seals
• Internal floating piston – an inline design with 200PSI nitrogen gas instead of a remote reservoir
• Upside-down mounting – the 3-4mm thick body sits out of harm's way from stones and knocks
• Vehicle-specific tuning – each shock is tuned for the vehicle it is made for

Ideal For

• Mazda BT50 TF owners replacing worn or tired shocks with a part made for this vehicle.
• Off-road tourers who spend long days on gravel and rough tracks.
• Drivers wanting a tough finish who like the hard anodised aluminium body and dirt shield.

Local Support from 4Matt Campers

Talk to the Cape Town team at 4Matt Campers and we will check part 73-057-698 against your vehicle before you order, then advise on fitting.

Technical Specifications

• Brand: Ironman 4x4
• Part Number: 73-057-698
• Range: IM2.5
• Type: Monotube shock absorber
• Body: 2.5-inch extruded T6-6061 aircraft grade aluminium, 3-4mm thick
• Finish: Type 2 hard anodised
• Piston: 57mm CNC billet aluminium
• Rod: 20mm hardened steel
• Gas charge: High-pressure (200PSI) nitrogen, internal floating piston
• Dirt shield: Robust dirt shield
• Tuning: Vehicle-specific
• Fits vehicles: Mazda BT50 TF 2020-2024

Optional Fitment / Upgrade Notes

A few quick checks will make sure this is the right part for your vehicle.

• Confirm your exact model, year range and engine against the Mazda BT50 TF 2020-2024.
• If you carry heavy gear or run a bull bar or winch, let us know so we can advise on springs and the right shock.
• We recommend professional fitting, followed by a wheel alignment.
• Tell us whether you are replacing the front or rear shocks, and ask us to confirm fit before you place the order.

Complete Your Setup

If you are also loading the vehicle up, have a look at our canopies, drawer systems and roof racks, and let us know so we can match the suspension to what you carry. More parts are in the suspension collection.

FAQ

Which vehicles is part 73-057-698 made for?
The part is matched to the Mazda BT50 TF 2020-2024. Check your model, year and engine with us first and we will confirm the fit.

What is the body made of?
A 2.5-inch extruded aluminium monotube body with a Type 2 hard anodised finish, and a 20mm hardened steel rod.

Does it have a remote reservoir?
No, it uses an inline internal floating piston with high-pressure nitrogen gas rather than a remote reservoir.

Should I fit it myself?
We recommend professional fitting followed by a wheel alignment. Ask us if you would like advice on fitting.
