Ironman 4x4 IM2.5 Shock - Toyota Hilux Revo 2016+ (73-057-081)

Short Product Summary

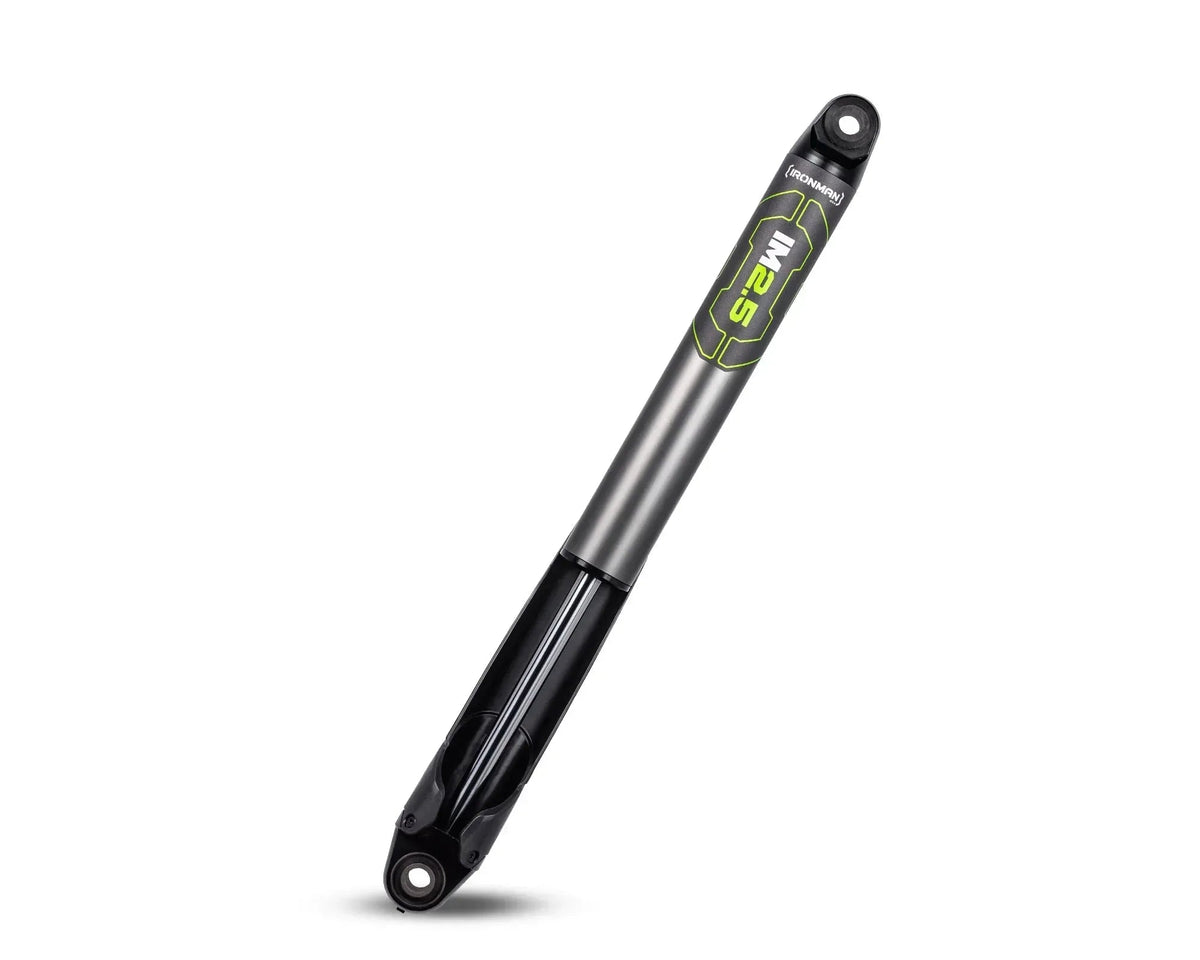

This Ironman 4x4 IM2.5 shock absorber (part 73-057-081) is specified for the Toyota Hilux Revo 2016+. Its 2.5-inch aluminium monotube body, internal floating piston and vehicle-specific tuning are aimed at all-day comfort.

Why This Product

Heat is a big problem for shock absorbers on long, rough tracks, and aluminium manages it better than steel. The IM2.5 uses an extruded aluminium monotube body and a large 57mm piston that allows fine valving, aimed at a smooth, plush ride from suburban roads to rocky high-country tracks. On a Toyota Hilux Revo, the part number matters, because each shock is tuned for its own vehicle.

Key Features

• Aluminium monotube body – extruded aluminium handles heat better than steel, which helps the shock keep its composure
• Type 2 hard anodised finish – a tough exterior finish to handle an off-road beating
• 57mm CNC billet piston – low-speed bleed ports give a smooth, plush ride from town streets to rocky tracks
• 20mm hardened steel rod – protected by a robust dirt shield and NOK seals
• Internal floating piston – an inline design with 200PSI nitrogen gas instead of a remote reservoir
• Upside-down mounting – the 3-4mm thick body sits out of harm's way from stones and knocks
• Vehicle-specific tuning – each shock is tuned for the vehicle it is made for

Ideal For

• Toyota Hilux Revo owners who want a replacement that is matched to their vehicle.
• Off-road tourers wanting all-day comfort on long trips.
• Drivers wanting a tough finish who want a shock protected against stone knocks.

Local Support from 4Matt Campers

Based in Cape Town, we help owners choose Ironman 4x4 suspension parts that suit their vehicle and load, and we can advise on fitting.

Technical Specifications

• Brand: Ironman 4x4
• Part Number: 73-057-081
• Range: IM2.5
• Type: Monotube shock absorber
• Body: 2.5-inch extruded T6-6061 aircraft grade aluminium, 3-4mm thick
• Finish: Type 2 hard anodised
• Piston: 57mm CNC billet aluminium
• Rod: 20mm hardened steel
• Gas charge: High-pressure (200PSI) nitrogen, internal floating piston
• Dirt shield: Robust dirt shield
• Tuning: Vehicle-specific
• Fits vehicles: Toyota Hilux Revo 2021+; Toyota Hilux Revo 2018-2020; Toyota Hilux Revo 2016-2018

Optional Fitment / Upgrade Notes

Because the tuning is vehicle-specific, the part number and the vehicle need to match.

• Confirm your exact model, year range and engine against the Toyota Hilux Revo 2016+.
• Tell us what you carry and tow so we can advise whether the springs and valving suit your load.
• Professional fitting is recommended, and a wheel alignment afterwards is sensible.
• Tell us whether you are replacing the front or rear shocks, and ask us to confirm fit before you place the order.

Complete Your Setup

Browse more suspension parts and the wider Ironman 4x4 range, or look through our 4x4 parts and accessories while you plan the rest of the build.

FAQ

Which vehicles is part 73-057-081 made for?
It is specified for the Toyota Hilux Revo 2016+. Please confirm your exact model, year and engine with us before ordering.

What is the body made of?
A 2.5-inch extruded aluminium monotube body with a Type 2 hard anodised finish, and a 20mm hardened steel rod.

Does it have a remote reservoir?
No, it uses an inline internal floating piston with high-pressure nitrogen gas rather than a remote reservoir.

Should I fit it myself?
We recommend professional fitting followed by a wheel alignment. Ask us if you would like advice on fitting.
