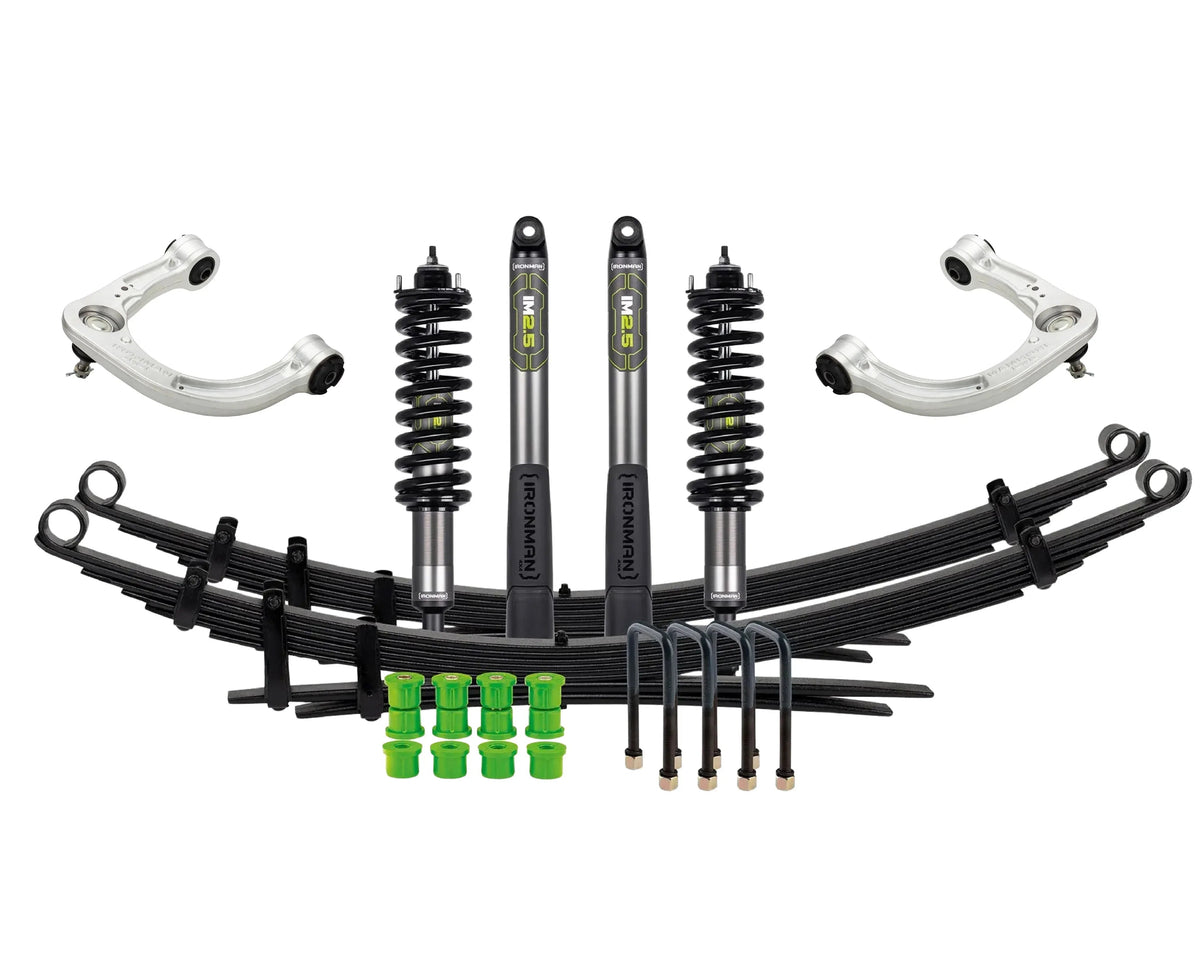

Ironman 4x4 IM2.5 Suspension Kit, Medium - Toyota Hilux Revo 2016+

Short Product Summary

This Ironman 4x4 IM2.5 kit, part TOY077BKM, is listed for the Toyota Hilux Revo 2016 onwards and carries the medium rating. It is built around aluminium monotube shock absorbers, about 30% lighter than a twin-tube steel design.

Why This Product

If you want more from the suspension on your Hilux Revo, the IM2.5 is Ironman's aluminium monotube option. The kit is offered in several ratings, and the medium rating on this one is what you choose it by, so match it to how the vehicle is loaded.

Key Features

• Aircraft-grade aluminium body – the 6061-T6 monotube is about 30% lighter than a twin-tube steel shock
• Heat management – aluminium conducts heat about four times as well as steel, so the shock can work harder for longer without losing performance
• CNC ported billet piston – precision channelling allows tuning that softens small bumps
• Nitrogen and floating piston – an internal floating piston with NOK seals keeps 200 PSI nitrogen apart from the Fuchs hydraulic oil
• Anodised tube, 3-4mm wall – Type 2 anodising protects the shock tube
• Upside-down mounting – keeps the body high and away from rocks and debris, with a 20mm hardened steel rod pointing down under a dirt shield
• Upper Control Arms included – supplied as standard, so the suspension geometry is right from the day of fitting

Ideal For

• Owners of the Toyota Hilux Revo 2016 onwards who want an aluminium monotube suspension upgrade for their vehicle
• Drivers with a canopy, drawers or camping gear who want the rating chosen to suit what they carry
• Off-road drivers who work the suspension hard and want a shock built to shed heat
• Workshops fitting the vehicle that want one part number for the kit

Local Support from 4Matt Campers

Talk to the 4Matt Campers team in Cape Town about the medium rating and the load you carry; we would rather check first than have you order the wrong kit.

Technical Specifications

• Brand: Ironman 4x4
• Part Number: TOY077BKM
• Product type: Suspension kit with IM2.5 monotube shocks
• Spring rating: Medium
• Shock body: Monotube, aircraft-grade 6061-T6 aluminium, Type 2 anodised
• Tube wall thickness: 3-4mm
• Piston rod: 20mm hardened steel
• Piston: CNC ported billet aluminium with PTFE band
• Gas: 200 PSI nitrogen, separated from the oil by a floating piston
• Weight: About 30% lighter than a twin-tube steel shock absorber
• Fits vehicles: Toyota Hilux Revo 2021+; Toyota Hilux Revo 2018-2020; Toyota Hilux Revo 2016-2018

What's Included

• Upper Control Arms (included as standard with the kit)

Optional Fitment / Upgrade Notes

A suspension kit is vehicle-specific, so run through these checks before ordering TOY077BKM.

• Compare your exact model, year, engine and cab or body type with the vehicles Ironman lists for part TOY077BKM, which are the Toyota Hilux Revo 2016 onwards.
• Tell us what you carry (canopy, drawers, water, gear) so we can help you decide whether the medium rating is the right one.
• Professional fitting is recommended, followed by a wheel alignment.
• If your vehicle has been modified, ask us before ordering so we can check the kit still suits.

Complete Your Setup

Planning more than one upgrade? Start with our suspension parts, then check the Ironman 4x4 range and our accessories for the rest of the build.

FAQ

Which vehicles is part TOY077BKM for?
It is listed for the Toyota Hilux Revo 2016 onwards. If your vehicle is close but not identical, ask us to confirm the match first.

What does the Medium rating mean?
It is the spring rating the kit is offered in. Ironman offers its kits in several ratings, such as Light, Medium and Heavy, and it is a rating rather than a payload figure. Tell us what you carry and we will help you choose.

What comes in the kit?
Upper Control Arms are included as standard with this kit. Ask us to confirm the full contents for your vehicle before you order.

Should the kit be fitted professionally?
Suspension work is best left to a workshop that does it every day, and a wheel alignment afterwards is a good idea.

Will it lift my vehicle?
Ironman does not quote a lift height for this kit, so we cannot promise one. Ask us what to expect on your vehicle.
