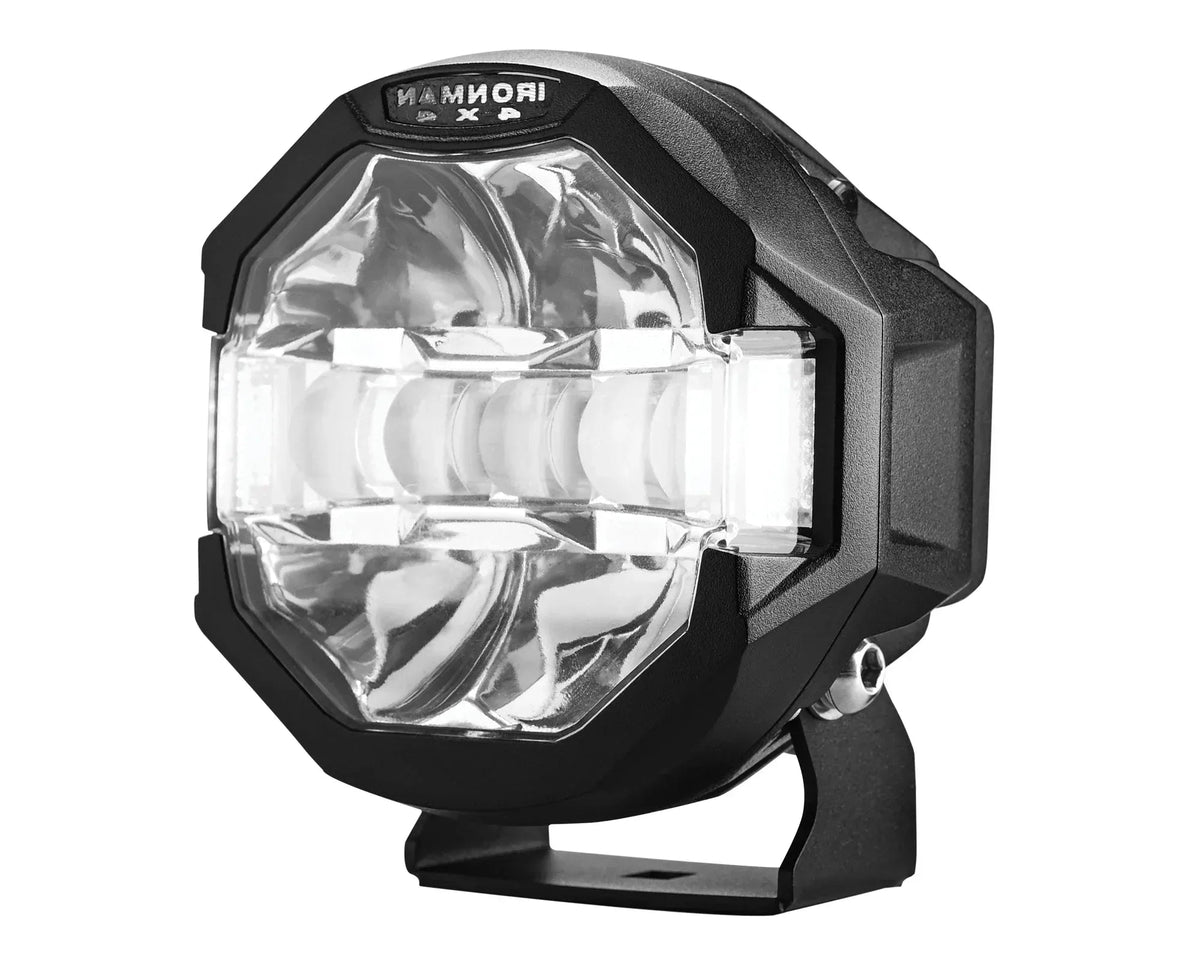

Ironman 4x4 Scope 5" LED Driving Light, Combo Beam

Short Product Summary

The Scope 5" is a compact Ironman 4x4 LED driving light in a combo beam. It pairs a hooded reflector with TIR optics and OSRAM LED chips, draws 42W and is sold as a single light.

Why This Product

A combo beam blends flood and spot light. Ironman positions it for winding bush and mountain roads, where a broader view at closer range helps more than pure reach.

Key Features

• Combo beam – blends flood and spot light for a broader view at closer range
• Hooded reflector plus TIR optics – two lighting technologies working together to get more useful output from the LEDs
• OSRAM LEDs on a cast aluminium housing – the chips sit directly on the housing to shed heat, which also lets the body stay slim
• Position lights and lit logo – two position lights give a daytime running light effect and the logo is illuminated
• IP68 and IP69K rated – built with dust and water ingress protection in mind
• Deutsch 3 pin connector – a proper plug-in connection for the wiring loom
• 10-32 Vdc, 42W – a wide voltage window for the 42W output

Ideal For

• Bush and mountain drivers who want a broader picture on winding roads
• 4x4 owners adding auxiliary lights who want a 5 inch combo light for the front of the vehicle
• Drivers building a mixed setup who plan to run a combo light alongside a spot light
• Anyone short on mounting space the slim cast body can go in more places than a bulkier light

Local Support from 4Matt Campers

4Matt Campers is an Ironman 4x4 dealer that supplies customers across South Africa. Send us your vehicle details and we will confirm the mounting and wiring you need before you order.

Technical Specifications

• Brand: Ironman 4x4
• Part Number: IDL0501C
• Product type: LED driving light, single light
• Size: 5 inch
• Beam pattern: Combo (this listing)
• Power: 42W
• Voltage: 10-32 Vdc
• LED chip: OSRAM
• Lumens: 4,400
• Colour temperature: 5,700K
• Operating temperature: -40 °C to +85 °C
• Connector: Deutsch 3 pin
• IP rating: IP68 / IP69K
• 1 lux distance: 293m
• Dimensions: Width 113mm, depth 90mm, height 114mm
• Certifications: R112, R10, CE, RoHS
• Quantity per box: 1

Optional Fitment / Upgrade Notes

This light is not tied to one vehicle, so a good result comes down to the mounting position and the wiring.

• Allow for a body 113mm wide, 90mm deep and 114mm high when you pick the mounting position.
• Confirm your bull bar, roof rack or bracket has room and a suitable mounting point before you drill anything.
• Wire it through a suitable fuse, relay and switch. We recommend professional fitting, especially for the wiring.
• Send us your vehicle and the mounting spot you have in mind and we will help you check that it suits.

Complete Your Setup

Pair it with a suitable mounting point such as a bull bars and bumpers or a roof racks, and browse the rest of our off-road lights if you want a matching set. For switches, relays and wiring, see the electrical accessories.

FAQ

What beam pattern is this Scope 5 inch light?
This listing (part IDL0501C) is the combo beam. The spot beam version has its own part number, so ask us if you want to compare the two.

Is it sold as a pair?
No, it is a single light. Buy two for a matched pair, or ask us about the Scope kits.

What is the voltage range of this light?
Ironman lists 10-32 Vdc and 42W for it.

Do I need to fit it myself?
We recommend professional fitting, particularly for the wiring, relay and fuse.

What warranty does it carry?
Ask us about warranty terms for this light.
