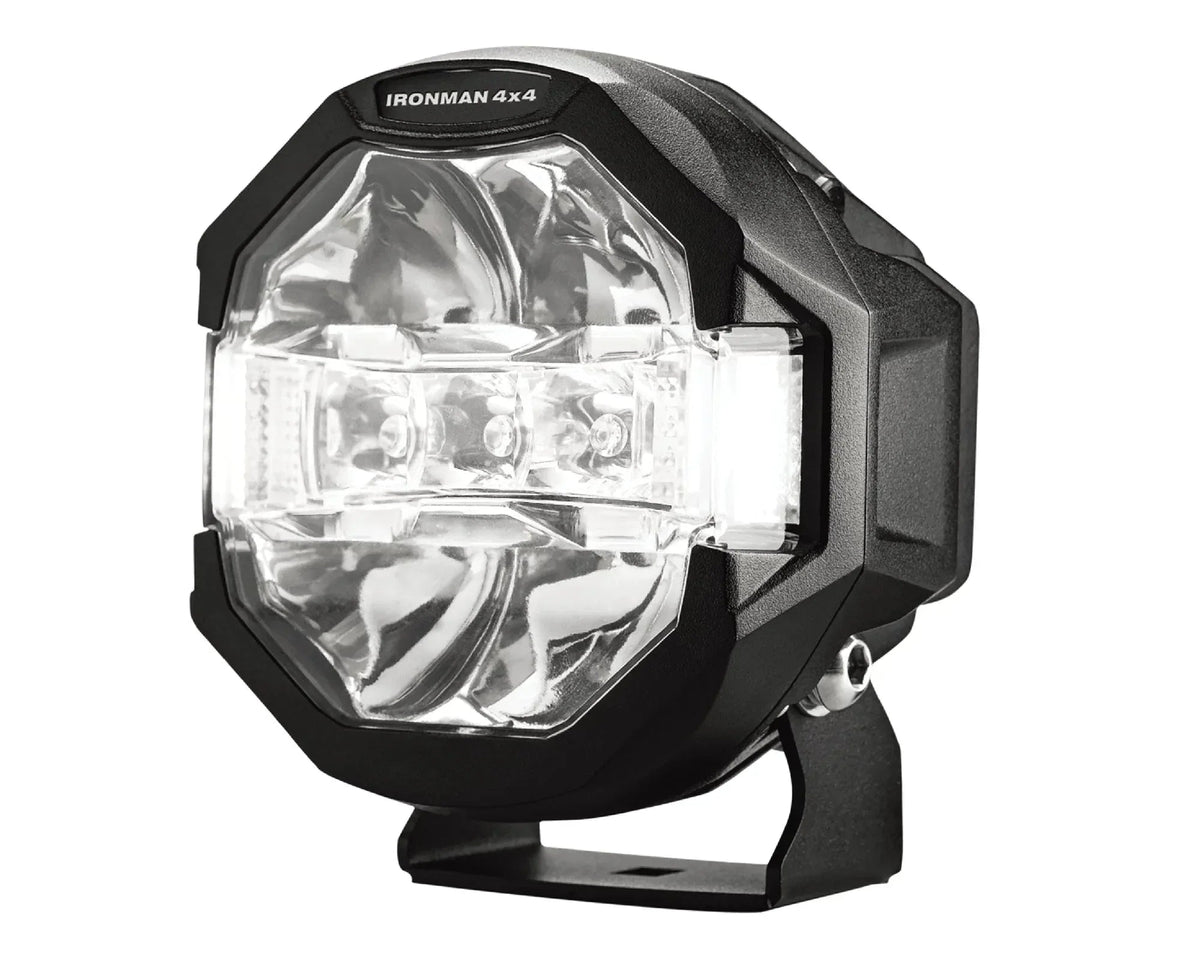

Ironman 4x4 Scope 5" LED Driving Light, Spot Beam

Short Product Summary

This is the spot-beam version of the Ironman 4x4 Scope 5" driving light: OSRAM LEDs, a hooded reflector and TIR optics in a cast aluminium housing, rated at 42W and supplied one per box.

Why This Product

When the road is long and open, reach matters. The spot pattern starts narrow and opens out with distance, which suits driving on remote tar and straight gravel roads.

Key Features

• Spot beam – concentrates the output down the road for long-distance vision
• Hooded reflector plus TIR optics – two lighting technologies working together to get more useful output from the LEDs
• OSRAM LEDs on a cast aluminium housing – the chips sit directly on the housing to shed heat, which also lets the body stay slim
• Position lights and lit logo – two position lights give a daytime running light effect and the logo is illuminated
• IP68 and IP69K rated – built with dust and water ingress protection in mind
• Deutsch 3 pin connector – a proper plug-in connection for the wiring loom
• 10-32 Vdc, 42W – a wide voltage window for the 42W output

Ideal For

• Long-distance drivers who cover remote highways and straight open roads
• 4x4 owners adding auxiliary lights who want a 5 inch spot light for the front of the vehicle
• Drivers building a mixed setup who plan to run a spot light alongside a combo light
• Anyone short on mounting space the slim cast body can go in more places than a bulkier light

Local Support from 4Matt Campers

We supply Ironman 4x4 products to drivers across South Africa. Tell us about your vehicle and we will check the mounting and wiring you need for you first.

Technical Specifications

• Brand: Ironman 4x4
• Part Number: IDL0501S
• Product type: LED driving light, single light
• Size: 5 inch
• Beam pattern: Spot (this listing)
• Power: 42W
• Voltage: 10-32 Vdc
• LED chip: OSRAM
• Lumens: 4,400
• Colour temperature: 5,700K
• Operating temperature: -40 °C to +85 °C
• Connector: Deutsch 3 pin
• IP rating: IP68 / IP69K
• 1 lux distance: 317m
• Dimensions: Width 113mm, depth 90mm, height 114mm
• Certifications: R112, R10, CE, RoHS
• Quantity per box: 1

Optional Fitment / Upgrade Notes

There is no vehicle list for this part. What matters is where you mount it and how it is wired.

• Allow for a body 113mm wide, 90mm deep and 114mm high when you pick the mounting position.
• Confirm your bull bar, roof rack or bracket has room and a suitable mounting point before you drill anything.
• Wire it through a suitable fuse, relay and switch. We recommend professional fitting, especially for the wiring.
• Send us your vehicle and the mounting spot you have in mind and we will help you check that it suits.

Complete Your Setup

Think about where it will mount first: our bull bars and bumpers and roof racks both give options. The wiring side is covered in our electrical accessories, and there are more off-road lights to compare.

FAQ

What beam pattern is this Scope 5 inch light?
This listing (part IDL0501S) is the spot beam. The combo beam version has its own part number, so ask us if you want to compare the two.

Is it sold as a pair?
No, it is a single light. Buy two for a matched pair, or ask us about the Scope kits.

What is the voltage range of this light?
Ironman lists 10-32 Vdc and 42W for it.

Do I need to fit it myself?
We recommend professional fitting, particularly for the wiring, relay and fuse.

What warranty does it carry?
Ask us about warranty terms for this light.
