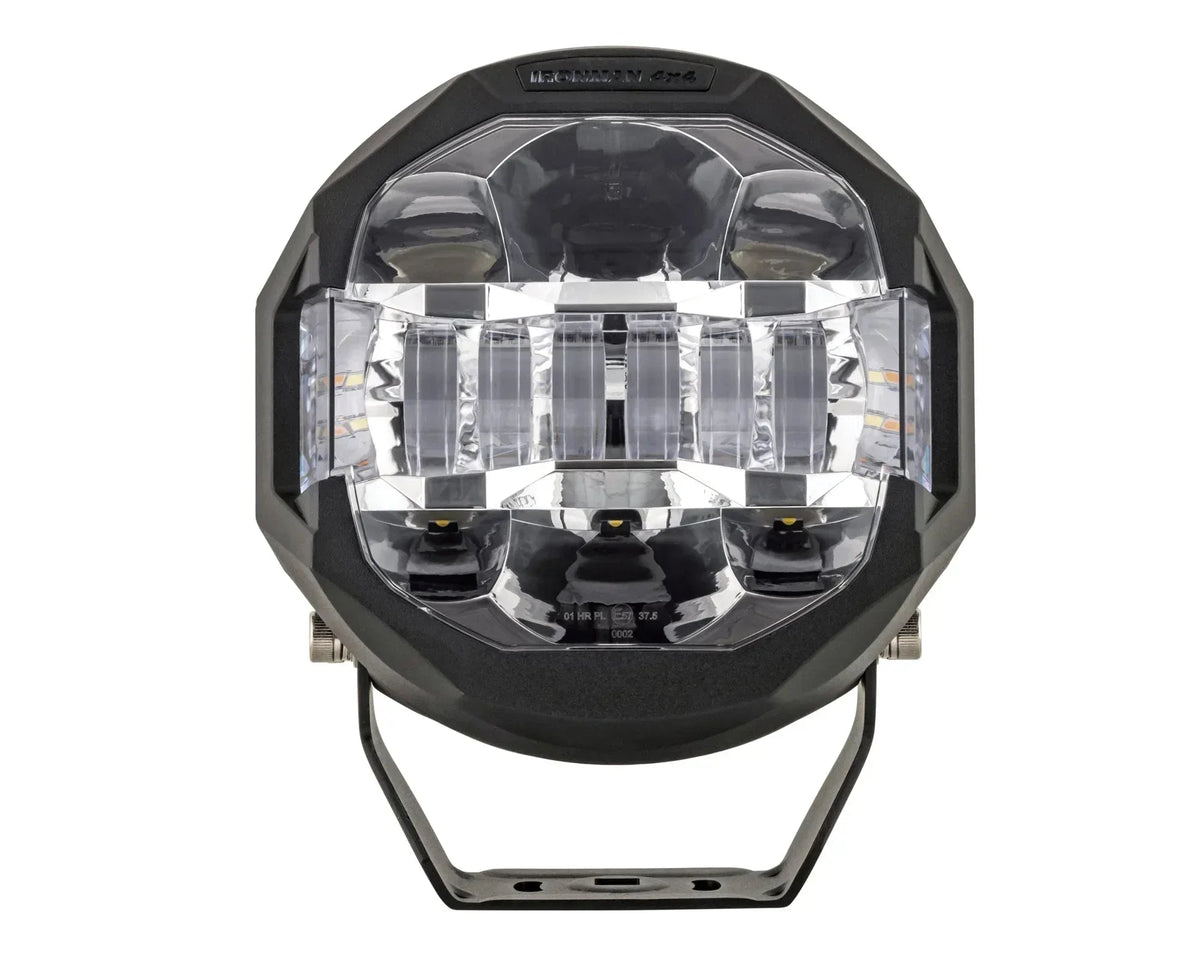

Ironman 4x4 Scope 7" LED Driving Light, Combo Beam

Short Product Summary

The Scope 7" is the smaller sibling in the Ironman 4x4 Scope driving light range, here in a combo beam. OSRAM LEDs sit behind hooded reflectors and a TIR lens, with a cast aluminium housing and IP68 protection.

Why This Product

A combo beam blends flood and spot light. Ironman positions it for winding bush and mountain roads, where a broader view at closer range helps more than pure reach.

Key Features

• Combo beam – blends flood and spot light for a broader view at closer range
• Hooded reflectors and TIR lens – reflectors along the top and bottom work with a total internal reflection optic instead of a plain reflector cup
• Side shooters as position lights – diffused side optics light the immediate front corners and can run as position lights when the main light is off
• Heat kept under control – the LEDs mount straight to the cast housing, which sheds heat during long use
• IP68 with a case breather – the breather lets hot air out to limit condensation while keeping the seal
• Cast aluminium housing, stainless mount – powder-coated housing with centre and side pinning bolts and no front-facing screws to hold moisture
• 5,700K colour – a daylight-like colour that is easier on the eyes

Ideal For

• Bush and mountain drivers who want a broader picture on winding roads
• 4x4 owners adding auxiliary lights who want a 7 inch combo light for the front of the vehicle
• Drivers building a mixed setup who plan to run a combo light alongside a spot light
• Owners with a set mounting area in mind the 7 inch size is easy to plan around, with the body dimensions listed below

Local Support from 4Matt Campers

4Matt Campers is an Ironman 4x4 dealer that supplies customers across South Africa. Send us your vehicle details and we will confirm the mounting and wiring you need before you order.

Technical Specifications

• Brand: Ironman 4x4
• Part Number: IDL0701C
• Product type: LED driving light
• Size: 7 inch
• Beam pattern: Combo (this listing)
• LEDs: OSRAM
• LED configuration: 9 x 9W and 6 x 4.5W high output LEDs
• Raw lumens: Single: 8,100 | Pair: 16,200
• Effective lumens: Single: 7,200 | Pair: 14,400
• Lumen efficiency: 89%
• 1 lux rating: Single: 550m | Pair: 778m
• Lux at 10m: 1,898
• Max power: 82.5W
• Current draw: ~8.4 amps at 12V
• Colour temperature: 5,700K
• Dimmable: No
• IP rating: IP68
• Light dimensions: 178mm long x 178mm wide x 98mm deep
• Height including mount: 206mm
• Fitting time: 1hr (not vehicle specific)

Optional Fitment / Upgrade Notes

This light is not tied to one vehicle, so a good result comes down to the mounting position and the wiring.

• The light body measures 178mm across and stands 206mm high including the mount, so check the space first.
• Confirm your bull bar, roof rack or bracket has room and a suitable mounting point before you drill anything.
• Wire it through a suitable fuse, relay and switch. We recommend professional fitting, especially for the wiring.
• Send us your vehicle and the mounting spot you have in mind and we will help you check that it suits.

Complete Your Setup

Pair it with a suitable mounting point such as a bull bars and bumpers or a roof racks, and browse the rest of our off-road lights if you want a matching set. For switches, relays and wiring, see the electrical accessories.

FAQ

What beam pattern is this Scope 7 inch light?
This listing (part IDL0701C) is the combo beam. The spot beam version has its own part number, so ask us if you want to compare the two.

Is it sold as a pair?
No, it is a single light. Buy two for a matched pair, or ask us about the Scope kits.

What is the power draw of this light?
Ironman lists a maximum power of 82.5W and about 8.4 amps at 12V.

Can the light be dimmed?
No, Ironman lists this light as not dimmable.

How long does fitting take?
Ironman lists roughly an hour for fitting. We still recommend professional fitting for the wiring.
