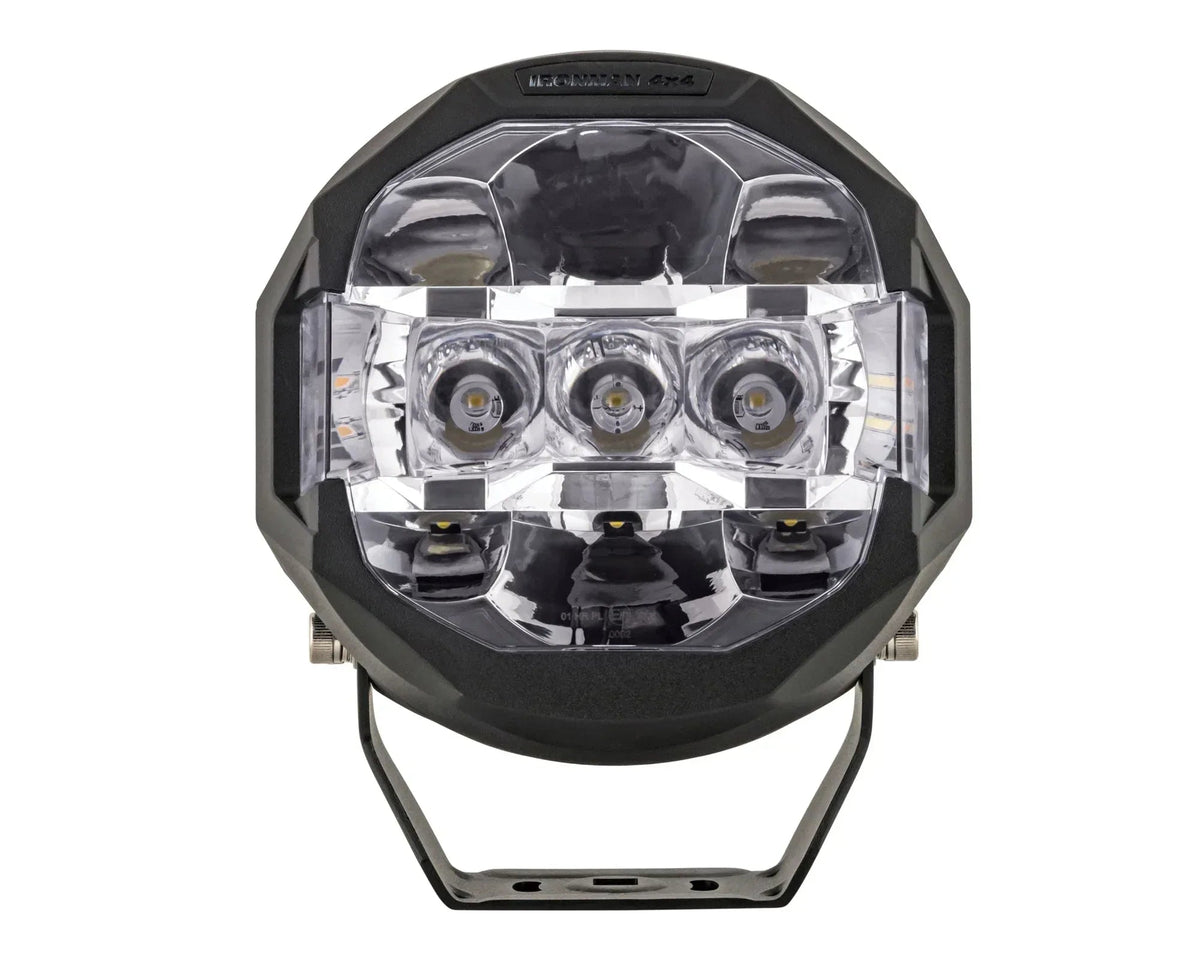

Ironman 4x4 Scope 7" LED Driving Light, Spot Beam

Short Product Summary

Ironman 4x4 built the Scope 7" for drivers who want a compact light with real output. This one is the spot-beam light, with hooded reflectors, a TIR lens and side shooters that double as position lights.

Why This Product

When the road is long and open, reach matters. The spot pattern starts narrow and opens out with distance, which suits driving on remote tar and straight gravel roads.

Key Features

• Spot beam – concentrates the output down the road for long-distance vision
• Hooded reflectors and TIR lens – reflectors along the top and bottom work with a total internal reflection optic instead of a plain reflector cup
• Side shooters as position lights – diffused side optics light the immediate front corners and can run as position lights when the main light is off
• Heat kept under control – the LEDs mount straight to the cast housing, which sheds heat during long use
• IP68 with a case breather – the breather lets hot air out to limit condensation while keeping the seal
• Cast aluminium housing, stainless mount – powder-coated housing with centre and side pinning bolts and no front-facing screws to hold moisture
• 5,700K colour – a daylight-like colour that is easier on the eyes

Ideal For

• Long-distance drivers who cover remote highways and straight open roads
• 4x4 owners adding auxiliary lights who want a 7 inch spot light for the front of the vehicle
• Drivers building a mixed setup who plan to run a spot light alongside a combo light
• Owners with a set mounting area in mind the 7 inch size is easy to plan around, with the body dimensions listed below

Local Support from 4Matt Campers

We supply Ironman 4x4 products to drivers across South Africa. Tell us about your vehicle and we will check the mounting and wiring you need for you first.

Technical Specifications

• Brand: Ironman 4x4
• Part Number: IDL0701S
• Product type: LED driving light
• Size: 7 inch
• Beam pattern: Spot (this listing)
• LEDs: OSRAM
• LED configuration: 9 x 9W high output LEDs
• Raw lumens: Single: 8,100 | Pair: 16,200
• Effective lumens: Single: 7,200 | Pair: 14,400
• Lumen efficiency: 89%
• 1 lux rating: Single: 700m | Pair: 990m
• Lux at 10m: 1,957
• Max power: 82.5W
• Current draw: ~8.4 amps at 12V
• Colour temperature: 5,700K
• Dimmable: No
• IP rating: IP68
• Light dimensions: 178mm long x 178mm wide x 98mm deep
• Height including mount: 206mm
• Fitting time: 1hr (not vehicle specific)

Optional Fitment / Upgrade Notes

There is no vehicle list for this part. What matters is where you mount it and how it is wired.

• The light body measures 178mm across and stands 206mm high including the mount, so check the space first.
• Confirm your bull bar, roof rack or bracket has room and a suitable mounting point before you drill anything.
• Wire it through a suitable fuse, relay and switch. We recommend professional fitting, especially for the wiring.
• Send us your vehicle and the mounting spot you have in mind and we will help you check that it suits.

Complete Your Setup

Think about where it will mount first: our bull bars and bumpers and roof racks both give options. The wiring side is covered in our electrical accessories, and there are more off-road lights to compare.

FAQ

What beam pattern is this Scope 7 inch light?
This listing (part IDL0701S) is the spot beam. The combo beam version has its own part number, so ask us if you want to compare the two.

Is it sold as a pair?
No, it is a single light. Buy two for a matched pair, or ask us about the Scope kits.

What is the power draw of this light?
Ironman lists a maximum power of 82.5W and about 8.4 amps at 12V.

Can the light be dimmed?
No, Ironman lists this light as not dimmable.

How long does fitting take?
Ironman lists roughly an hour for fitting. We still recommend professional fitting for the wiring.
