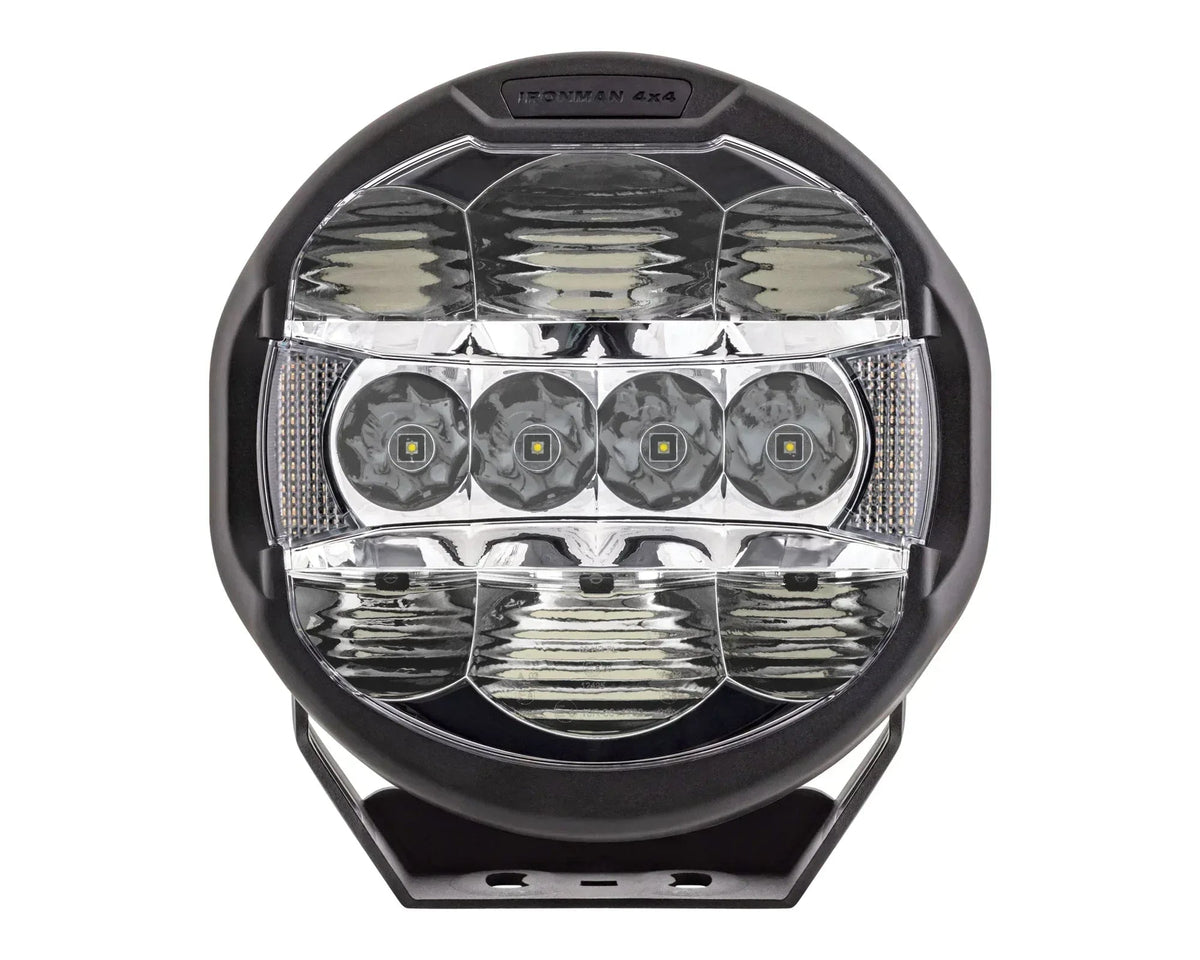

Ironman 4x4 Scope 9" LED Driving Light, Spot Beam

Short Product Summary

This Ironman 4x4 Scope 9" is the spot-beam light. It combines hooded reflectors, Luminus LEDs, side shooters and a dimming function in one housing.

Why This Product

When the road is long and open, reach matters. The spot pattern starts narrow and opens out with distance, which suits driving on remote tar and straight gravel roads.

Key Features

• Spot beam – concentrates the output down the road for long-distance vision
• Hooded reflectors – the LED shines straight into the reflector, so less light is lost than with a plain reflector cup
• Dimmable – one button dials the light down and cuts power draw by 80%
• Side shooters – diffused side optics cover the immediate front corners of the vehicle
• Luminus LEDs – a 6x 12W and 4x 10W LED layout
• IP68 rated – built with dust and water ingress protection in mind
• 5,700K colour – a daylight-like colour temperature

Ideal For

• Long-distance drivers who cover remote highways and straight open roads
• 4x4 owners adding auxiliary lights who want a 9 inch spot light for the front of the vehicle
• Drivers building a mixed setup who plan to run a spot light alongside a combo light
• Owners with a set mounting area in mind the 9 inch size is easy to plan around, with the body dimensions listed below

Local Support from 4Matt Campers

We supply Ironman 4x4 products to drivers across South Africa. Tell us about your vehicle and we will check the mounting and wiring you need for you first.

Technical Specifications

• Brand: Ironman 4x4
• Part Number: IDL0901S
• Product type: LED driving light
• Size: 9 inch
• Beam pattern: Spot (this listing)
• LEDs: Luminus
• LED configuration: 6x 12W and 4x 10W high output LEDs
• Raw lumens: Single: 16,000 | Pair: 32,000
• Effective lumens: Single: 10,800 | Pair: 21,600
• Lumen efficiency: 67.5%
• 1 lux rating: Single: 1,250m | Pair: 1,768m
• Lux at 10m: 7,400
• Max power: 113.5W
• Current draw: ~12.6 amps at 12V
• Colour temperature: 5,700K
• Dimmable: Yes
• IP rating: IP68
• Light dimensions: 227mm long x 227mm wide x 100mm deep
• Height including mount: 245mm
• Fitting time: 1hr (not vehicle specific)

Optional Fitment / Upgrade Notes

There is no vehicle list for this part. What matters is where you mount it and how it is wired.

• The light body measures 227mm across and stands 245mm high including the mount, so check the space first.
• Confirm your bull bar, roof rack or bracket has room and a suitable mounting point before you drill anything.
• Wire it through a suitable fuse, relay and switch. We recommend professional fitting, especially for the wiring.
• Send us your vehicle and the mounting spot you have in mind and we will help you check that it suits.

Complete Your Setup

Think about where it will mount first: our bull bars and bumpers and roof racks both give options. The wiring side is covered in our electrical accessories, and there are more off-road lights to compare.

FAQ

What beam pattern is this Scope 9 inch light?
This listing (part IDL0901S) is the spot beam. The combo beam version has its own part number, so ask us if you want to compare the two.

Is it sold as a pair?
No, it is a single light. Buy two for a matched pair, or ask us about the Scope kits.

What is the power draw of this light?
Ironman lists a maximum power of 113.5W and about 12.6 amps at 12V.

Can the light be dimmed?
Yes, it has a dimming function that cuts power draw by 80%.

How long does fitting take?
Ironman lists roughly an hour for fitting. We still recommend professional fitting for the wiring.
