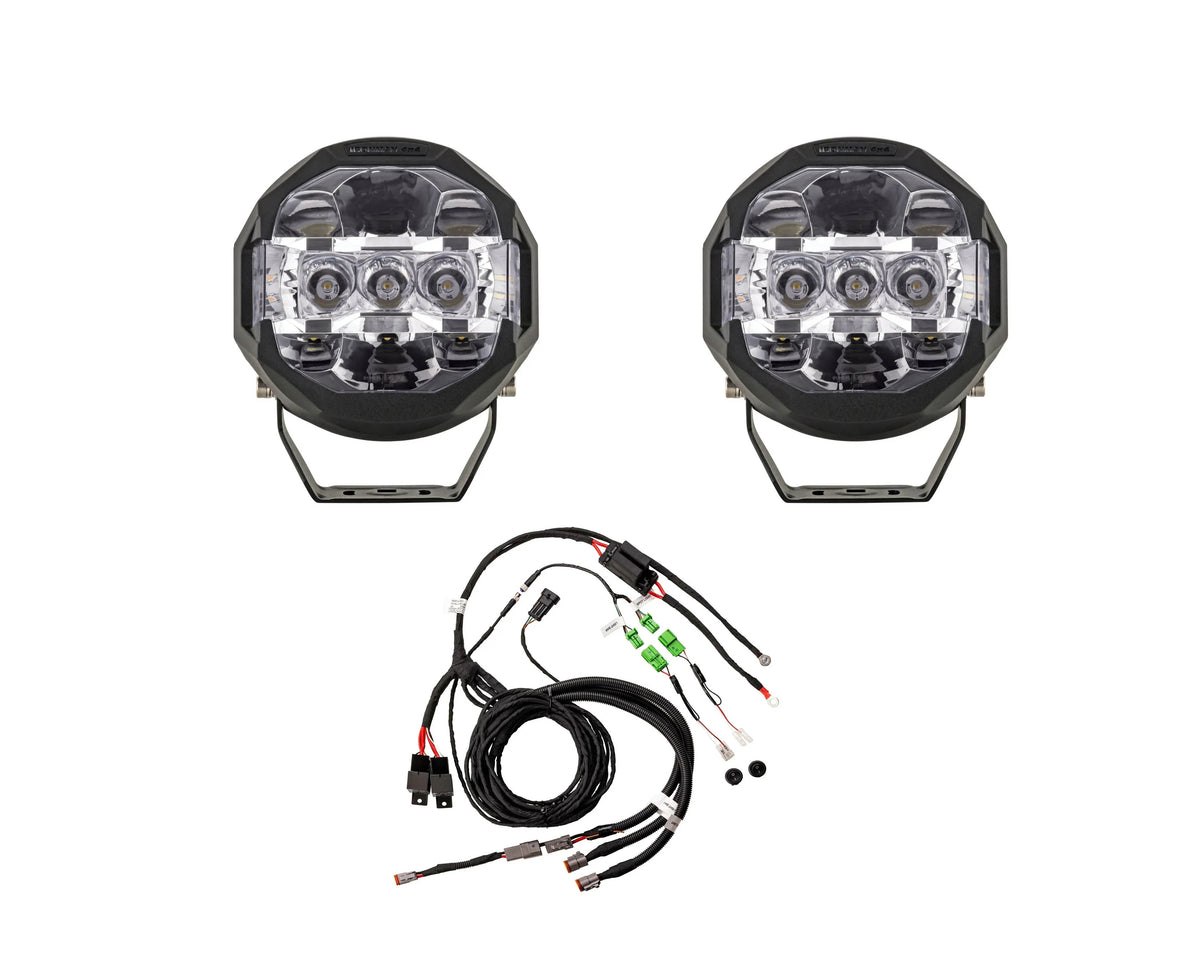

Ironman 4x4 Scope 5" LED Driving Light Kit, Spot and Combo

Short Product Summary

The Scope 5" kit from Ironman 4x4 bundles a spot beam light, a combo beam light and a wiring loom, so you can run both beam patterns from one purchase. Each light pairs a hooded reflector with TIR optics and OSRAM LED chips.

Why This Product

Spot and combo beams do different jobs. The spot reaches down long open roads, while the combo spreads out for winding bush and mountain roads. Running one of each gives you both, and the loom is in the box.

Key Features

• One spot and one combo light – both beam patterns in one kit, so you can cover long straights and twisty tracks
• Hooded reflector plus TIR optics – two lighting technologies working together to get more useful output from the LEDs
• OSRAM LEDs on a cast aluminium housing – the chips sit directly on the housing to shed heat, which also lets the body stay slim
• Position lights and lit logo – two position lights give a daytime running light effect and the logo is illuminated
• IP68 and IP69K rated – built with dust and water ingress protection in mind
• Deutsch 3 pin connector – a proper plug-in connection for the wiring loom
• 10-32 Vdc, 42W – a wide voltage window for the 42W output

Ideal For

• Owners who want both beam patterns without buying the lights separately
• 4x4 drivers fitting a first set of auxiliary lights the wiring loom is part of the box
• Long-distance and bush drivers the spot handles open highway while the combo suits winding roads
• Anyone short on mounting space the slim cast bodies fit in more places than bulkier lights

Local Support from 4Matt Campers

Buying from 4Matt Campers means dealing with an Ironman 4x4 dealer serving South Africa. Ask us to confirm the mounting and wiring you need against your vehicle before you order.

Technical Specifications

• Brand: Ironman 4x4
• Part Number: IDL0501KIT
• Size: 5 inch
• Power: 42W
• Voltage: 10-32 Vdc
• LED chip: OSRAM
• Lumens: 4,400
• Colour temperature: 5,700K
• Operating temperature: -40 °C to +85 °C
• Connector: Deutsch 3 pin
• IP rating: IP68 / IP69K
• Dimensions: Width 113mm, depth 90mm, height 114mm
• Certifications: R112, R10, CE, RoHS
• Product type: LED driving light kit
• Beam patterns: Spot and Combo
• 1 lux distance: Spot: 317m, Combo: 293m
• Quantity per box: 1 x Spot, 1 x Combo, 1 x Wiring loom

What's Included

• 1 x Spot beam driving light
• 1 x Combo beam driving light
• 1 x Wiring loom

Optional Fitment / Upgrade Notes

It is sold by part number rather than for a specific vehicle, so check the mounting spot and the electrics before you order.

• Allow for a body 113mm wide, 90mm deep and 114mm high when you pick the mounting position.
• Confirm your bull bar, roof rack or bracket has room and a suitable mounting point before you drill anything.
• Wire it through a suitable fuse, relay and switch. We recommend professional fitting, especially for the wiring.
• Because the kit holds both beam patterns, plan where each light will sit before you order.

Complete Your Setup

A good lighting setup also needs a solid mount and clean wiring. Look at our roof racks and bull bars and bumpers for mounting, the electrical accessories for the electrical side, and other off-road lights to build out the set.

FAQ

What comes in the Scope 5 inch kit?
One spot beam light, one combo beam light and one wiring loom.

Which beam should go where?
That depends on where you mount them. Tell us about your bar or rack and we will help you plan the layout.

What voltage does it run on?
Ironman lists 10-32 Vdc and 42W for each light.

Do I need to fit it myself?
We recommend professional fitting, particularly for the wiring, relay and fuse.

What warranty does it carry?
Ask us about warranty terms for this kit.
