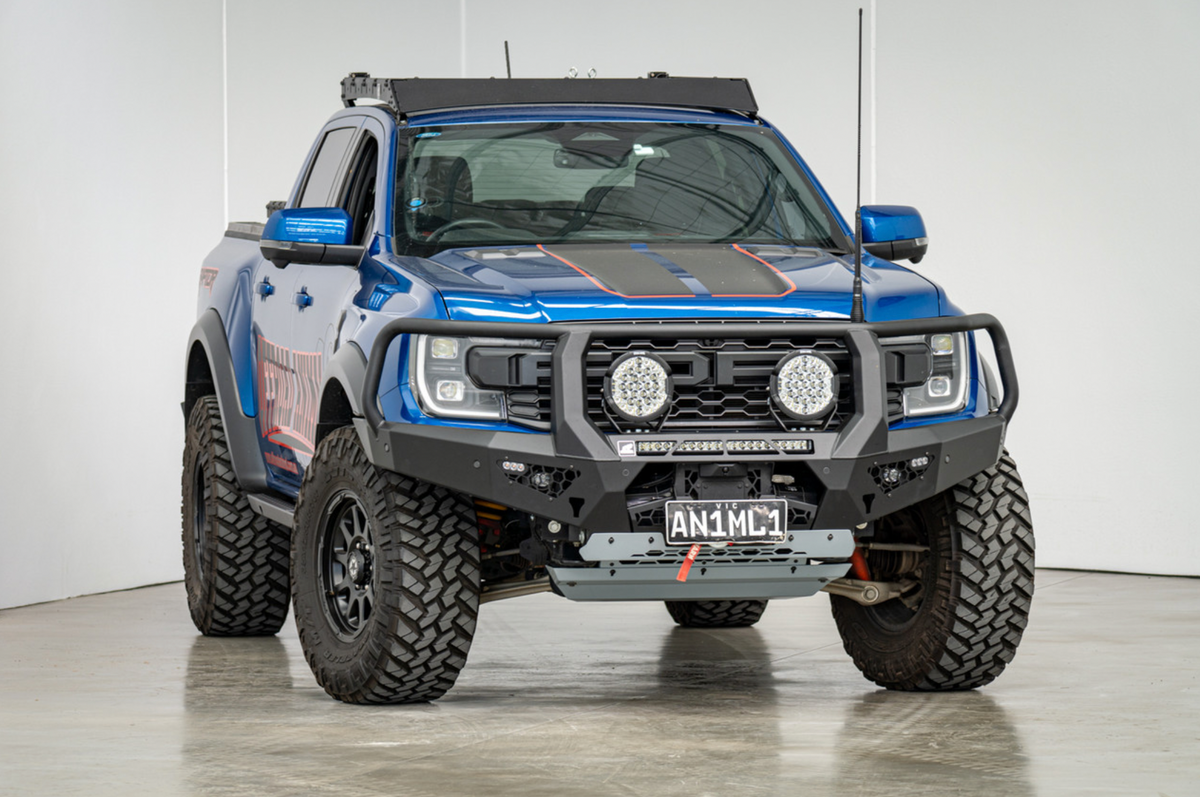

Offroad Animal Ford Ranger Raptor Next Gen Toro Bar

Short Summary

The Offroad Animal Toro Bar for the Next Gen Ford Ranger Raptor is a one-piece welded bull bar that replaces the factory bumper without cutting the bumper. It gives the Raptor front-end protection for animals and off-road obstacles, a mounting point for a winch and lights, and a place for antennas. The bar adds only about 41kg and sticks out 160mm from the grille.

Why This Product

The Raptor is built for the toughest terrain, but its stock bumper is not built for hits. The Toro Bar protects the front end while keeping weight low: the bar adds only about 41kg to the vehicle, and supplier measurements show the front suspension drops around 2mm with the bar fitted. It works with the factory tow points, so recovery gear still connects where you expect it.

At 4Matt Campers, we help clients across the Western Cape choose the right bar, lighting setup and fitment plan for their Ranger Raptor, so they can avoid costly mistakes and build with confidence.

Key Features

• Designed for the Next Gen Ford Ranger Raptor – Built for the latest Raptor platform.
• Toro Bar hoop styling – A hooped bar with extra protection for animals and off-road obstacles.
• Bumper replacement design – Replaces the factory bumper with no cutting of the bumper required. The flares do need to be trimmed.
• Compact and light – The bar adds only about 41kg to the vehicle and sticks out 160mm from the grille.
• Winch-ready setup – A good mounting place for a winch; suits almost all winches, including the Warn Zeon.
• Wing lighting options – Works with factory fog lights, two cube lights per wing, or up to an 8-inch LED light bar in each wing.
• Antenna mounting – Includes antenna mount brackets.
• Works with factory tow points – Factory tow points remain usable.
• Camera relocation included – A camera relocation bracket and camera protection cover are supplied.
• ADR compliant – Built to meet the relevant compliance requirements.
• Airbag compatible – Designed to work with the vehicle's airbag system.
• One-piece welded construction – Welded wing supports add strength and durability.
• Zinc plated and powder coated – Finished in matte black for corrosion resistance.
• Hi-lift jacking points – Built into the design of the bar.
• Number plate flip included – Useful for winch-equipped builds.
• Can be colour coded – Can be matched to the vehicle colour.

Ideal For

• Next Gen Ford Ranger Raptor owners building a touring or off-road vehicle
• Clients who want a protective bar without adding excessive weight
• Vehicles that will carry a winch and lights
• Owners who want to keep the factory tow points
• Builds that need a mounting place for antennas

Local Support from 4Matt Campers

4Matt Campers helps clients across the Western Cape, and in Cape Town, choose the right bull bar, winch and fitment accessories for their Ranger Raptor. From compatibility advice to build planning, our team helps you avoid the wrong purchase and get the right solution first time.

Technical Specifications

• Brand: Offroad Animal
• Product Category: Bull bar / front replacement bar
• Dimensions: Sticks out about 160mm from the grille
• Weight: Adds about 41kg to the vehicle
• Materials: Zinc plated and powder coated matte black
• Compatibility: Next Gen Ford Ranger Raptor
• Other Specs:
  • SKU: FB-FRR-P703-22-TOR-ASM0
  • ADR compliant
  • Airbag compatible
  • Bumper replacement with no cutting of the bumper required (flares need to be trimmed)
  • Suits almost all winches including Warn Zeon
  • Works with factory fog lights, two cube lights per wing, or up to an 8-inch LED light bar in each wing
  • Works with the factory tow points
  • Hi-lift jacking points included
  • Can be colour coded

What's Included

• 1 x Front bar weldment
• 1 x LH chassis impact bracket
• 1 x RH chassis impact bracket
• 1 x Mesh fairlead mount
• 1 x Light cover mesh LH
• 1 x Light cover mesh RH
• 1 x Fog lamp bracket LH
• 1 x Fog lamp bracket RH
• 2 x Under bash plates
• 1 x Under wing panel LH
• 1 x Under wing panel RH
• 1 x Chassis bracket gusset LH
• 1 x Chassis bracket gusset RH
• 1 x Camera relocation bracket
• 1 x Camera protection cover
• 1 x Number plate flip
• 2 x LED indicators
• 2 x Antenna mount brackets
• Nuts and bolts

Optional Fitment / Upgrade Notes

• Suits almost all winches including Warn Zeon
• Wing lighting: factory fog lights, two cube lights per wing, or up to an 8-inch LED light bar in each wing
• The flares do need to be trimmed when fitting this bar
• Supplier measurements on Raptors show the front suspension drops about 2mm with the bar fitted, and up to 5mm with a winch and lights added
• Can be colour coded to the vehicle
• Professional fitment is recommended to confirm accessory compatibility and installation quality.

Complete Your Setup

Browse the full Offroad Animal range and all our 4x4 bumpers & protection. A bull bar pairs perfectly with a 4x4 winch and a complete recovery kit, and driving lights & LED light bars finish the front end.

FAQ

Does the Offroad Animal Toro Bar fit the Next Gen Ford Ranger Raptor?
Yes. This bar is listed for the Next Gen Ford Ranger Raptor.

Do I need to cut the bumper?
No cutting of the bumper is required, but the flares do need to be trimmed.

Can a winch be fitted to this bar?
Yes. It suits almost all winches, including the Warn Zeon.

How much weight does it add, and does it affect the suspension?
The bar adds only about 41kg. Supplier measurements on Raptors show the front suspension drops around 2mm with the bar fitted, and up to 5mm when a winch and lights are added.
