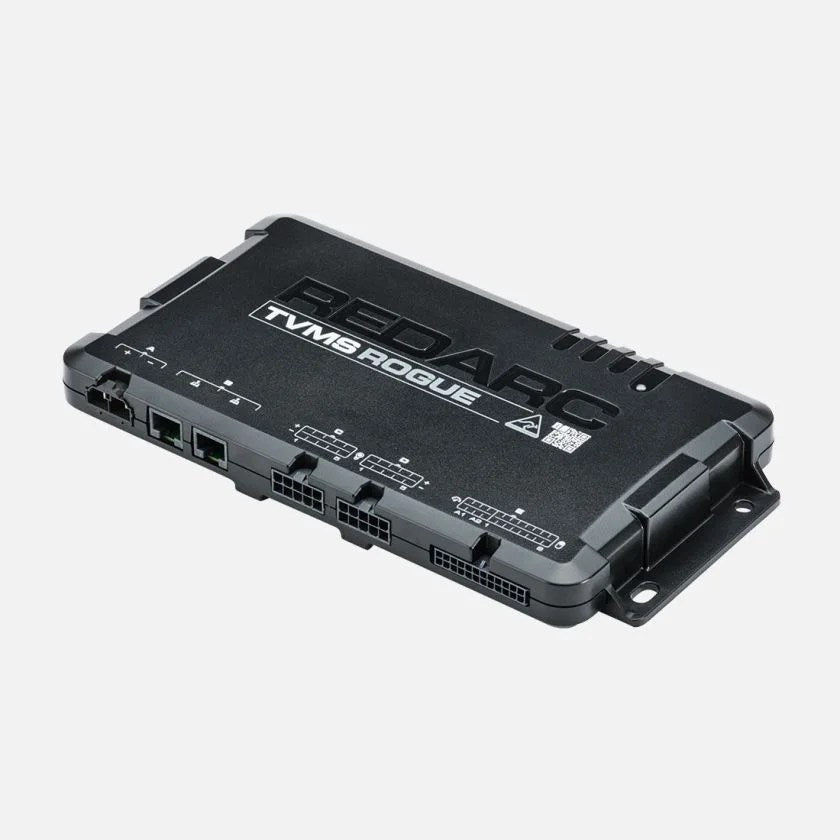

REDARC TVMS Rogue Control Module
A carefully selected camping product from 4Matt Campers, prepared around fitment, stock, options and the way you plan to travel.
From
R12 415.00
Add this product to your quote basket. 4Matt Campers confirms stock, fitment, freight/courier and final pricing before payment.
SKU: RED/TVMS1240
Genuine brand
Expert fitment advice
Options available
4Matt supported
No online payment is taken. 4Matt Campers confirms the final quote before you decide.
Overview
Compact, capable and easy to understand.
Product question
Ask about this product.
Send a product-specific question to 4Matt Campers. We will reply with stock, fitment, options, lead time or showroom guidance for this exact product.
TOTAL CONTROL AT YOUR FINGERTIPS
The RedVision TVMS Rogue Control Module provides an unprecedented level of control and automation to your 4×4, caravan, camper, RV or work vehicle. Control accessories such as lights, fridges, TVs and inverters via the physical screen or your Bluetooth connected mobile device.
At just 25mm thick and with in-built smart fuses, the TVMS Rogue offers a compact and flexible power control solution for caravan, camper and 4×4 applications.
MONITOR
When combined with the RedVision screen (sold separately) and Manager30 battery management system (sold separately), the TVMS Rogue provides real time and accurate state of charge, power input/output and ambient temperature information.
Two analogue tank level inputs offer accurate monitoring of multiple tanks and the Rogue is compatible with most common tank level sensors.
CONTROL
The TVMS Rogue allows complete control of multiple on-board devices including lights, fans, fridges, and pumps. Each of its 10 output channels include dimming and the built-in switch inputs make the Rogue perfect for lighting circuits.
With the Rogue connecting to up to 8 physical switches, control is not just limited to the RedVision screen or app. It enables lights to be controlled from each room of a caravan or for the addition of reed switches to trigger lights when opening a door for example.
AUTOMATION
Save time and energy by using RedVision to automate those mundane tasks. With the press of a button, switch off everything except for your fridge or power down non-essential loads when your batteries are running low.
For the complete RedVision solution, pair your TVMS Rogue with the Manager30 battery management system.
FEATURES:
- 10x 10A dimmable outputs
- 8x inputs allow for use with physical switches
- Compact size
- On-board smart fuses
- Streamlined installation and configuration
- Fully programmable*
- Accurate analogue tank level inputs
SCREEN COMPATIBILITY
TVMS Rogue is compatible with DISP4300-RC models manufactured from January 2023 (serial numbers beginning with “23”). Displays manufactured from July 2022 to January 2023 are upgradeable (serial numbers “2207” to “2212”).
APP AVAILABILITY
*TVMS Rogue Configurator app available now for iOS but coming soon for Android. The configurator app is only required for initial installation and set up. The user app is available now for both iOS and Android.
SPECIFICATIONS| GTIN_BARCODE | 9338628007233 |
|---|---|
| BRAND | REDARC |
| OPERATING TEMPERATURE | -20°C to 70°C |
| WEIGHT | .43 kg |
| HEIGHT | 25 mm |
| WIDTH | 130 mm |
| DEPTH | LENGTH | 250 mm |
| WARRANTY | 2 Years |
| INPUT VOLTAGE | 9 – 16V |
| MAX. RATED OUTPUT CURRENT | 40A |
