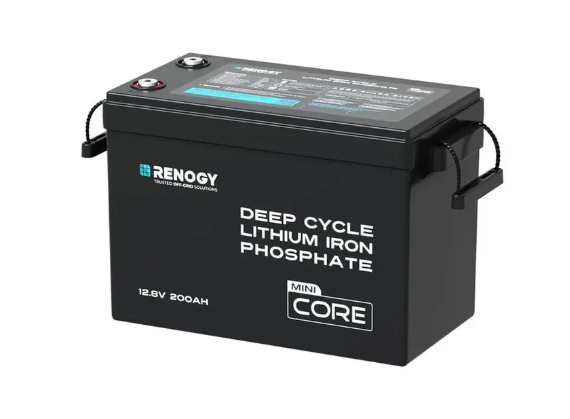

Renogy 12V 200Ah Core Mini Lithium Battery

Short Product Summary

The Renogy 12V 200Ah Core Mini Lithium Battery is a compact, high-capacity LiFePO₄ deep-cycle battery delivering 2560Wh of usable energy — and it's around 31% smaller than other 12V 200Ah lithium batteries. With 100% usable depth of discharge, low-temperature protection and a 5000+ cycle life, it's a serious house battery for caravans, trailers and off-grid setups.

Why This Product

200Ah is the sweet spot for many builds — enough to run a fridge, lights, an inverter and devices for days off-grid. This Core Mini packs that capacity into a notably compact case, gives you the full 200Ah usable (100% DOD), and outlasts lead-acid many times over — better value across the life of your build.

Key Features

• 2560Wh of usable energy – 12.8V nominal, 200Ah capacity, 100% usable (DOD).
• 100A continuous discharge – 200A peak (5s) for start-up loads.
• 100A max charge – fast recharging from a capable charger.
• Compact "Mini" footprint – ~31% smaller than typical 12V 200Ah lithium batteries.
• Low-temperature protection – the BMS prevents charging below 0 °C to protect the cells.
• 5000+ cycle life – automotive-grade cells, far outlasting lead-acid.
• Built-in BMS – over-charge, over-discharge, over-current & short-circuit protection.

Ideal For

• Caravan, trailer & camper builds needing a solid, compact house battery
• Overlanders running a fridge, lights and inverter off-grid
• Home & off-grid backup where capacity and long life matter

Local Support from 4Matt Campers

4Matt Campers serves the Western Cape and Cape Town, and ships across South Africa — helping clients build reliable 12V and off-grid power systems. We'll help you size the battery, charging and inverter to match your build.

Technical Specifications

• Brand: Renogy
• Model: RBT12200LFP-M-G1-SA (Core Mini Series)
• Chemistry: LiFePO₄ (lithium iron phosphate)
• Nominal Voltage: 12.8 V
• Capacity: 200 Ah / 2560 Wh
• Max Continuous Discharge: 100 A
• Peak Discharge: 200 A (5 s)
• Max Charge Current: 100 A
• Depth of Discharge: up to 100%
• Cycle Life: 5000+ cycles
• Cold Protection: Low-temperature charge protection (no charge below 0 °C)
• BMS: Over-charge, over-discharge, over-current & short-circuit protection
• Dimensions: 522 × 240 × 219 mm
• Weight: 19 kg

What's Included

• 1 × Renogy 12V 200Ah Core Mini Lithium Battery
• User manual

Optional Fitment / Upgrade Notes

To get the most from your 200Ah battery, it's worth confirming:

• Your charger / DC-DC charger is set to a lithium (LiFePO₄) profile
• A battery monitor or shunt for accurate state-of-charge
• Cabling and fusing rated for your inverter's current draw

Complete Your Setup

Browse the full Renogy range and lithium batteries, or add the right 12V electrical & power gear, a foldable solar panel or a portable power station.

FAQ

How much can a 200Ah battery run?
With 2560Wh fully usable, it can run a 12V fridge, lights and an inverter for days off-grid, depending on your loads. We'll help you estimate runtime.

Why "Mini"?
It packs a full 200Ah into a notably compact case — about 31% smaller than typical 200Ah lithium batteries — ideal where space is tight.

Can I connect more than one?
Yes — Renogy lithium batteries can be expanded for more capacity. Ask our team to confirm the correct configuration.
