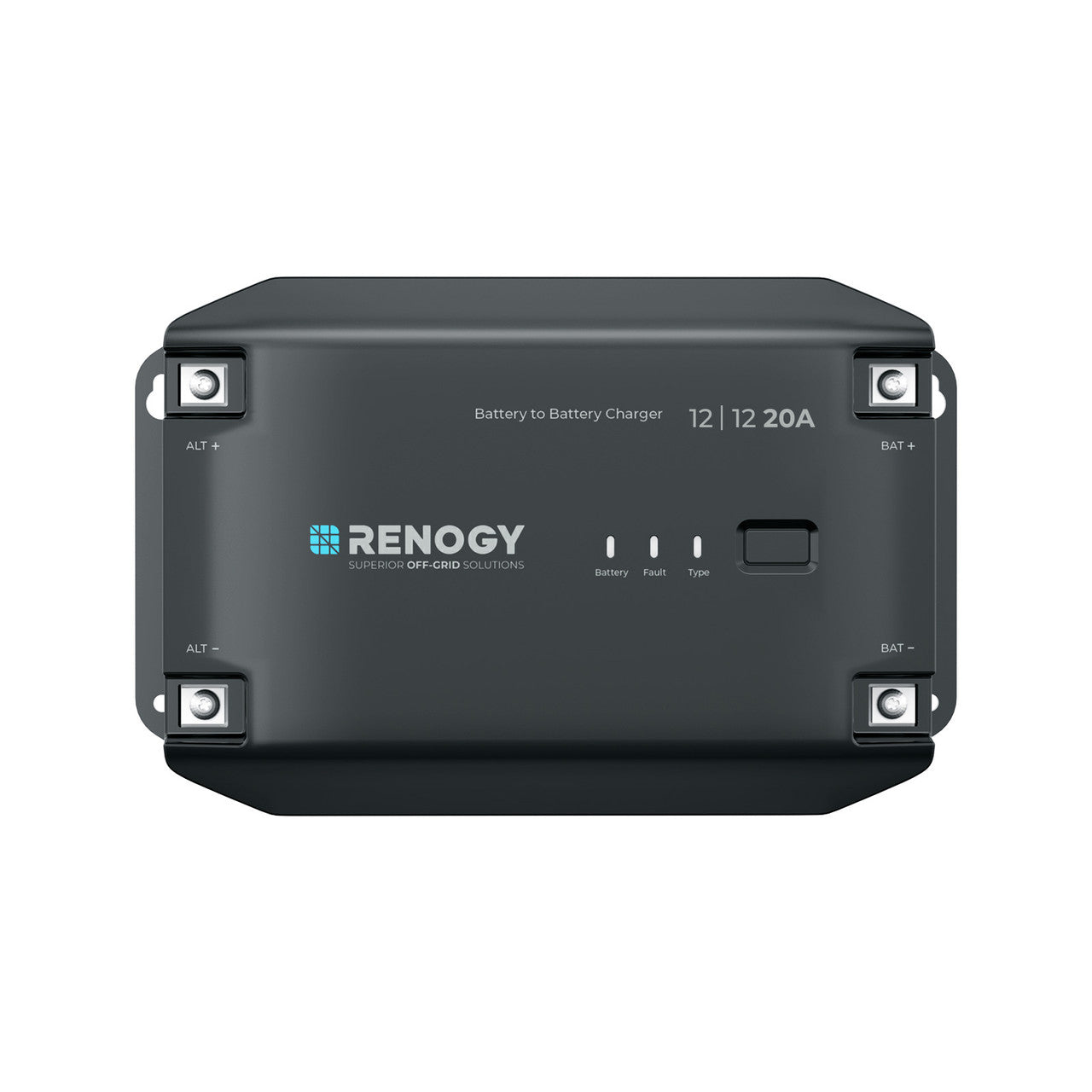

Renogy 12V 20A DC-DC Battery Charger

Short Product Summary

The Renogy 12V 20A DC-DC Battery Charger (RBC20D1U) charges your caravan, trailer or camper house battery from the tow vehicle's alternator while you drive. It takes the messy, uncontrolled voltage an alternator actually produces and turns it into a proper multi-stage charge at up to 20 A, with selectable profiles for lithium (LiFePO4), AGM, gel and flooded batteries. It works with traditional alternators and with the smart, variable-voltage alternators fitted to most modern bakkies and SUVs.

Why This Product

A lithium house battery cannot be charged safely or fully straight off an alternator. Wire it directly and one of two things happens: the alternator sees a battery that will swallow every amp it can produce and cooks itself, or the alternator's regulation never lets the battery past roughly 80% and you arrive at camp with a bank that was never actually filled. A smart alternator makes it worse again, because it drops output voltage to almost nothing once the starter battery is topped up.

A DC-DC charger sits between the two batteries and fixes all of that. It draws a fixed, limited current the alternator can live with, boosts the voltage to whatever your house battery actually needs, and runs a real bulk, boost and float cycle. On a South African trip that matters more than it does elsewhere: a run from Cape Town to the Cederberg, a long gravel transit through the Karoo, or three days of moving between camps is often the only charging opportunity you get, and this is what turns those driving hours into a genuinely full battery.

Key Features

• 20 A regulated charge current – puts a meaningful charge into your house bank on a two- or three-hour drive without loading the alternator beyond what it can handle.
• Selectable battery profiles (LI, GEL, FLD, AGM, USER) – set it once for your battery chemistry and it charges to the right voltages every time; USER mode lets you dial in a custom profile.
• Smart and traditional alternator support – traditional alternators need no ignition wire; smart Euro 6 alternators are handled by connecting the IGN signal input.
• Alternator running detection – charging only happens when the engine is actually turning the alternator, so it never quietly flattens your starter battery overnight.
• 94% charging efficiency – very little of the alternator's output is lost as heat between the two batteries.
• Low idle draw under 15 mA – it can stay permanently wired in without measurably draining the vehicle when parked.
• Full protection set – reverse polarity, over-voltage, over-discharge, over-current and over-temperature protection built in.
• RS485 port for the optional BT-2 module – add Bluetooth and monitor or adjust the charger from the Renogy DC Home app on your phone.
• Compact sealed-look housing with cooling fins – 236.5 x 131.5 x 58 mm and 1.5 kg, small enough to mount in a nose cone, under a seat or in a battery locker.

Ideal For

• Off-road caravans and camping trailers running a lithium house battery that has to be charged on the move.
• Bakkie canopy and 4x4 dual-battery builds where the second battery lives behind the cab or in the load bin.
• Owners of newer vehicles with smart alternators, where a plain isolator or split-charge relay simply will not charge properly.
• Multi-day Karoo, Kalahari and West Coast trips where driving time is the main charging opportunity.
• Anyone upgrading an older AGM setup to lithium and needing the charging side brought up to standard at the same time.

Local Support from 4Matt Campers

4Matt Campers is a Renogy dealer in Cape Town, serving customers throughout the Western Cape and delivering across South Africa. We work on off-road caravans and campers every day, so we can talk you through cable sizing, fusing, mounting position and whether a 20 A or a larger unit is the right call for your battery bank and your typical driving hours. Call or message us before you order if you are unsure what your vehicle's alternator setup requires.

Technical Specifications

• Model – Renogy RBC20D1U
• SKU – RBC20D1U-G1-SA
• System voltage – 12 V to 12 V
• Alternator input voltage – traditional alternator 13.2–16.0 V DC; smart (Euro 6) alternator 12–16.0 V DC
• Maximum output current – 20 A (selectable 20 A or 10 A)
• Output power – 292 W
• Supported battery types – AGM, gel, flooded, lithium iron phosphate (LiFePO4) and user-defined
• Charging efficiency – 94%
• Idle power consumption – under 15 mA
• Input fuse rating – 40 A
• Output fuse rating – 30 A
• Terminal range – 10 AWG to 8 AWG
• Grounding – common negative
• Communication – RS485
• Operating temperature – -25°C to 60°C
• Storage temperature – -40°C to 85°C
• Humidity – 0–95%, non-condensing
• Maximum operating altitude – 3000 m
• Dimensions – 236.5 x 131.5 x 58 mm
• Weight – 1.5 kg
• Protection – reverse polarity, over-voltage, over-discharge, over-current, over-temperature
• Certification – CE / RoHS / FCC

What's Included

• 1 x Renogy 12V 20A DC-DC Battery Charger (RBC20D1U)
• Product documentation

Battery cable, ring terminals, fuses and fuse holders are not supplied and are sized to your specific installation.

Optional Fitment & Upgrade Notes

• If your vehicle has a smart or variable-voltage alternator, the IGN signal input must be wired to a switched ignition source. Without it the charger will not know when the engine is running. Traditional alternators do not need this connection.
• Use 10 AWG or 8 AWG cable on both the input and output sides, keep runs as short as practical, and fuse both ends close to the batteries: 40 A on the input, 30 A on the output.
• Add the Renogy BT-2 Bluetooth module to the RS485 port if you want live charge data and settings on your phone through the DC Home app.
• Mount it in a dry, ventilated spot. It sheds heat through its fins, so leave clear air around it and avoid burying it under bedding or gear.
• If your house bank is 200 Ah of lithium or larger, or you tend to drive short distances between camps, step up to a 40 A or 50 A unit so the driving time you do get is worth more.
• Fitment at our Cape Town workshop can be arranged – ask us when you order.

Complete Your Setup

Pair this charger with a proper house bank and a solar side that matches it. Browse our lithium batteries, solar charge controllers, solar panels and 12V electrical accessories, or see the full Renogy range we carry.

FAQ

Do I really need a DC-DC charger for a lithium battery?
Yes. A LiFePO4 battery wired straight to the alternator either overloads the alternator or never reaches a full state of charge, and on a smart alternator it will barely charge at all. A DC-DC charger is the correct and safe way to charge lithium while driving.

Will this work with my bakkie's smart alternator?
It will, provided you connect the IGN signal input to a switched ignition source. That connection tells the charger the engine is running. With an older traditional alternator the IGN wire is not required.

Can I use this with an AGM battery instead of lithium?
Yes. Select the AGM, gel or flooded profile and the charger uses the correct voltages for that chemistry. It is also the right tool if you plan to move to lithium later.

How much charge will 20 A actually give me?
Roughly 20 Ah for every hour of driving, so a three-hour transit puts back about 60 Ah. If your bank is 200 Ah or more and you only drive short hops, a 40 A or 50 A unit is a better fit.

Can it charge from solar as well?
No. This model has an alternator input only. If you want one unit that handles both the alternator and a solar array, look at the Renogy DC-DC charger with built-in MPPT instead.
