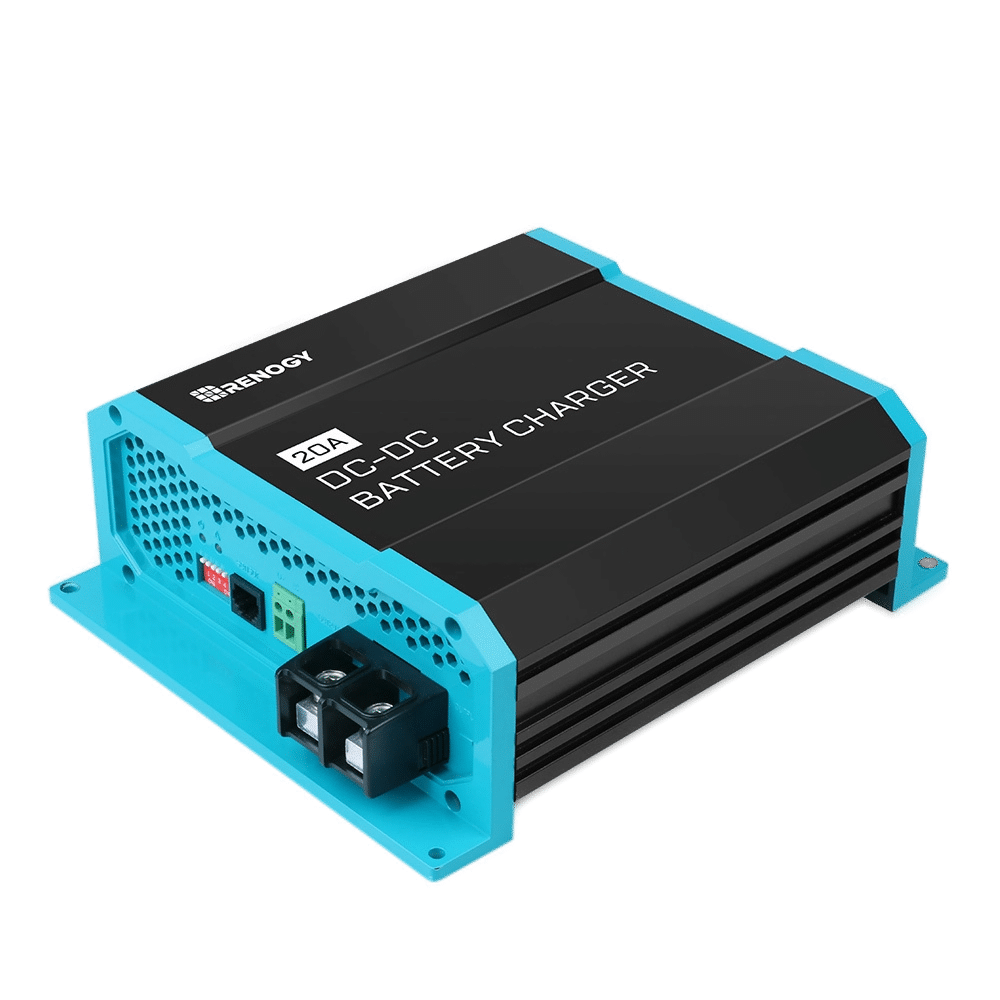

Renogy CORE 12V 20A DC-DC Battery Charger

Short Product Summary

The Renogy CORE 12V 20A DC-DC Battery Charger (DCC1212-20) is the long-running Renogy on-board charger that takes power from your tow vehicle's starter battery and delivers a proper three-stage 20 A charge to the house battery in your caravan, trailer or camper. DIP switches set the charge profile for lead-acid or lithium banks, and a D+ ignition connection makes sure it only ever works while the engine is running.

Why This Product

An alternator is built to top up a starter battery, not to charge a deep-cycle house bank. Connect a lithium battery straight to it and the alternator is asked for more current than it was designed to give, while the battery still never reaches a genuine 100% because the alternator's regulated voltage is simply not the right shape for LiFePO4. Lead-acid house banks suffer a slower version of the same problem: they sit permanently part-charged and sulphate.

This charger sits between the two batteries and does the job properly. It pulls a controlled 20 A, isolates the two banks so your house loads can never flatten the vehicle, and runs bulk, boost and float stages to fill the battery rather than just splash charge at it. On a Cape Town to Kgalagadi run, or a week of moving camp along the West Coast, the hours you spend on gravel are your charging window – this is what converts them into usable amp-hours.

Key Features

• 20 A rated charge current – a steady, predictable charge rate the alternator can supply all day without complaint.
• Three-stage charging (bulk, boost, float) – brings the house battery to a true full charge instead of leaving it permanently part-filled.
• Five DIP switches for battery profiles – select lead-acid or lithium and fine-tune boost and float voltages to suit your specific battery.
• Wide 8–16 V DC input range – keeps charging through the voltage sag of long cable runs and heavy vehicle loads.
• Battery isolation built in – house loads are separated from the starter battery, so you never come back to a vehicle that will not turn over.
• D+ ignition control – the unit only operates when the ignition circuit is live, so it cannot drain the vehicle while parked.
• Full protection set – over-voltage, over-temperature and reverse polarity protection as standard.
• Rugged finned aluminium housing with cooling fans – built for permanent installation in a caravan nose cone or under-seat locker.
• Optional RTSDCC temperature sensor – compensates charge voltage for cold ambient temperatures on lead-acid banks.

Ideal For

• Off-road caravans and camping trailers with a 100–150 Ah house battery that needs charging on the move.
• Bakkie and 4x4 dual-battery installations where the auxiliary battery sits in a canopy or load bin.
• Owners replacing an old split-charge relay or voltage-sensitive relay with something that actually charges lithium.
• Long gravel transits in the Karoo, Namaqualand and the Kalahari where driving time is the main source of charge.
• Boats, panel vans and commercial vehicles running a separate 12 V service battery.

Local Support from 4Matt Campers

4Matt Campers is a Renogy dealer in Cape Town, serving customers throughout the Western Cape and delivering across South Africa. We fit these units into caravans and campers regularly, so we can advise on cable sizing, fuse placement, where the D+ ignition wire should pick up in your vehicle, and whether 20 A is enough for the battery bank you are running. Ask us before you buy if you are not sure.

Technical Specifications

• Model – Renogy DCC1212-20
• SKU – RNG-DCC1212-20-G1-SA
• Transformation – 12 V to 12 V
• Input battery voltage range – 8–16 V DC
• Rated charging current – 20 A
• Charging voltage range – lead-acid 13.2–14.7 V; lithium 12.6–14.6 V
• Rated maximum power – 250 W
• Output ripple at rated current – under 50 mV
• Efficiency – 90%
• Idle power consumption – 0.4 A
• Charging stages – bulk, boost, float
• Battery types – AGM, gel, flooded, sealed lead-acid and lithium iron phosphate
• Temperature compensation – -3 mV/°C per 2 V (not used with lithium)
• Operating temperature (ambient) – -20°C to +50°C
• Humidity – 95% or less, non-condensing
• Dimensions – 211 x 175 x 68 mm
• Weight – 1.3 kg
• Terminal size – M6 x 10 mm
• Terminal torque – 24.5–29.4 N·cm
• Certification – CE
• Solar input – none; this model charges from the alternator only

What's Included

• 1 x Renogy CORE 12V 20A DC-DC Battery Charger (DCC1212-20)
• Product documentation

Battery cable, ring terminals, fuses, fuse holders and the D+ ignition wiring are not supplied and are made up to suit your vehicle.

Optional Fitment & Upgrade Notes

• The D+ ignition connection is not optional. This charger will not power on or operate until the D+ terminal senses a 12 V signal from your vehicle's ignition circuit, and that connection usually needs to be spliced into an ignition-switched line or picked up from the fuse box. Budget for it at fitment.
• Set the DIP switches to match your battery chemistry before you connect anything – running a lithium bank on a lead-acid profile, or the reverse, will shorten its life.
• Renogy recommends 10 AWG or 8 AWG copper cable with runs of no more than 3 metres, and fusing on both the input and output sides close to the batteries.
• Add the optional Renogy RTSDCC temperature sensor if you run a lead-acid house bank in cold conditions. It must not be used with lithium batteries.
• Mount it in a dry, well-ventilated location. It uses cooling fans and needs clear air around the housing.
• If you need solar and alternator charging from one box, look at the Renogy DC-DC chargers with built-in MPPT instead.
• Fitment at our Cape Town workshop can be arranged – ask us when you order.

Complete Your Setup

Build the rest of the system around it: browse our lithium batteries, solar charge controllers, solar panels and 12V electrical accessories, or view the complete Renogy range.

FAQ

Does this charger need an ignition wire?
Yes. The D+ terminal must see a 12 V signal from the vehicle's ignition circuit or the unit will not switch on at all. This is deliberate – it stops the charger from draining your starter battery when the engine is off – but it does mean the installation involves splicing into an ignition-switched line.

Can it charge a lithium (LiFePO4) house battery?
Yes. Set the DIP switches to the lithium profile and it charges within the 12.6–14.6 V range LiFePO4 requires. Do not fit the optional temperature sensor when using lithium.

How is this different from the Renogy RBC20D1U 20 A charger?
Both are 20 A alternator chargers, but they are different units. This one is the classic DCC1212 series, configured with DIP switches and controlled by a D+ ignition signal. The RBC20D1U is the newer housing with push-button profile selection, built-in alternator running detection and an RS485 port for Bluetooth monitoring.

Can I connect solar panels to it?
No. This model has an alternator input only. Run your solar through a separate MPPT controller, or choose one of the Renogy DC-DC units with MPPT built in.

What size house battery does 20 A suit?
It is a good match for banks up to around 150 Ah where you drive a couple of hours between camps. For a 200 Ah or larger lithium bank, or if you only make short hops, step up to a 40 A or larger charger.
