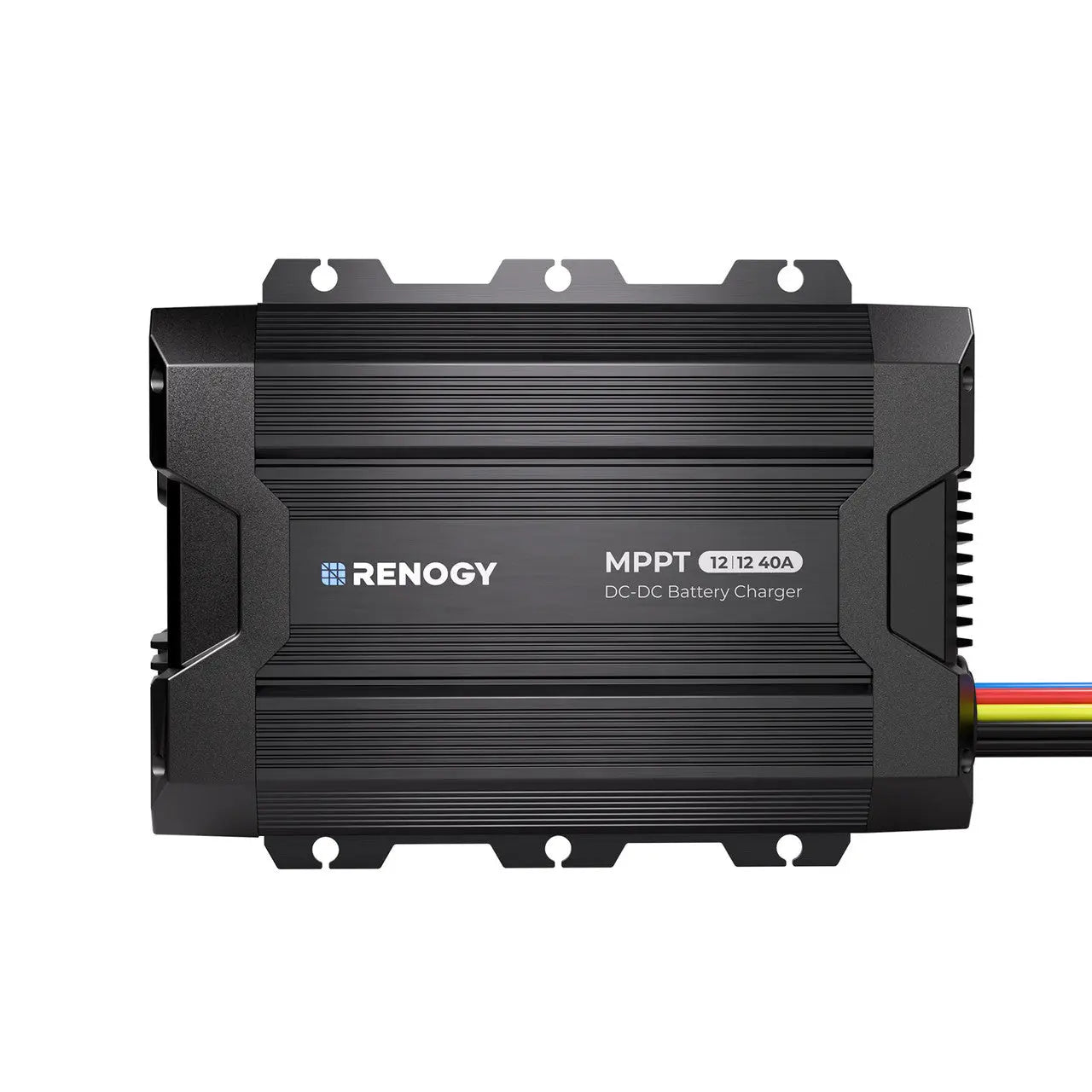

Renogy CORE 12V 40A DC-DC Battery Charger with MPPT

Short Product Summary

The Renogy CORE 12V 40A DC-DC Battery Charger with MPPT (RBC40D1S) is a two-in-one charger for caravans, camping trailers and campers. It charges your 12 V house battery from the tow vehicle's alternator at up to 40 A while you drive, and it has a built-in MPPT solar controller so the same unit charges from your roof panels when you are parked. Profiles are selectable for AGM, gel, flooded and LiFePO4 batteries.

Why This Product

A lithium house battery cannot be charged safely or fully straight off an alternator. Wired directly, the battery will draw everything the alternator can give and overheat it, while a modern smart alternator will drop its voltage the moment the starter battery is full and leave your house bank stuck well short of 100%. A DC-DC charger solves both problems by limiting the current the alternator has to supply and boosting the voltage to whatever the house battery actually needs.

What makes this unit worth the extra over a plain 40 A charger is the MPPT solar input in the same box. On a typical South African trip you alternate between the two: long gravel transits through the Karoo or up the West Coast where the alternator does the work, then two or three days sitting still at a camp where solar is all you have. Instead of a DC-DC charger and a separate solar controller, two sets of cable runs and two sets of fuses, you mount one unit and wire both sources into it. Note that it charges from one source at a time, not both simultaneously – the DC input takes priority by default, and you can set solar priority if you prefer.

Key Features

• 40 A maximum charge current – roughly 40 Ah back into the bank for every hour of driving, enough to keep a 200 Ah lithium bank genuinely topped up between camps.
• Built-in MPPT solar controller – charges from a 12–30 V solar array when parked, so you do not need a separate charge controller.
• Selectable source priority – DC input is the default; switch to solar priority if you would rather run off the panels whenever the sun is up.
• Four battery profiles – AGM, gel, flooded and LiFePO4, selected on the unit with the SELECT button.
• Smart and traditional alternator support – works with traditional alternators (13.2–16.0 V) and smart Euro 6 alternators (12–16.0 V).
• Three-stage adaptive charging – bulk, boost and float, so the battery is filled properly rather than left part-charged.
• 93% charging efficiency and very low 10 mA idle draw – little energy wasted in the conversion, nothing meaningful drawn when the vehicle is standing.
• Input reverse protection on both ports – charging is simply not enabled if the solar or DC input is connected the wrong way round.
• Compact 195 x 149 x 48 mm, 1.2 kg body – small and light enough to mount behind a seat, in a canopy or in a caravan battery locker.

Ideal For

• Off-road caravans and camping trailers running a 200 Ah or larger lithium house bank with roof solar.
• Bakkie canopy and 4x4 builds where you want one box handling both alternator and solar charging.
• Owners of modern vehicles with smart alternators that will not charge a house battery properly on their own.
• Longer trips with a mix of big driving days and multi-day stops – Kgalagadi, Namaqualand, the Richtersveld.
• Rebuilds where you are replacing an old relay plus separate solar controller with a single tidy installation.

Local Support from 4Matt Campers

4Matt Campers is a Renogy dealer in Cape Town, serving customers throughout the Western Cape and delivering across South Africa. We build and service caravan and camper electrical systems every week, so we can help you match panel wattage and array voltage to this controller, size your cable and fuses correctly, and decide whether 40 A or a larger unit suits your battery bank and your driving pattern. Talk to us before you order if you want it checked over.

Technical Specifications

• Model – Renogy RBC40D1S
• SKU – RBC40D1S-G1-SA
• System voltage – 12 V to 12 V
• Solar input voltage – 12–30 V DC
• Alternator input voltage – traditional alternator 13.2–16.0 V DC; smart (Euro 6) alternator 12–16.0 V DC
• Output voltage – 10–16 V DC
• Maximum output current – 40 A
• Output power – 616 W
• Supported battery types – AGM, gel, flooded, lithium iron phosphate (LiFePO4)
• Charging stages – bulk, boost, float
• Charging efficiency – 93% or better
• Idle power consumption – under 10 mA
• Input fuse rating – 60 A
• Output fuse rating – 50 A
• Grounding – common negative
• Cooling – passive heat sink
• Enclosure rating – IP31
• Operating temperature – -20°C to 45°C
• Storage temperature – -20°C to 60°C
• Humidity – 0–95% RH
• Dimensions – 195 x 149 x 48 mm
• Weight – 1.2 kg
• Certification – FCC Part 15 Class B, CE, RoHS, SAA

What's Included

• 1 x Renogy CORE 12V 40A DC-DC Battery Charger with MPPT (RBC40D1S)
• 7 x heat-shrink tubings
• 4 x self-tapping mounting screws
• 1 x user manual

Battery cable, solar cable, ring terminals, fuses and fuse holders are not supplied and are sized to your specific installation.

Optional Fitment & Upgrade Notes

• This unit charges from the alternator or from solar, but not from both at the same time. DC input is the default priority; solar priority can be selected on the unit if you would rather use the panels first.
• Keep your solar array within the 12–30 V input window. A single 12 V panel or two panels in parallel is the safe approach; check the open-circuit voltage before wiring panels in series.
• Fuse both sides close to the batteries – 60 A on the input, 50 A on the output – and size cable for the full 40 A over the actual run length.
• The IP31 rating means splash and drip resistance only. Mount it inside a locker, canopy or under a seat, not in an exposed position on a trailer A-frame.
• It cools by passive heat sink, so leave air space around the fins and do not pack gear tightly against it.
• If your house bank is 300 Ah or more, or you tow with a vehicle that has a large alternator and you want faster recovery, ask us about the 50 A and 60 A units in the Renogy range.
• Fitment at our Cape Town workshop can be arranged – ask us when you order.

Complete Your Setup

Finish the system with the right battery and array: browse our lithium batteries, solar charge controllers, solar panels and 12V electrical accessories, or see the full Renogy range.

FAQ

Can it charge from the alternator and solar at the same time?
No. It charges from one source at a time. By default the DC input from the vehicle takes priority when the engine is running, and it switches back to solar when it is not. You can set solar priority on the unit if you prefer.

Do I still need a separate solar charge controller?
Not for an array within the 12–30 V input range – the MPPT controller is built in. If you are running a large, higher-voltage array, a separate controller alongside this unit may still make sense; ask us and we will work it out with you.

Will it work with a smart alternator?
Yes. It handles both traditional alternators at 13.2–16.0 V and smart Euro 6 alternators from 12 V, which is exactly the situation where a plain isolator or split-charge relay fails to charge your house battery.

Is 40 A too much for my vehicle's alternator?
For most modern bakkies and SUVs with a healthy alternator, no. If you tow with an older or small-engine vehicle, tell us what it is and we will advise whether to stay at 40 A or drop to a 20 A unit.

Can I mount it outside on the trailer drawbar?
No. IP31 protects against drips only, and a drawbar sees dust, gravel and standing water. Mount it in a sealed locker, canopy or interior cabinet with airflow around it.
