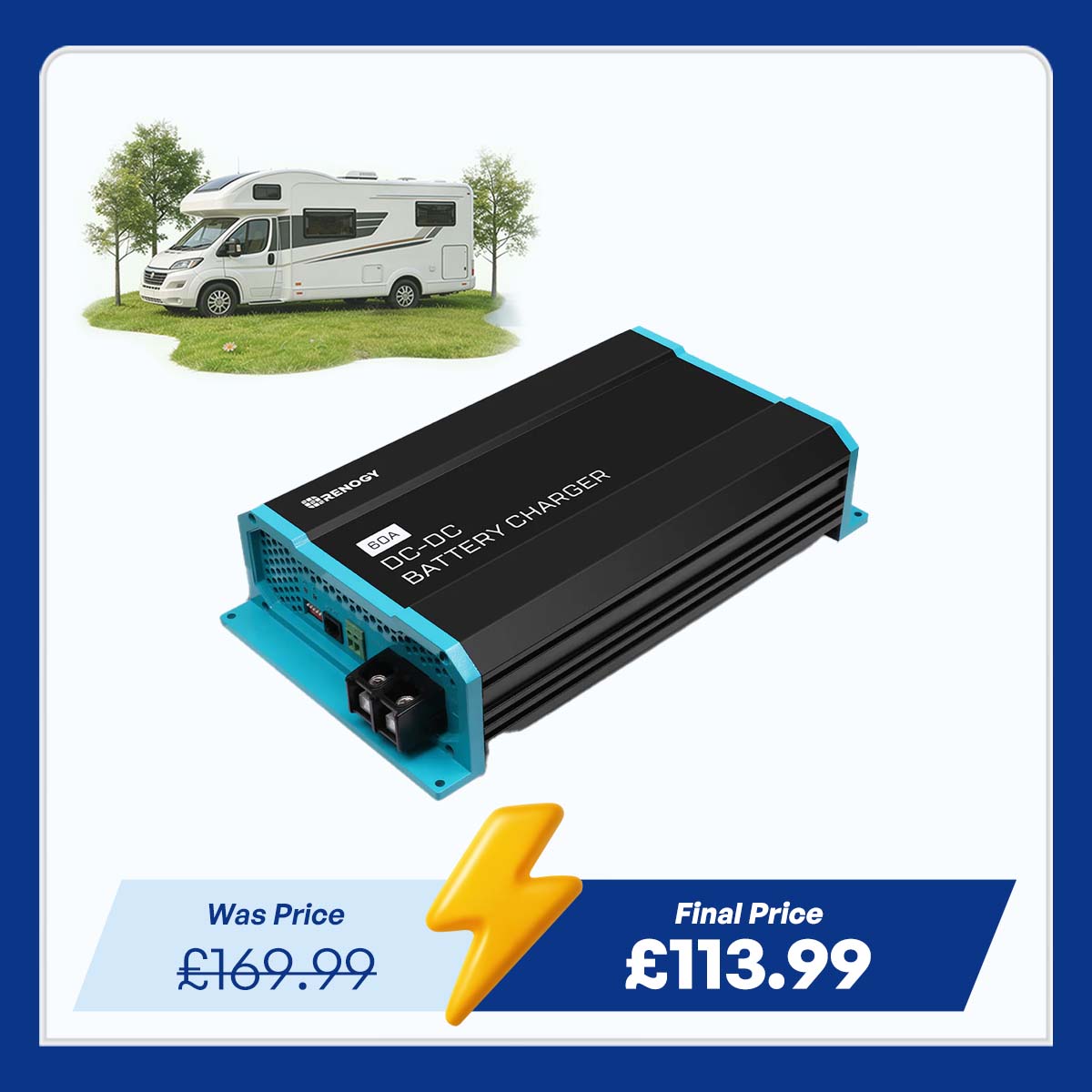

Renogy CORE 12V 60A DC-DC Battery Charger

Short Product Summary

The Renogy CORE 12V 60A DC-DC Battery Charger is an on-board charger that sits between your vehicle's starter battery and your caravan or camper house battery, converting alternator power into a properly regulated 3-stage charge. It handles up to 60A of charge current, works with both traditional and smart (Euro 6) alternators, and supports AGM, flooded, gel and lithium batteries via a simple DIP switch.

Why This Product

Wiring a house battery straight to the alternator through a solenoid is a poor way to charge it. Voltage drop over long cable runs means the battery seldom reaches full charge, and a lithium battery in particular cannot safely take a raw, unregulated alternator feed. A DC-DC charger fixes both problems: it lifts and regulates the voltage so the house battery genuinely reaches 100%, and it limits current so neither the battery nor the alternator is stressed. On a long haul to the Kalahari or up the West Coast, that is the difference between arriving with a full bank and arriving with a battery sitting at 70%.

Key Features

• 60A rated charge current – up to 750W of charging while driving, so a decent-sized house bank refills in a few hours on the road rather than a full day.
• Smart 3-stage charging – bulk, boost and float stages take the battery to a true 100% instead of a partial surface charge.
• Wide 8–16V input range – keeps charging steadily even when alternator voltage sags under load or over a long cable run.
• Traditional and smart alternator support – works with modern Euro 6 variable-voltage alternators found in newer bakkies and vans.
• Six voltage profiles via DIP switch – five gears plus a lead-acid/lithium selector (SW5), so you set it correctly for your specific battery chemistry.
• Isolated input and output – keeps the house circuit electrically separated from the vehicle circuit for safer, cleaner charging.
• D+ ignition sensing – the charger only runs once the engine is running, which prevents the starter battery being flattened while parked.
• LC current-limit input – an external signal wire can reduce charge current to protect the house battery in specific setups.
• Temperature compensation ready – accepts the optional Renogy battery temperature sensor at -3mV/°C/2V for lead-acid banks.
• Compact, robust housing – 311 x 175 x 68 mm and 2.4 kg, easy to mount under a bed base or in a battery locker.

Ideal For

• Off-road caravans and camper trailers running a dedicated house battery
• Bakkie canopy and 4x4 dual-battery builds
• Panel vans and self-built campers touring long distances
• Owners upgrading from lead-acid to lithium who need proper alternator charging
• Anyone whose vehicle has a modern smart alternator that a solenoid split-charge cannot handle

Local Support from 4Matt Campers

4Matt Campers is a Renogy dealer based in Cape Town, serving caravanners and overlanders throughout the Western Cape and delivering across South Africa. We build and service 12V systems every week, so if you are unsure whether the 60A CORE, a smaller unit or the REGO model suits your battery bank and alternator, phone us and we will work it out with you before you buy.

Technical Specifications

• Model: Renogy CORE 12V 60A DC-DC Battery Charger
• SKU: RNG-DCC1212-60-G1-SA
• System voltage: 12V DC
• Rated charge current: 60A
• Rated output: 750W
• Input voltage range: 8V – 16V
• Boost voltage: 14.1 – 14.7V
• Float voltage: 13.2 – 13.8V
• Charge stages: 3-stage (bulk, boost, float)
• Battery types: AGM, flooded, gel and lithium
• Idle power consumption: <0.4A
• Temperature compensation: -3mV/°C/2V with optional sensor (non-lithium only)
• Operating temperature: -20°C to +50°C
• Dimensions: 311 x 175 x 68 mm
• Weight: 2.4 kg
• Certification: CE, RoHS

What's Included

• 1 x Renogy CORE 12V 60A DC-DC Battery Charger

Optional Fitment & Upgrade Notes

• The D+ ignition cable is not included and must be connected — the charger will not power on without it. Renogy recommends 18–16 AWG copper cable.
• The LC current-limit cable is also not included; use 18–16 AWG copper cable if your setup requires it.
• The Renogy battery temperature sensor is sold separately and is not compatible with lithium batteries.
• Main battery cabling should be sized for 60A over the full run length — on long caravan installations this usually means heavy gauge cable and correctly rated fusing at both battery ends.
• Set the DIP switches to match your battery chemistry before first use; SW5 selects between lead-acid and lithium.
• Mount in a dry, ventilated location with clearance around the housing for heat dissipation.

Complete Your Setup

• Lithium Batteries
• Solar Charge Controllers
• Solar Panels
• Electrical Accessories
• Renogy Range

FAQ

Why can't I just connect my lithium battery to the alternator with a solenoid?
A lithium battery will accept as much current as the alternator can give, which can overload the alternator, and the alternator's fixed voltage will not charge the battery correctly. A DC-DC charger limits current to a safe 60A and applies the right lithium voltage profile.

Will this work with my newer bakkie's smart alternator?
Yes. The CORE 60A supports both traditional and smart (variable voltage) alternators, and its 8–16V input range keeps it charging even when the alternator drops its output voltage.

Does it have Bluetooth or an app?
No. The CORE 60A is a straightforward DIP-switch configured charger with LED status indication. If you want app monitoring, look at the Renogy REGO 12V 60A DC-DC charger instead.

Does it have a built-in solar MPPT input?
No. This model charges from the alternator only. Pair it with a separate Renogy MPPT solar controller if you also want solar input.

Will it drain my starter battery when the vehicle is parked?
No. The D+ ignition signal means the charger only operates once the engine is running, and idle draw is under 0.4A.
