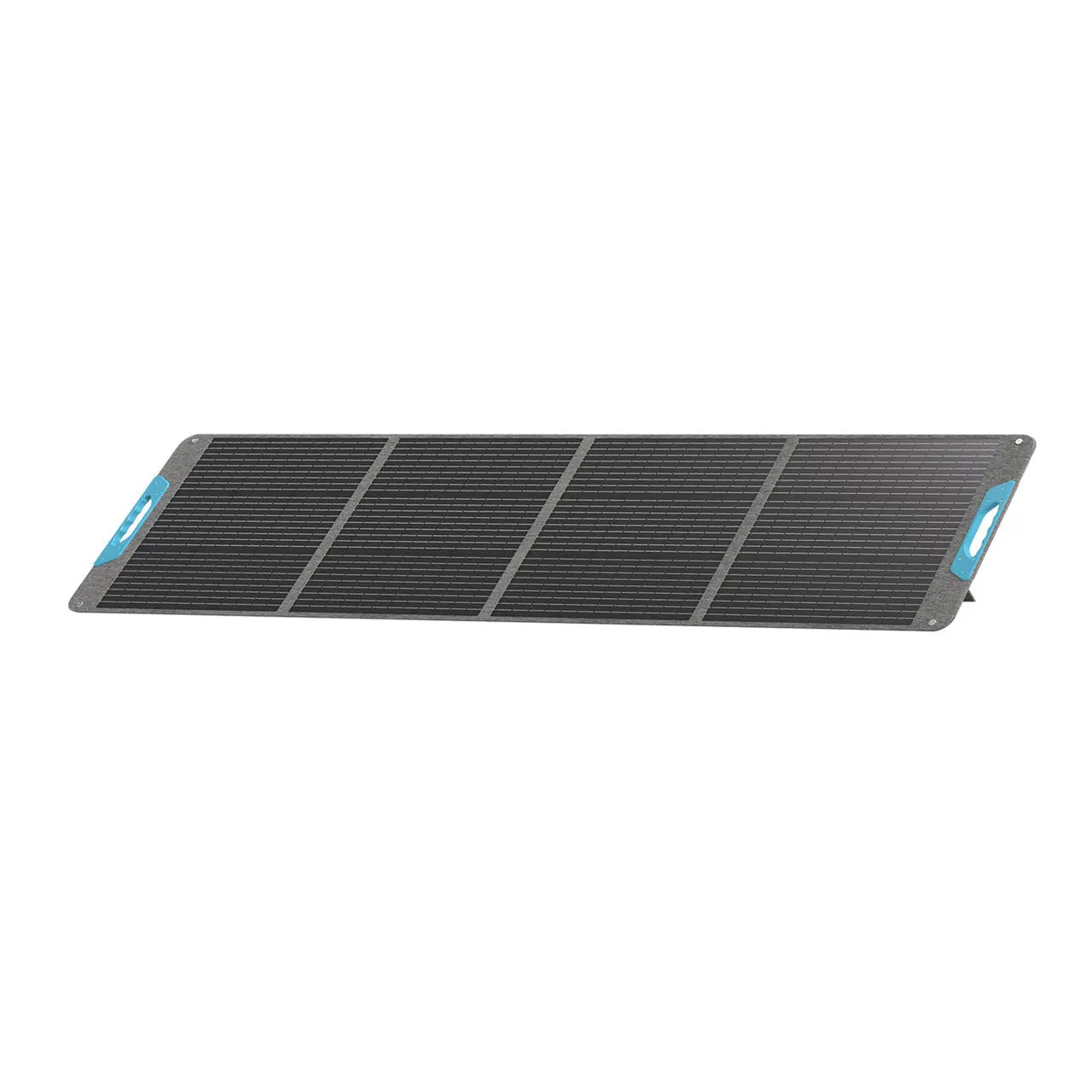

Renogy CORE 200W Portable Solar Panel

Short Product Summary

The Renogy CORE 200W is a four-fold portable solar panel that packs down to roughly the size of a briefcase and weighs 6.3 kg. It stands on its own adjustable kickstands, feeds a power station or a 12V battery bank through a charge controller, and charges phones and cameras directly off a 45 W USB-C port. No holes in your roof, no permanent install - you park where you want and put the panel where the sun is.

Why This Product

The everyday problem with roof-mounted solar is that the panel and the caravan have to be in the same place. On a hot Northern Cape afternoon you want the van under a tree and the panel out in the open, and a fixed panel simply cannot do both. A portable panel separates the two: park in the shade, walk the panel out into the sun on a 5 or 10 m extension lead, and reposition it two or three times a day to keep it square to the sun.

That flexibility is also why a portable panel can outperform its rating relative to a fixed one. A flat-mounted roof panel is at the wrong angle for most of the day. This one sits on three-position kickstands that set it between 40 and 60 degrees, so you can aim it properly morning and afternoon.

It is also the sensible answer for anyone who does not want to drill or bond anything to their caravan, canopy or roof tent - renters, people who change vehicles, or those who move the same panel between a camper, a boat and a home backup setup. The current version uses N-Type cells at 25% cell efficiency and is 13.89 lb / 6.3 kg, meaningfully lighter and more compact than the previous PERC generation.

Key Features

• Folds to 602.5 x 584 x 50 mm at 6.3 kg – it fits in a caravan locker or behind a seat, and one person can carry it in one hand.
• Three-mode adjustable kickstands, 40 to 60 degrees – aim the panel at the sun properly instead of leaving it flat and losing output all morning.
• Kickstands with stake holes – peg it down so a Cape southeaster does not fold your panel across the campsite (stakes not included).
• 25% efficiency N-Type cells – 200W out of a panel that is smaller and lighter than the older PERC version it replaces.
• 45 W USB-C output port – charge a phone, tablet, drone battery or camera straight off the panel with no power station in the loop.
• Solar (MC4-compatible) output on a 14 AWG lead – heavier cable means less voltage drop when you run the panel out away from the vehicle.
• IP65 dust and splash resistance – it handles dust and a passing shower; it is not made to be left out in a storm.
• Integrated protective folder with carry handles – the cover, cable pocket and handles are built into the panel, so there is no separate bag to lose.
• Mounting holes in each corner – tie it down to a rack, roof tent or fence with rope or straps when you cannot use the kickstands.

Ideal For

• Caravanners and campers who park in the shade and want the panel out in the sun.
• Portable power station owners looking for a proper 200W solar input rather than a small trickle panel.
• 4x4 and overland travellers who do not want roof penetrations or a permanent installation.
• Weekend and holiday campers who need solar a few times a year and would rather store it than mount it.
• Boat, fishing and hunting-camp use, and as a portable backup panel at home during outages.

Local Support from 4Matt Campers

4Matt Campers is a Renogy dealer in Cape Town, serving the Western Cape and delivering across South Africa. If you already own a power station, tell us the model and we will check its solar input voltage and current limits against this panel before you buy. If you are charging a 12V caravan battery instead, we will spec the right charge controller and extension lead to go with it so you are not left guessing on site.

Technical Specifications

• Model: Renogy CORE (E.Flex) 200W Portable Solar Panel
• SKU: RPP200EF-SE-G2-SA
• Maximum power at STC: 200 W
• Optimum operating voltage (Vmp): 18.8 V
• Optimum operating current (Imp): 10.6 A
• Open-circuit voltage (Voc): 21.6 V
• Short-circuit current (Isc): 11.3 A
• Cell type: N-Type monocrystalline
• Cell efficiency: greater than 25%
• Folded dimensions: 602.5 x 584 x 50 mm
• Unfolded dimensions: 2230 x 584 x 3 mm
• Weight: 6.3 kg
• Panel sections: 4 folding sections with integrated protective cover and carry handles
• Kickstands: 3-position adjustable, 40 to 60 degrees, with stake holes
• Output cable: 14 AWG with solar (MC4-compatible) connectors
• USB output: 45 W USB-C port
• Water and dust rating: IP65
• Operating temperature: -10 degC to +65 degC
• Charge controller: not included

What's Included

• 1 x Renogy CORE 200W portable solar panel with integrated cover, carry handles and kickstands
• 1 x attached output lead with solar connectors
• User manual and warranty documentation

No charge controller, extension lead, power-station adaptor cable or ground stakes are supplied with this panel.

Optional Fitment & Upgrade Notes

How you connect this panel depends on what you are charging. Into a portable power station, the panel's solar leads go to the station's DC solar input - check that the station accepts at least 21.6 V and 11.3 A, and order the correct adaptor cable for its input socket, because they differ between brands. Into a 12V battery bank, the panel must go through a solar charge controller. It never connects straight to a battery: a panel left connected directly will overcharge and ruin the battery. A PWM controller will work at this panel's 18.8 V Vmp, but an MPPT controller will still return more charge, particularly in weak morning and late-afternoon light.

The one accessory almost everyone ends up buying is an extension lead - the whole point of a portable panel is putting it where the vehicle is not, and a 5 m or 10 m solar extension lead makes that practical. Ground stakes for the kickstands are worth adding if you camp anywhere windy. If you already have a caravan-mounted controller, we can supply a bulkhead-mounted solar inlet socket so you can plug the panel into the side of the van without running cable through a window.

Complete Your Setup

Build the rest of the system around it: Solar Charge Controllers to charge a battery safely, Lithium Batteries for storage, Inverters & Inverter Chargers to run 230V appliances, and Electrical Accessories for extension leads, connectors and inlet sockets. The full range lives in our Renogy collection.

FAQ

Does this panel come with a charge controller?
No. The panel is supplied on its own with its output lead and solar connectors. If you are charging a 12V battery you need a separate solar charge controller; if you are charging a portable power station, its built-in controller does the job.

Can I connect it straight to my caravan battery?
No. It must go through a charge controller. A panel wired directly to a battery has nothing regulating the voltage or ending the charge, and will damage the battery.

Will it charge my power station?
In most cases yes, provided the station's solar input accepts up to 21.6 V and 11.3 A. Send us your power station model and we will confirm the compatibility and the adaptor cable you need before you order.

How far from the caravan can I put it?
As far as your extension lead allows, within reason. The 14 AWG output lead keeps losses down, and a 5 to 10 m solar extension is normal. Longer runs mean more voltage drop, so step up the cable size if you want to go further.

Can I leave it out overnight or in the rain?
It is IP65 rated for dust and splashing water, so a light shower will not hurt it. We would still fold it away in heavy rain or strong wind, and peg the kickstands down whenever you leave it standing.
