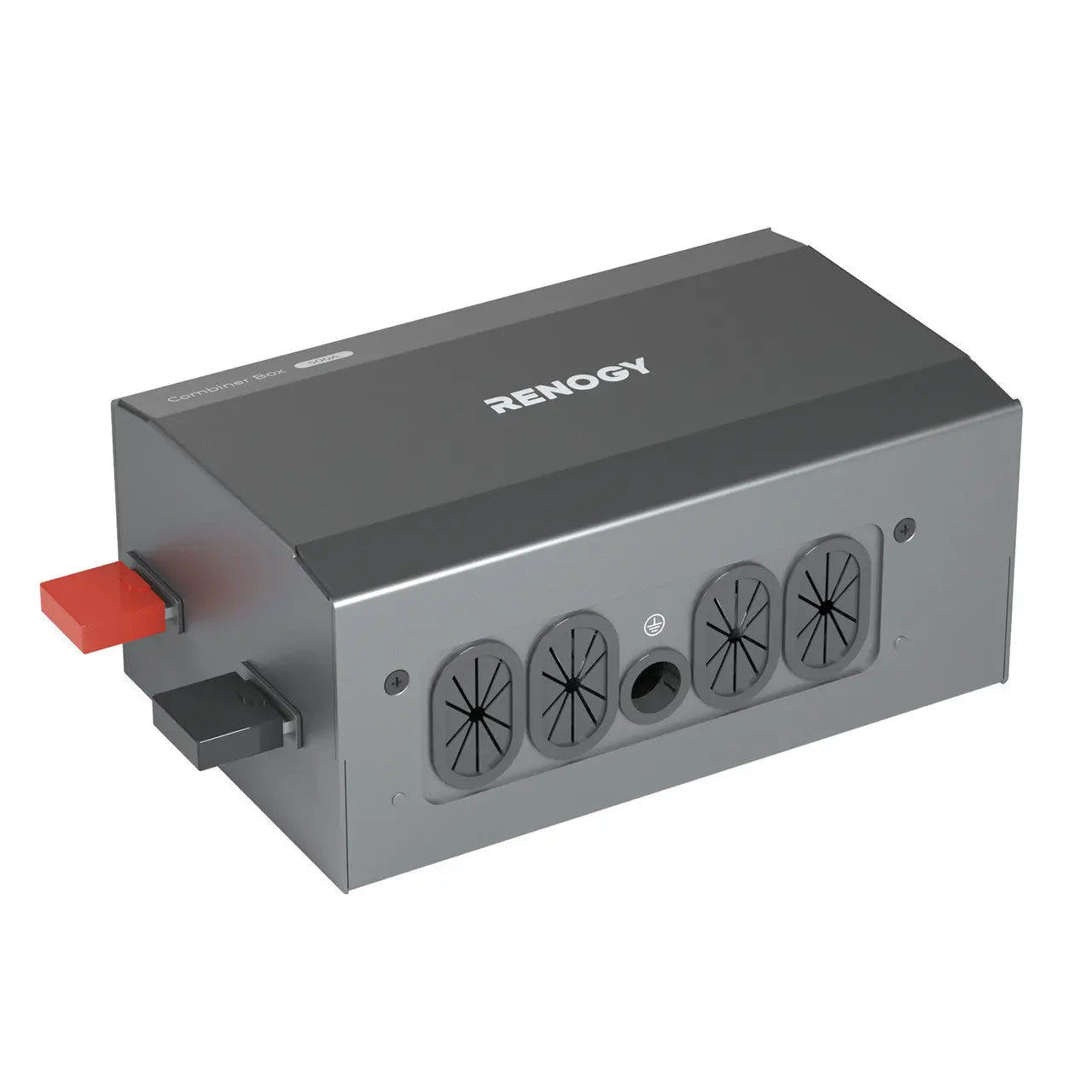

Renogy REGO 500A Combiner Box

Short Product Summary

A 500A combiner box that turns the messiest part of a caravan electrical system — the pile of cables converging on the battery terminals — into a clean, enclosed, properly torqued busbar assembly. It carries tinned copper busbars of 4 × 30mm with M8 studs inside a sheet metal enclosure, is rated 9-60Vdc at 500A continuous, and measures 263 × 160 × 100mm at 2.6kg.

Why This Product

Open any caravan or off-road trailer battery box that has been added to over a few seasons and you will find the same thing: five or six lugs stacked on one battery post, a stud that has been retorqued so many times it no longer holds, and cable tails at every angle. It works, right up until a gravel road shakes something loose and you get a hot joint, a voltage drop, or worse.

A combiner box solves that with hardware rather than hope. Every positive and negative cable lands on a proper tinned copper busbar with an M8 stud and a specified torque, inside a metal enclosure that keeps grit, tools and stray spanners away from live copper. Adding a second battery, an inverter, a DC-DC charger or a solar controller later becomes a five-minute job on a labelled stud instead of another lug on the pile.

The 500A rating is what makes it appropriate for a modern lithium system. Once you have a large LiFePO4 bank feeding an inverter, a fault current or an inverter surge is not a theoretical number — the copper has to be genuinely capable of it. 4 × 30mm tinned busbar is a serious cross-section, and tinned copper resists the corrosion that coastal Cape air and dusty Kalahari trips will otherwise work into a bare connection.

Be clear about what it is, though: this is a distribution and connection point, not a fuse box. It combines and busses cable; it does not protect the circuits landing on it. Every branch off the busbar still needs its own correctly rated fuse or breaker. Fit it as part of a properly designed system and it is one of the highest-value, least glamorous upgrades you can make.

Key Features

• 500A continuous rating – sized for large lithium banks feeding inverters, where the current is real and not nominal.
• Tinned copper busbars, 4 × 30mm – substantial cross-section, and tinned to resist the corrosion that coastal and dusty conditions cause on bare copper.
• M8 stud terminals – standard lug size for heavy cable, torqued to 8 N·m so joints stay tight through gravel-road vibration.
• 9-60Vdc voltage range – suits 12V, 24V and 48V systems, so it does not become obsolete if you step the caravan up later.
• Enclosed sheet metal housing – keeps grit, dropped tools and curious hands away from live copper in a battery box or under a bunk.
• IP22 protection rating – appropriate for an enclosed, protected installation location.
• -20°C to 60°C operating range – comfortable in a Kalahari battery box in summer and a Sutherland one in winter.
• Compact 263 × 160 × 100mm footprint – fits inside most caravan battery compartments or under-bunk electrical bays.
• Tidy, expandable layout – add an inverter, a DC-DC charger or a second bank later without disturbing existing connections.

Ideal For

• Caravan and off-road trailer owners upgrading to a large lithium bank with an inverter
• Anyone tidying up a battery box that has grown five lugs deep on one terminal
• Overland and 4x4 canopy builds that need a clean, serviceable central connection point
• Installers who want repeatable, torqued, inspectable joints rather than stacked lugs
• Owners planning to expand a 12V system in stages over several seasons

Local Support from 4Matt Campers

4Matt Campers is a Renogy dealer in Cape Town, serving the Western Cape and delivering across South Africa. We build 12V systems on caravans, off-road trailers and campers, and a combiner box is one of the first things we specify when a system grows past a single battery and a solar controller.

Send us a photo of your current battery box and a list of what is connected. We will tell you whether a 500A combiner is the right size, what cable and lug sizes you need, and — just as importantly — where the fusing has to go so the busbar is not carrying unprotected branches. If you are outside the Cape, we will spec the whole thing remotely and ship it.

Technical Specifications

• Model – REC500CB-98-G1
• SKU – REC500CB-98-G1-SA
• Brand – Renogy
• Rated current – 500A
• Voltage range – 9-60 Vdc
• Connector – M8 busbar studs
• Busbar material – tinned copper
• Busbar dimensions – 4 × 30 mm
• Recommended terminal torque – 8 N·m (70.8 in·lbs)
• Enclosure material – sheet metal
• Enclosure dimensions – 263 × 160 × 100 mm
• Unit weight – 2.6 kg
• Protection class – IP22
• Operating temperature – -20°C to 60°C
• Storage temperature – -40°C to 80°C
• Humidity – 0-99% RH, non-condensing
• Certification – RoHS compliant; manufactured in an ISO 9001 certified facility

What's Included

• Renogy 500A combiner box × 1

Cable, lugs, fuses and mounting hardware are not included — they depend entirely on your system. We will quote the correct set alongside the box.

Optional Fitment & Upgrade Notes

Fuse the branches, not the busbar. A combiner box is a connection point, not protection. Every circuit leaving it — inverter, DC-DC charger, solar controller, distribution to loads — needs its own correctly rated fuse or breaker as close to the busbar as practical, and the battery itself needs a main fuse or class-T device on the positive.

Match your cable and lugs to the M8 studs and to the actual current each branch will carry, not to what happens to be in the spares box. Undersized cable on a 500A-capable busbar is the classic mistake and it turns into a hot joint on a long gravel run.

Torque properly at 8 N·m and use a torque wrench rather than judgement. Then check the joints again after your first couple of thousand kilometres of gravel — corrugations loosen everything, and a slightly loose 500A joint gets hot before it gets obvious. Label each stud while you are building, because in two years you will not remember which tail goes where.

Mount it somewhere protected, ventilated and reachable. IP22 means it is designed for an enclosed installation, not for being bolted to an exposed chassis rail where it will take road spray. A battery box, a nose cone or an under-bunk electrical bay is ideal.

Complete Your Setup

A combiner box is the hub; the rest of the system plugs into it. Add capacity from Lithium Batteries, harvest from Solar Panels through a matched Solar Charge Controller, and get the cable, lugs, fuses and breakers you need in Electrical Accessories. Browse the complete Renogy range to build the whole system on one ecosystem.

FAQ

Does the combiner box protect my circuits?
No. It combines and distributes, and it does not fuse anything. Each branch leaving the busbar still needs its own correctly rated fuse or breaker, and the battery needs a main protective device. Anyone who tells you otherwise is misreading what the product is.

Is 500A overkill for a caravan?
Not once you are running a decent lithium bank with an inverter. Inverter surge and potential fault currents are what set the rating, not your everyday load. Buying headroom here is cheap compared to replacing a melted busbar, and it means the box survives your next upgrade.

Will it work on a 24V or 48V system?
Yes. It is rated 9-60 Vdc, so it covers 12V, 24V and 48V installations. That is worth knowing if there is any chance you will step the system up in future.

Where should I mount it?
Somewhere enclosed, ventilated and accessible — a battery box, nose cone or under-bunk electrical bay. Its IP22 rating means it is designed for a protected location, so do not bolt it to an exposed chassis rail where it will take road spray and grit.

Can 4Matt Campers supply the cable and fuses to go with it?
Yes. Send us a list of everything connecting to it and we will specify cable sizes, lug sizes, fuse ratings and mounting, and quote the lot as one job. We are in Cape Town, we cover the Western Cape and we deliver across South Africa.
