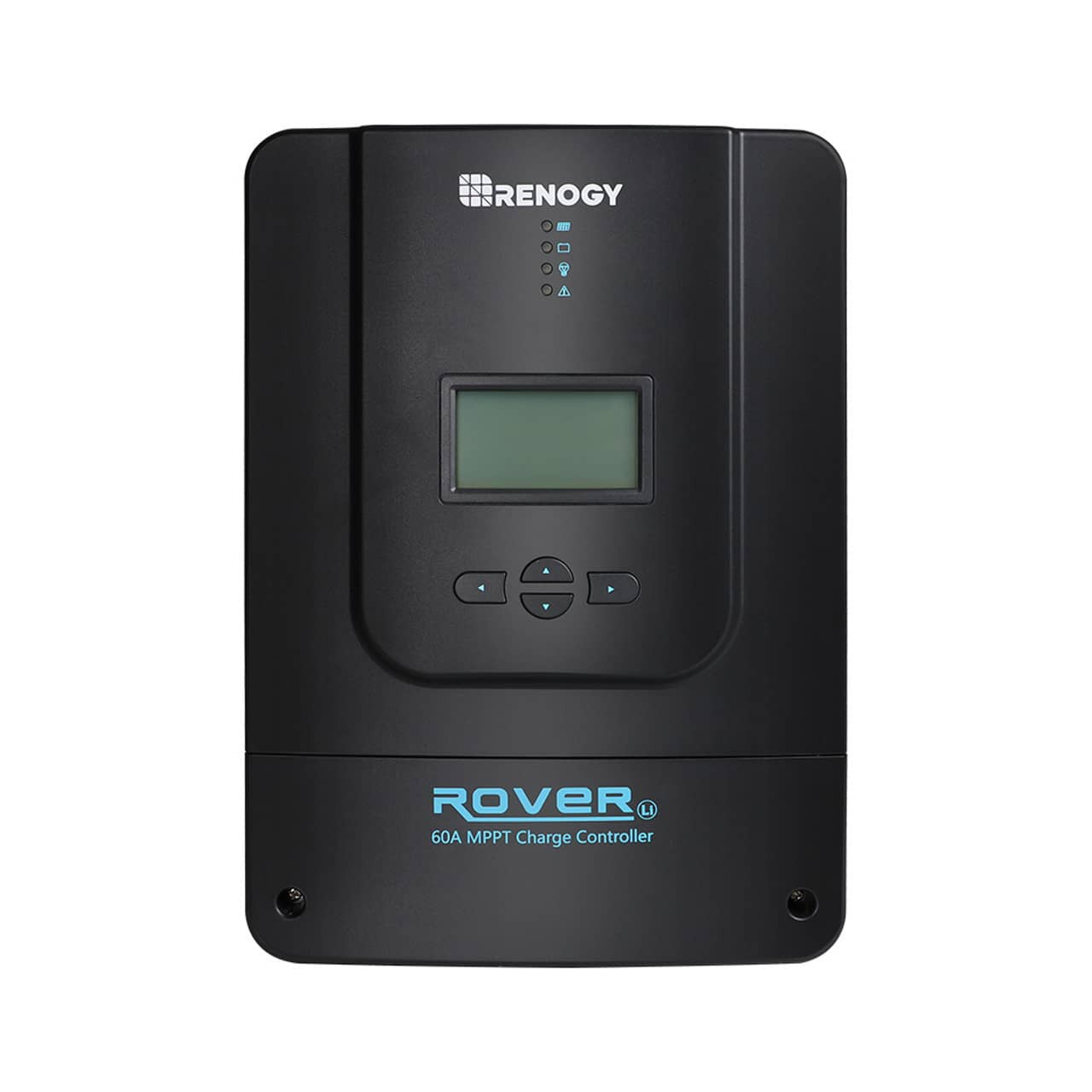

Renogy Rover 12V 60A MPPT Solar Charge Controller

Short Product Summary

The Renogy Rover 60A MPPT solar charge controller is a heavy-duty regulator for larger 12 V off-grid systems, with automatic 12 V / 24 V / 36 V / 48 V recognition, a 150 V maximum solar input and 99% MPPT tracking efficiency. It handles up to 800 W of solar on a 12 V caravan or camper system, with an informative LCD, a switchable load output and an external battery temperature sensor included.

Why This Product

When your rooftop array grows past a couple of panels, the regulator becomes the bottleneck. The Rover 60A gives you real headroom: 60 A of charge current, a 150 V input ceiling that lets you wire panels in series, and 97% conversion efficiency so very little of your harvest is lost as heat. The high input voltage is the quiet advantage on a caravan or camper. Series wiring means thinner cable over long roof runs and better performance on overcast Cape mornings, when a lower-voltage controller would still be waiting to wake up.

Key Features

• 60 A charge current – enough for large rooftop arrays and fast recharging of substantial battery banks.
• 150 V maximum PV input – wire panels in series to cut cable losses on long roof and A-frame runs.
• Up to 800 W solar at 12 V – and 1,600 W at 24 V if you ever move to a higher system voltage.
• Automatic 12 V / 24 V / 36 V / 48 V detection – one controller that grows with your system.
• 99% MPPT tracking and 97% conversion efficiency – very little of your solar harvest is wasted.
• 4-stage intelligent charging – with presets for lithium, sealed, AGM, flooded and gel batteries.
• Switchable load terminal – run 12 V DC appliances directly from the controller, up to 20 A.
• External temperature sensor included – compensates charging in cold and hot weather so the battery is neither under- nor over-charged.
• Clear LCD with self-diagnostics – live system data and error reporting without needing a phone.
• Full protection suite – reverse polarity, short circuit and over-temperature protection built in.

Ideal For

• Off-road caravans and overland campers with 400 W to 800 W of rooftop solar.
• Systems using series-wired panels where input voltage climbs well above 12 V.
• Motorhome and 4x4 conversions running fridges, inverters and lithium banks.
• Owners who want room to expand the array later without replacing the regulator.
• Installations where a clear on-unit display is preferred to an app-only controller.

Local Support from 4Matt Campers

4Matt Campers is a Renogy dealer in Cape Town, looking after customers across the Western Cape and delivering throughout South Africa. We can size your array to this controller, advise on series versus parallel panel wiring, and make sure your cable and fusing are correct for 60 A. Visit the showroom or send us your setup details and we will give you a straight answer on what you need.

Technical Specifications

• Model: Rover 60A MPPT
• SKU: RNG-CTRL-RVR60-G1-SA
• Rated charge current: 60 A
• System voltage: 12 V / 24 V / 36 V / 48 V automatic detection
• Maximum PV input voltage: 150 V DC at 25 °C; 140 V DC at -25 °C
• Maximum PV input power: 800 W at 12 V; 1,600 W at 24 V; 2,400 W at 36 V; 3,200 W at 48 V
• MPPT tracking efficiency: 99%
• Peak conversion efficiency: 97%
• Charging stages: 4-stage intelligent charging
• Supported battery types: Lithium, Sealed, AGM, Flooded, Gel
• Load output: switchable 12 V DC, up to 20 A
• Temperature sensor: external battery temperature sensor included
• Operating temperature: approximately -40 °C to 65 °C
• Display: LCD with system data, settings and self-diagnostics
• Protection: reverse polarity, short circuit, over-temperature

What's Included

• 1 × Renogy Rover 60 A MPPT solar charge controller
• 1 × external battery temperature sensor
• 1 × user manual

Optional Fitment & Upgrade Notes

• Total array open-circuit voltage must stay below 150 V in the coldest conditions you expect; panel Voc rises as temperature drops.
• Add a Renogy BT-2 Bluetooth module if you would like phone monitoring alongside the built-in LCD.
• The load terminal is handy for lights and small DC loads, but run fridges and inverters directly off the battery through their own fusing.
• Fit correctly rated cable and fusing for 60 A between controller and battery; ask us if you are unsure of the gauge.
• Pairs well with a DC-DC charger so alternator and solar charging work together on long touring days.

Complete Your Setup

• Solar Panels – rigid, flexible and portable panels to build your array.
• Lithium Batteries – LiFePO4 banks suited to a 60 A charge rate.
• 12V Electrical Accessories – cable, fuses, shunts and monitors.
• Renogy Range – the full Renogy line-up at 4Matt Campers.

FAQ

How much solar can I connect?
Up to 800 W on a 12 V system. The other limit is voltage: keep total array open-circuit voltage under 150 V, allowing for the rise on cold mornings.

Can I wire my panels in series?
Yes, and with a 150 V input ceiling that is often the better choice. Series wiring reduces current in the cable, which means less voltage drop over a long run.

Does it support lithium batteries?
Yes. It has a lithium preset alongside sealed, AGM, flooded and gel profiles.

Can I monitor it from my phone?
The controller has a built-in LCD. Add a Renogy BT-2 Bluetooth module if you also want app monitoring.

What is the load terminal for?
It lets you switch 12 V DC loads such as lighting directly from the controller, up to 20 A.
