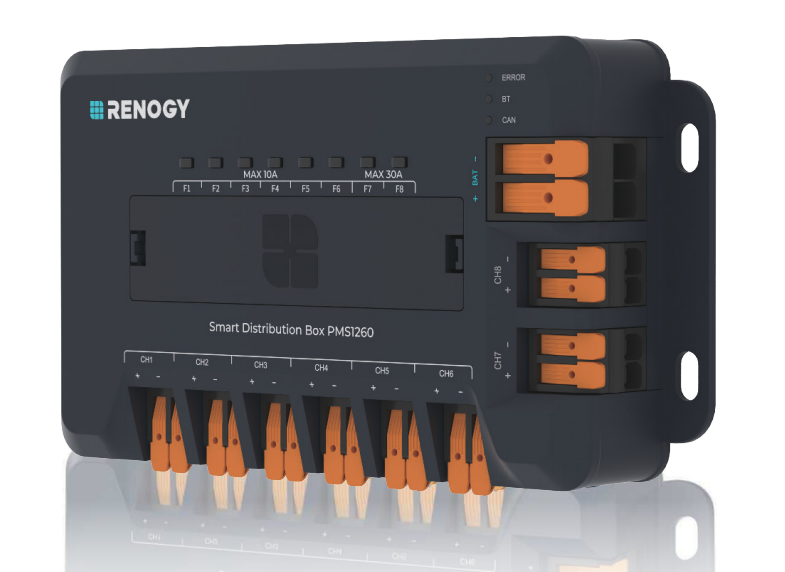

Renogy Smart Distribution Box PMS1260 12V/24V 60A

Short Product Summary

The Renogy Smart Distribution Box PMS1260 is a centralised DC power hub for caravans, campers and motorhomes. It manages 8 DC loads — six 10A channels and two 30A channels — up to a total of 60A, on either a 12V or 24V system, with Bluetooth and CAN monitoring built in.

Why This Product

Most caravan wiring grows one circuit at a time until nobody can trace it. The PMS1260 replaces that mess with one hub: every load fused, switchable and individually monitored, with automatic low-voltage shutdown protecting the battery. You can see and switch each circuit from the Renogy app, a Renogy ONE Core or a ONE Vision display instead of crawling under a bed with a multimeter.

Key Features

• 8 switchable DC loads – six 10A channels plus two 30A channels, 60A total
• Bluetooth, CAN and RS-485 – monitor and configure from the app or a Renogy ONE display
• Battery protection – automatic low-voltage shutdown and high-voltage reconnect
• Two water-tank sensor inputs – resistive level senders for fresh or grey tanks
• Remote inverter control – switch a compatible inverter without leaving the bunk
• Scene automation – group loads into scenes in the Renogy app
• LED status per circuit – see at a glance which channel is live

Ideal For

• Caravan, camper and motorhome 12V rewires
• Boats and off-grid cabins running multiple DC circuits
• Anyone adding tank-level monitoring to an existing build
• Builds already running a Renogy ONE Core or ONE Vision

Local Support from 4Matt Campers

4Matt Campers is a Renogy dealer in Cape Town. Bring us your build and we'll spec and fit the whole 12V system.

Technical Specifications

• Brand: Renogy
• Model: PMS1260 (RSHCB-B02P)
• System voltage: 12V / 24V DC
• Maximum input: 60A
• Channels: 6 × 10A + 2 × 30A (8 loads)
• Communication: Bluetooth, CAN, RS-485
• Water level sensors: 2 × resistive
• Remote inverter control: Yes
• Operating temperature: −20°C to 60°C
• Humidity: 0–95% RH, non-condensing
• Dimensions: 221 × 118 × 42.8 mm
• Weight: 501.5 g
• Certification: RCM, CE, RoHS, R10
• Warranty: 5 years

What’s Included

• 1 × Renogy Smart Distribution Box PMS1260
• 1 × RJ45 CAN termination resistor
• 4 × mounting screws
• 1 × user manual

Optional Fitment / Upgrade Notes

Water-level senders and the Renogy ONE Core or ONE Vision display are sold separately. If you are running a bigger system, the 80A / 12-load PMS1280 is the larger sibling — ask us which suits your load list.

Complete Your Setup

Browse the full Renogy range, our 12V electrical & power gear and lithium batteries.

FAQ

How many circuits can I run?
Eight — six rated 10A and two rated 30A, with a 60A total across the box.

Does it work on 24V?
Yes, it supports both 12V and 24V DC systems.

Can I switch loads from my phone?
Yes. Bluetooth gives short-range control from the Renogy app; a Renogy ONE Core adds long-range access over CAN.

Does it come with the water tank senders?
No — the box has two sensor inputs, but the resistive level senders are sold separately.

How is this different from the PMS1280?
The PMS1280 is the larger unit: 80A across 12 channels. This PMS1260 handles 60A across 8.
