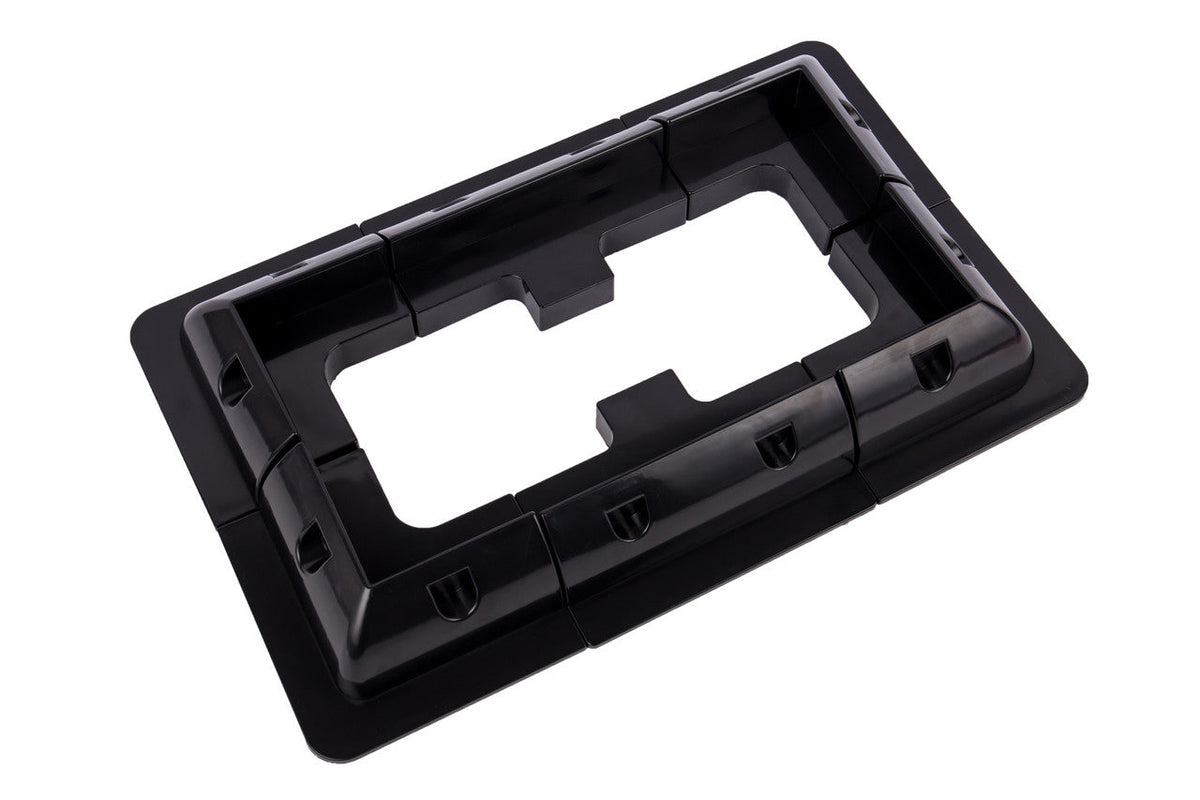

Renogy Solar Panel Drill-Free Corner Bracket Mount Set

Short Product Summary

The Renogy Corner Bracket Mount Set is the standard way to fix a rigid solar panel to a caravan, camper or canopy roof without drilling holes through it. The brackets bolt to the panel frame and bond to the roof with a suitable structural adhesive, giving you a low-profile mount that will not leak.

Why This Product

Every hole you put through a caravan roof is a future leak waiting for the right rainstorm. That is not a theoretical worry in South Africa, where a roof bakes and expands all summer and then gets hit by Cape winter rain. Adhesive-mounted corner brackets avoid the problem entirely: no penetration, no sealant to crack, no screw to work loose on corrugations. They also sit low, which keeps the panel out of the wind and stops it acting like a sail on the N1. For most fixed-panel installations on a fibreglass, aluminium or composite roof, these brackets are the correct answer rather than a compromise.

Key Features

• Drill-free installation – bonds to the roof so you never pierce the waterproof layer.
• Low profile – keeps the panel close to the roof, reducing wind load and drag.
• Bolts to the panel frame – uses the panel's existing mounting holes.
• Corner-mount design – supports the panel at its strongest points.
• Suits rigid framed panels – the standard mounting solution for Renogy rigid modules.
• Set of brackets – supplied as a set for mounting one panel.

Ideal For

• Fixing rigid solar panels to caravan and camper roofs without drilling.
• Fibreglass, aluminium and composite roofs where penetrations are a bad idea.
• Bakkie canopies and off-road trailer lids.
• Anyone who has already had a roof leak and does not want another.
• Retrofitting solar to a vehicle still under warranty.

Local Support from 4Matt Campers

We ship Renogy components anywhere in South Africa. We mount panels on our own campers, so we can tell you which adhesive works on your particular roof material and how to prepare the surface properly, which is the part most people get wrong. Come through to the showroom and look at a finished installation, or call us and we will talk you through it.

Technical Specifications

• Model: RNG-MTS-CB
• SKU: RNG-MTS-CB-G1-SA
• Type: Corner bracket mount set for rigid solar panels
• Installation method: Adhesive bonded, no roof penetration required
• Profile: Low profile
• Application: Framed rigid solar panels

What's Included

• 1 x Renogy corner bracket mount set with fixing hardware

Structural adhesive and surface preparation materials are not included. Confirm the exact bracket count with us at time of order.

Optional Fitment & Upgrade Notes

The bracket is only as good as the bond, so surface preparation is everything. Clean the roof back to sound material, degrease it, abrade where the adhesive manufacturer says to, and use a structural adhesive rated for the roof material and for permanent outdoor UV exposure. Do not use a general-purpose silicone. Let the adhesive cure fully before driving, not just before it feels firm. Think about cable entry at the same time: if you have avoided drilling for the brackets, use a proper waterproof roof gland for the cable rather than undoing all your good work with a rough hole. On very large panels or heavily corrugated routes, additional mid-span support may be worth discussing.

Complete Your Setup

Choose the panel itself from our solar panels range and a matched unit from our solar charge controllers collection. Store the energy in a bank from our lithium batteries range, add 230V from our inverters and inverter chargers, and get MC4 leads, glands, connectors and fuses from our electrical accessories collection. The full range is in our Renogy collection.

FAQ

Do I really not need to drill?
Correct, that is the point of the design. The brackets bond to the roof with structural adhesive. Surface preparation and the right adhesive are what make it hold.

Which adhesive should I use?
It depends on your roof material. Talk to us with the make of your caravan or the roof construction and we will point you at something appropriate rather than guessing.

Will it hold at highway speed?
Properly bonded to a well-prepared surface, yes. The low profile keeps wind load down. A poorly prepared bond is what fails, not the bracket.

Will these fit my panel?
They are made for framed rigid panels and use the frame's existing mounting holes. Send us your panel model and we will confirm.

Can I use them on a flexible panel?
No. Flexible panels have no frame to bolt to and are bonded directly. These brackets are for rigid framed modules.
