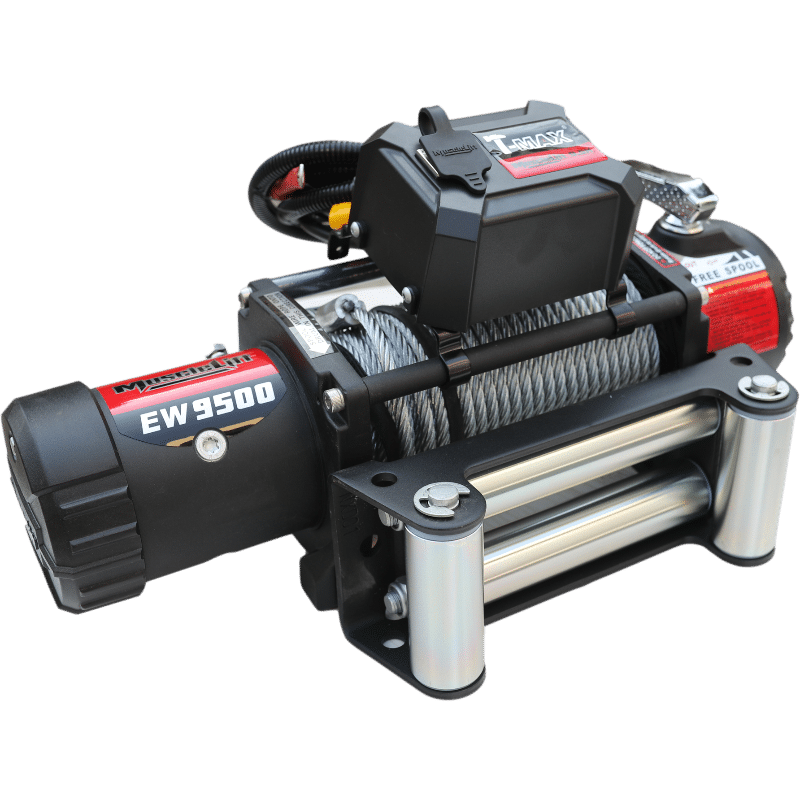

TMax Musclelift EW-9500 lbs Winch — Wire Rope

A carefully selected camping product from 4Matt Campers, prepared around fitment, stock, options and the way you plan to travel.

From R9 495.00

Add this product to your quote basket. 4Matt Campers confirms stock, fitment, freight/courier and final pricing before payment.

SKU: TM7329104

Genuine brand Expert fitment advice Options available 4Matt supported

WhatsApp about this product Call 4Matt Campers

No online payment is taken. 4Matt Campers confirms the final quote before you decide.

Overview

Compact, capable and easy to understand.

Product question

Ask about this product.

Send a product-specific question to 4Matt Campers. We will reply with stock, fitment, options, lead time or showroom guidance for this exact product.

Name Email Phone Town / City Vehicle, trailer, or caravan details Message

The Musclelift EW-9500 Winch is a powerful and reliable solution for off-road recovery and heavy-duty applications. Designed with precision engineering and robust materials, this winch ensures dependable performance in the most challenging conditions.

Key Features:

Impressive Pulling Capacity: Rated for a single-line pull of 9,500 lbs (4,309 kg), making it ideal for demanding recovery tasks.
High-Performance Motor: Equipped with a 6.6HP series wound motor available in both 12V and 24V options for consistent and efficient operation.
Advanced Gear System: Features a 3-stage planetary gear train with a 161.28:1 gear ratio for smooth and reliable performance.
Durable Wire Rope: Includes a 94 ft (28.5m) wire rope with a 5/16-inch diameter, ensuring strength and durability for heavy-duty use.
Precision Control: Comes with a 12-foot (3.7m) remote switch for safe and convenient operation.
Enhanced Safety: Automatic in-the-drum braking system ensures secure and controlled operation during recovery.
Robust Construction: Finished in black for a sleek look and built to withstand tough environments.
Compact and Sturdy Design: With overall dimensions of 20.83″ x 6.3″ x 7.8″ (529 x 160 x 196mm) and a weight of 77 lbs (35 kg), this winch is both durable and portable.

Technical Specifications:

Drum Size: Diameter 2.5 inches (63.5mm) x Length 8.75 inches (222mm)
Mounting Bolt Pattern: 10.00 x 4.50 inches (254.0 x 114.3mm)
Line Speed & Amp Draw (12V):
- No Load: 35.42 ft/min (10.8 m/min) at 80 amps
- 9,500 lbs Load: 6.89 ft/min (2.1 m/min) at 415 amps
Line Speed & Amp Draw (24V):
- No Load: 41 ft/min (12.5 m/min) at 48 amps
- 9,500 lbs Load: 11.81 ft/min (3.6 m/min) at 215 amps
Cable Capacity per Layer:
- 1st Layer: 16 ft (5m) at 9,500 lbs
- 4th Layer: 94 ft (28m) at 7,086 lbs
Recommended Battery: 650CCA minimum for optimal performance
Battery Leads: 72 inches (1.83m), 25mm²

What’s Included:

Musclelift EW-9500 Winch
94 ft Wire Rope
4-Way Roller Fairlead
Remote Control with 12 ft Lead

Whether you’re navigating rugged terrains, recovering vehicles, or tackling heavy-duty tasks, the Musclelift EW-9500 Winch is your trusted partner. Its combination of power, precision, and durability ensures you’re always prepared for the unexpected.
