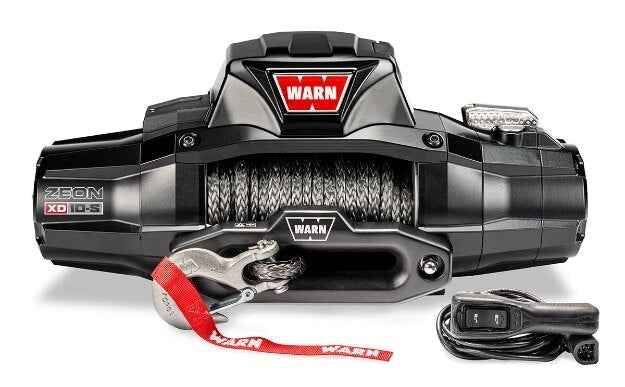

WARN ZEON XD 10-S Winch – 110010

Short Summary

The WARN ZEON XD 10-S is a premium 10,000lb recovery winch built for clients who want maximum reliability when the pull really matters. It includes 100’ of 3/8” WARN Spydura synthetic rope, a forged aluminium hawse fairlead, a corded waterproof remote, and a HUB wireless receiver for 100’+ wireless control when paired with the WARN HUB app.

Why This Product

When you’re deep into a route and conditions turn ugly, recovery gear isn’t a “nice-to-have”—it’s the difference between getting moving again or waiting for help. The ZEON XD range is built for those moments: serious waterproof sealing, high-performance internals, and an electrical system designed to work reliably under load. The XD 10-S adds modern convenience with HUB wireless readiness and a synthetic rope system that’s strong, easier to handle, and designed for harsh environments—so you can recover with confidence in the Western Cape and beyond.

Key Features

• 10,000lb (4536kg) rated line pull – strong recovery capacity for larger SUVs, Jeeps, and pickups
• Fast no-load line speed – up to 40 ft/min (12.19m/min) (supplier-stated)
• Premium sealing for harsh conditions – rated IP68 submersion + IP69K high-pressure spray for the entire unit
• Spydura synthetic rope included – 3/8” × 100’ (9.52mm × 30m) with heat-resistant inner wraps and abrasion sleeve
• HUB wireless ready – includes HUB receiver for 100’+ wireless control when paired with the WARN HUB app
• Waterproof corded remote – 12’ (3.7m) lead for reliable wired control
• High-performance series-wound motor – WARN high-performance design (supplier-stated)
• Albright contactor + OE-grade bus bars – built for electrical reliability and efficiency
• Full metal armour protection – protects components from impact and damage
• Upgraded corrosion resistance – 408-hour salt spray rating (supplier-stated)
• Premium hawse fairlead – black anodised, forged aluminium; upgraded black aluminium fairlead made from 6061-T6 billet (supplier-stated)
• Industry-leading warranty – limited lifetime mechanical + 7 years electrical

Fitment Note: Requires a compatible bumper or mounting plate for safe mounting. See 4Matt Campers Mounting & Protection options.

Ideal For

• Clients who want a premium winch for serious overlanding and remote travel in South Africa
• Vehicles that need a 10,000lb winch with high sealing and durability in water/dust exposure
• Coastal and winter travel in the Western Cape where salt air and wet conditions demand corrosion resistance
• Users who want wireless control capability (via HUB receiver + WARN HUB app) without sacrificing a corded remote
• Builds that prefer synthetic rope for handling and reduced weight compared to steel

Local Support from 4Matt Campers

4Matt Campers in Cape Town helps clients across the Western Cape plan a proper recovery system—correct winch sizing, safe mounting with the right bumper/plate, and power setup that matches real winching loads. We’ll guide you so your ZEON XD installation is clean, compatible, and ready for real-world recoveries in South Africa.

Technical Specifications

• Brand: WARN
• Product Category: Premium 4x4 Electric Winch / Vehicle Recovery
• Rated Line Pull (Single Line): 10,000lb (4536kg)
• No Load Line Speed: 40 ft/min (12.19m/min)
• Rated Load Line Speed: 5 ft/min (1.52m/min)
• No Load Motor Current: 64A
• Rated Load Motor Current: 458A
• Motor: 12V DC, series wound (WARN high-performance design)
• Electrical Controls: Contactor
• Wiring: Automotive OE-grade bus bars
• Corrosion Resistance: 408-hour salt spray
• Ingress Protection: IP68 submersion + IP69K high pressure spray (entire unit)
• Geartrain: 3-stage planetary
• Gear Ratio: 141:1
• Clutch / Free Spooling: Rotating ring gear with stainless steel clutch lever (manual)
• Brake: Automatic, six-segment mechanical cone
• Rope: 3/8” × 100’ (9.52mm × 30m) Spydura synthetic
• Fairlead: Black anodised, forged aluminium hawse
• Remote Control: Waterproof corded remote (12’ / 3.7m) + HUB wireless receiver
• Recommended Battery: 650 CCA minimum for winching
• Battery Leads: 2 gauge, 72” (1.83m)
• Finish: Satin-black powder coat
• Final Assembly: WARN facility, Clackamas, Oregon, USA
• Warranty: Limited lifetime mechanical + 7 years electrical
• Weight: 85lb (in box)
• SKU: 110010

What’s Included

• WARN ZEON XD 10-S winch (110010)
• WARN Spydura synthetic rope (3/8” × 100’)
• Black anodised forged aluminium hawse fairlead
• Waterproof corded remote (12’ lead)
• HUB wireless receiver (for use with WARN HUB app)
• Battery leads (2 gauge, 72”)
• Mounting hardware: (not specified in supplied text)

Optional Fitment / Upgrade Notes

• Mounting required: Needs a compatible bumper or mounting plate.
• Power planning: Rated load motor current is listed as 458A—your battery, cabling, isolation, earth points, and charging system must be sized accordingly.
• Wireless use: Wireless control requires pairing with the WARN HUB app (phone compatibility and app availability to be confirmed per device).
• Recovery safety: Always use rated recovery points and safe winching practices (gloves, dampers, correct rigging).

Want a premium, ultra-sealed 10,000lb winch installed properly for serious recovery work? Enquire now with 4Matt Campers in Cape Town for the WARN ZEON XD 10-S (110010) and we’ll help you plan the right mounting and power setup for your vehicle.

Complete Your Setup

Browse the full WARN winch range and all our 4x4 winches. A winch needs a compatible winch-ready bull bar and a complete recovery kit.

FAQ

Does the ZEON XD 10-S have wireless control?
Yes—this model includes the HUB receiver for 100’+ wireless control when paired with the WARN HUB app, and it also includes a corded remote.

How waterproof is this winch?
It’s rated for IP68 submersion and IP69K high-pressure spray testing for the entire unit (supplier-stated).

What rope and fairlead does it include?
It includes 100’ of 3/8” Spydura synthetic rope and a forged aluminium hawse fairlead.

What battery is recommended?
WARN recommends a minimum 650 CCA battery for winching.
