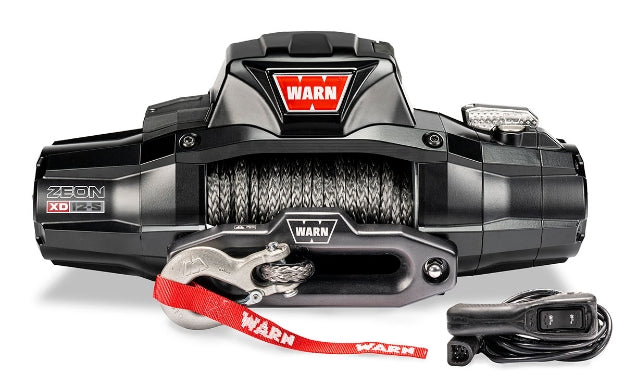

WARN ZEON XD 12-S Winch – 110012

Short Summary

The WARN ZEON XD 12-S is a premium 12,000lb recovery winch engineered for the moments when it simply has to work. It comes with 3/8” Spydura synthetic rope (80’), a forged aluminium hawse fairlead, a waterproof corded remote, and a HUB wireless receiver for 100’+ wireless control when paired with the WARN HUB app.

Why This Product

When you’re running a heavier vehicle or fully loaded touring rig, recoveries can be longer, heavier, and less forgiving. In those situations you need more than just pulling power—you need sealing, electrical reliability, and a system you can trust in water, dust, and harsh weather. The ZEON XD 12-S delivers premium performance and protection, with serious waterproof ratings, robust component armour, and modern control options—so you can tackle recoveries confidently across the Western Cape and beyond.

Key Features

• 12,000lb (5443kg) rated line pull – strong recovery capacity for heavy SUVs, pickups, and loaded overland rigs
• Premium sealing for harsh conditions – rated IP68 submersion + IP69K high-pressure spray for the entire unit
• Spydura synthetic rope included – 3/8” × 80’ (9.52mm × 24.38m) Spydura Pro synthetic with heat-resistant inner wraps and abrasion sleeve
• HUB wireless ready – includes HUB receiver for 100’+ wireless control when paired with the WARN HUB app
• Waterproof corded remote – 12’ (3.7m) lead for reliable wired control
• High-performance series-wound motor – WARN high-performance design (supplier-stated)
• Albright contactor + OE-grade bus bars – built for electrical reliability and efficiency
• Full metal armour – protects key components from impact and damage
• Upgraded corrosion resistance – 408-hour salt spray rating (supplier-stated)
• Premium hawse fairlead – black anodised, forged aluminium; upgraded fairlead made from 6061-T6 billet aluminium (supplier-stated)
• Industry-leading warranty – limited lifetime mechanical + 7 years electrical

Fitment Note: Requires a compatible bumper or mounting plate for safe mounting. See 4Matt Campers Mounting & Protection options.

Ideal For

• Clients running heavier SUVs, pickups, and loaded overland builds who want a premium 12,000lb winch
• Western Cape and South Africa travel where wet, dusty conditions make IP68/IP69K sealing valuable
• Coastal travel where corrosion resistance matters (408-hour salt spray rating)
• Users who want wireless control capability (via HUB receiver + WARN HUB app) plus a waterproof corded remote
• Builds that prefer synthetic rope + hawse fairlead for handling and modern recovery setups

Local Support from 4Matt Campers

4Matt Campers in Cape Town helps clients across the Western Cape plan a complete recovery system: correct winch sizing, proper mounting with a compatible bumper/plate, and power setup that matches real winching currents. We’ll guide you so your ZEON XD 12-S installation is safe, neat, and ready for serious recoveries in South Africa.

Technical Specifications

• Brand: WARN
• Product Category: Premium 4x4 Electric Winch / Vehicle Recovery
• Rated Line Pull (Single Line): 12,000lb (5443kg)
• No Load Line Speed: 31 ft/min (9.45m/min)
• Rated Load Line Speed: 3 ft/min (0.91m/min)
• No Load Motor Current: 67A
• Rated Load Motor Current: 466A
• Motor: 12V DC, series wound (WARN high-performance design)
• Electrical Controls: Contactor
• Wiring: Automotive OE-grade bus bars
• Corrosion Resistance: 408-hour salt spray
• Ingress Protection: IP68 submersion + IP69K spray testing (entire unit)
• Geartrain: 3-stage planetary
• Gear Ratio: 176:1
• Clutch / Free Spooling: Rotating ring gear with stainless steel clutch lever (manual)
• Brake: Automatic, six-segment mechanical cone
• Drum Diameter/Length: 3.15” / 9.0” (80mm / 229mm)
• Rope: 3/8” × 80’ (9.52mm × 24.38m) Spydura Pro synthetic
• Fairlead: Black anodised, forged aluminium hawse
• Remote Control: Waterproof corded remote (12’ / 3.7m) + HUB wireless receiver
• Recommended Battery: 650 CCA minimum for winching
• Battery Leads: 2 gauge, 72” (1.83m)
• Finish: Satin-black powder coat
• Final Assembly: WARN facility, Clackamas, Oregon, USA
• Warranty: Limited lifetime mechanical + 7 years electrical
• Weight: 85lb (in box)
• SKU: 110012

What’s Included

• WARN ZEON XD 12-S winch (110012)
• Spydura Pro synthetic rope (3/8” × 80’)
• Black anodised forged aluminium hawse fairlead
• Waterproof corded remote (12’ lead)
• HUB wireless receiver (for use with WARN HUB app)
• Battery leads (2 gauge, 72”)
• Mounting hardware: (not specified in supplied text)

Optional Fitment / Upgrade Notes

• Mounting required: Needs a compatible bumper or mounting plate.
• Power planning: Rated load motor current is listed as 466A—ensure your battery, cabling, earth points, isolation, and charging system are designed for serious winching.
• Wireless use: Wireless control requires the WARN HUB app (device compatibility and app availability to be confirmed per phone).
• Recovery safety: Use rated recovery points and safe winching practices (gloves, dampers, correct rigging).

Want a premium 12,000lb winch with serious sealing and modern control options, installed properly? Enquire now with 4Matt Campers in Cape Town for the WARN ZEON XD 12-S (110012) and we’ll help you plan the right mounting and power setup.

Complete Your Setup

Browse the full WARN winch range and all our 4x4 winches. A winch needs a compatible winch-ready bull bar and a complete recovery kit.

FAQ

Does the ZEON XD 12-S have wireless control?
Yes—this model includes the HUB receiver for 100’+ wireless control when paired with the WARN HUB app, and it also includes a waterproof corded remote.

How waterproof is this winch?
It’s rated for IP68 submersion and IP69K high-pressure spray testing for the entire unit (supplier-stated).

What rope does it include?
It includes 3/8” Spydura Pro synthetic rope in an 80’ length with heat-resistant inner wraps and an abrasion sleeve.

What battery is recommended?
WARN recommends a minimum 650 CCA battery for winching.
