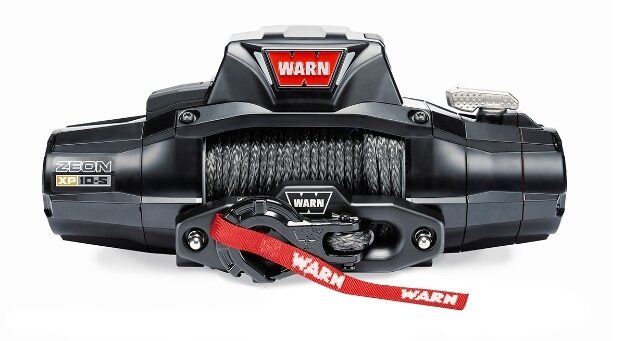

WARN ZEON XP 10-S Winch – 110100

Short Summary

The WARN ZEON XP 10-S is a top-of-the-line 10,000lb winch built for clients who want maximum control, speed, and sealing in a premium recovery setup. Ideal for lighter 1/2-ton pickups, Jeeps, and SUVs, it includes 100’ of 3/8” Spydura synthetic rope, a forged aluminium hawse fairlead, and a control pack with an integrated Bluetooth-enabled HUB wireless receiver plus sensors that monitor load, temperature, and battery voltage.

Why This Product

When it’s wet, dusty, and you’re stuck at an awkward angle, recovery isn’t just about pulling power—it’s about control and reliability. The ZEON XP range is built for clients who want a winch that responds fast, stays protected from the elements, and gives better feedback while working. With OEM-grade bus bars, premium sealing, an integrated wireless receiver, and load/temperature/voltage monitoring, the ZEON XP 10-S helps you recover with confidence—whether you’re touring the Western Cape or heading further into remote routes.

Key Features

• 10,000lb (4536kg) rated line pull – ideal recovery capacity for Jeeps, SUVs, and lighter 1/2-ton pickups
• Fast no-load line speed – up to 40 ft/min (12.19m/min) (supplier-stated)
• Premium sealing – IP68 submersion + IP69K high-pressure spray rating for the entire unit
• Spydura synthetic rope included – 3/8” × 100’ (9.52mm × 30m) for strength and easier handling
• Integrated HUB wireless receiver (Bluetooth-enabled) – built into the control pack for wireless control (app/device details to be confirmed)
• Winch monitoring sensors – continuously monitor load, temperature, and battery voltage (supplier-stated)
• Remote-operated clutch – clutch operated by button, with manual clutch lever override
• OEM-grade bus bars – efficient electrical connections with fewer exposed wiring points
• High-efficiency motor + geartrain – shared platform with ZEON XD for speed and performance
• Corrosion resistance – 408-hour salt spray rating (supplier-stated)
• Forged aluminium hawse fairlead – black anodised for corrosion and impact resistance
• Warranty – limited lifetime mechanical + 7 years electrical

Fitment Note: Requires a compatible bumper or mounting plate for safe mounting. See 4Matt Campers Mounting & Protection options.

Ideal For

• Clients wanting a premium 10,000lb synthetic winch for touring and overlanding in South Africa
• Jeeps, SUVs, and lighter 1/2-ton pickups needing fast line speed and strong control features
• Coastal and winter travel where water, salt, and grit demand serious sealing and corrosion resistance
• Builds that value wireless control and system monitoring (load/temperature/voltage)
• Drivers who want a winch with remote clutch control plus a manual override for peace of mind

Local Support from 4Matt Campers

4Matt Campers in Cape Town helps clients across the Western Cape plan a complete recovery system: correct winch sizing, proper mounting with the right bumper/plate, and a power setup that matches real winching current draw. We’ll guide you so your ZEON XP install is safe, neat, and ready for South African conditions.

Technical Specifications

• Brand: WARN
• Product Category: Premium 4x4 Electric Winch / Vehicle Recovery
• Rated Line Pull (Single Line): 10,000lb (4536kg)
• No Load Line Speed: 40 ft/min (12.19m/min)
• Rated Load Line Speed: 5 ft/min (1.52m/min)
• No Load Motor Current: 64A
• Rated Load Motor Current: 458A
• Motor: 12V DC, series wound (WARN high-performance design)
• Electrical Controls: Contactor
• Wiring: Automotive OE-grade bus bars
• Corrosion Resistance: 408-hour salt spray
• Ingress Protection: IP68 submersion + IP69K spray testing (entire unit)
• Remote Control: Corded remote with LED feedback light + Bluetooth-enabled HUB wireless receiver integrated into control pack
• Drum Diameter/Length: 3.15” / 9.0” (80mm / 229mm)
• Geartrain: 3-stage planetary
• Gear Ratio: 141:1
• Clutch / Free Spooling: Rotating ring gear with stainless steel clutch lever (manual + remote activated)
• Brake: Automatic, six-segment mechanical cone
• Rope: 3/8” × 100’ (9.52mm × 30m) Spydura synthetic
• Fairlead: Black anodised, forged aluminium hawse
• Recommended Battery: 650 CCA minimum for winching
• Battery Leads: 2 gauge, 72” (1.83m)
• Finish: Satin-black powder coat
• Final Assembly: WARN facility, Clackamas, Oregon, USA
• Warranty: Limited lifetime mechanical + 7 years electrical
• Weight: 85lb (in box)
• SKU: 110100

What’s Included

• WARN ZEON XP 10-S winch (110100)
• Spydura synthetic rope (3/8” × 100’)
• Black anodised forged aluminium hawse fairlead
• Corded remote with LED feedback light
• Integrated Bluetooth-enabled HUB wireless receiver (built into control pack)
• Battery leads (2 gauge, 72”)
• Mounting hardware: (not specified in supplied text)

Optional Fitment / Upgrade Notes

• Mounting required: Needs a compatible bumper or mounting plate.
• Power planning: Rated load motor current is 458A—your battery, cabling, earth points, isolation, and charging system must be sized for serious winching.
• Wireless control: Wireless use depends on device/app compatibility (to be confirmed).
• Remote clutch: Great for safer operation and convenience—manual clutch lever provides a mechanical backup.

Want premium performance and control in a 10,000lb winch? Enquire now with 4Matt Campers in Cape Town for the WARN ZEON XP 10-S (110100) and we’ll help you plan the right mounting and power setup for your vehicle.

Complete Your Setup

Browse the full WARN winch range and all our 4x4 winches. A winch needs a compatible winch-ready bull bar and a complete recovery kit.

FAQ

Does the ZEON XP 10-S have wireless control built in?
Yes—its control pack includes an integrated Bluetooth-enabled HUB wireless receiver, plus it also includes a corded remote with LED feedback.

How waterproof is this winch?
It’s rated for IP68 submersion and IP69K high-pressure spray testing for the entire unit (supplier-stated).

Does it have a remote-operated clutch?
Yes—there’s a remote-operated clutch with a push-button function, and a manual clutch lever as a mechanical override.

What battery is recommended?
WARN recommends a minimum 650 CCA battery for winching.
