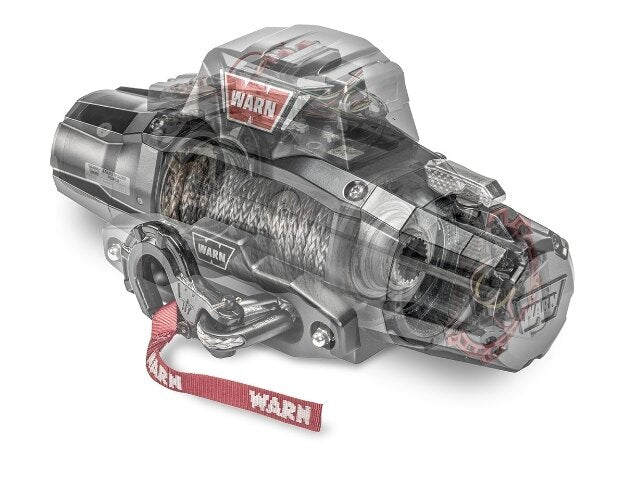

WARN ZEON XP 14-S Winch – 110140

Short Summary

The WARN ZEON XP 14-S is WARN’s top-tier 14,000lb winch for heavy, loaded-up trucks and SUVs—built for maximum pulling power with advanced control and premium sealing. It includes 80’ of 3/8” Spydura Pro synthetic rope, a forged aluminium hawse fairlead, and a control pack with an integrated Bluetooth-enabled HUB wireless receiver plus sensors that monitor load, temperature, and battery voltage.

Why This Product

When your vehicle is heavy and fully kitted, recovery is rarely gentle. You need pulling power that matches the rig, plus control features that reduce guesswork when loads are high. The ZEON XP 14-S is built to deliver that confidence: OEM-grade electrical connections, integrated monitoring sensors, remote clutch operation, and serious IP-rated sealing—so your winch is ready to work in dust, rain, and harsh South African conditions, from Western Cape trails to long-distance overlanding routes.

Key Features

• 14,000lb (6350kg) rated line pull – high pulling power for heavy SUVs and loaded trucks
• Premium sealing – IP68 submersion + IP69K high-pressure spray rating for the entire unit
• Spydura Pro synthetic rope included – 3/8” × 80’ (9.52mm × 24.38m)
• Integrated HUB wireless receiver (Bluetooth-enabled) – built into the control pack for wireless control (app/device details to be confirmed)
• Winch monitoring sensors – monitors load, temperature, and battery voltage (supplier-stated)
• Remote-operated clutch + manual override – push-button clutch operation with mechanical backup lever
• OEM-grade bus bars – efficient, protected electrical connections (less exposed wiring)
• High-efficiency motor + geartrain – shared platform with ZEON XD for performance
• Corrosion resistance – 408-hour salt spray rating (supplier-stated)
• Forged aluminium hawse fairlead – black anodised for durability and corrosion resistance
• Warranty – limited lifetime mechanical + 7 years electrical

Fitment Note: Requires a compatible bumper or mounting plate for safe mounting. See 4Matt Campers Mounting & Protection options.

Ideal For

• Clients running heavy SUVs, pickups, and large-frame rigs who need maximum pulling capacity
• Overland builds carrying serious weight (bumpers, drawers, long-range fuel, rooftop tents, etc.)
• Coastal and winter travel where water, salt, and grit demand strong sealing and corrosion resistance
• Drivers who want wireless control + monitoring feedback for safer, more controlled recoveries
• Builds that prefer synthetic rope + hawse fairlead for handling and modern recovery setups

Local Support from 4Matt Campers

4Matt Campers in Cape Town supports clients across the Western Cape with winch selection, mounting compatibility checks, and safe install planning—helping you match the ZEON XP 14-S to the right bumper/mounting plate and ensure the electrical system is built for real winching loads in South Africa.

Technical Specifications

• Brand: WARN
• Product Category: Premium 4x4 Electric Winch / Vehicle Recovery
• Rated Line Pull (Single Line): 14,000lb (6350kg)
• No Load Line Speed: 26.1 ft/min (7.95m/min)
• Rated Load Line Speed: 2.1 ft/min (0.64m/min)
• No Load Motor Current: 65A
• Rated Load Motor Current: 482A
• Motor: 12V DC, series wound (WARN high-performance design)
• Electrical Controls: Contactor
• Wiring: Automotive OE-grade bus bars
• Corrosion Resistance: 408-hour salt spray
• Ingress Protection: IP68 submersion + IP69K spray testing (entire unit)
• Geartrain: 3-stage planetary
• Gear Ratio: 213:1
• Clutch / Free Spooling: Rotating ring gear with stainless steel clutch lever (manual + remote activated)
• Brake: Automatic, six-segment mechanical cone
• Drum Diameter/Length: 3.15” / 9.0” (80mm / 229mm)
• Rope: 3/8” × 80’ (9.52mm × 24.38m) Spydura Pro synthetic
• Fairlead: Black anodised, forged aluminium hawse
• Remote Control: Corded remote with LED feedback light + Bluetooth-enabled HUB wireless receiver integrated into control pack
• Recommended Battery: 650 CCA minimum for winching
• Battery Leads: 2 gauge, 72” (1.83m)
• Finish: Satin-black powder coat
• Final Assembly: WARN facility, Clackamas, Oregon, USA
• Warranty: Limited lifetime mechanical + 7 years electrical
• Weight: 85lb (in box)
• SKU: 110140

What’s Included

• WARN ZEON XP 14-S winch (110140)
• Spydura Pro synthetic rope (3/8” × 80’)
• Black anodised forged aluminium hawse fairlead
• Corded remote with LED feedback light
• Integrated Bluetooth-enabled HUB wireless receiver (built into control pack)
• Battery leads (2 gauge, 72”)
• Mounting hardware: (not specified in supplied text)

Optional Fitment / Upgrade Notes

• Mounting required: Needs a compatible bumper or mounting plate.
• Power planning: Rated load motor current is 482A—ensure your battery, cabling, earth points, isolation, and charging system are designed for heavy winching.
• Wireless control: Wireless use depends on device/app compatibility (to be confirmed).
• Remote clutch: Useful for safer, easier operation, with a manual clutch lever as a mechanical backup.

Need maximum pulling power with premium sealing and advanced control? Enquire now with 4Matt Campers in Cape Town for the WARN ZEON XP 14-S (110140) and we’ll help you plan the right mounting and power setup for your rig.

Complete Your Setup

Browse the full WARN winch range and all our 4x4 winches. A winch needs a compatible winch-ready bull bar and a complete recovery kit.

FAQ

Does the ZEON XP 14-S have wireless control built in?
Yes—its control pack includes an integrated Bluetooth-enabled HUB wireless receiver, plus a corded remote with LED feedback.

How waterproof is this winch?
It’s rated for IP68 submersion and IP69K high-pressure spray testing for the entire unit (supplier-stated).

Does it have a remote-operated clutch?
Yes—there’s a remote-operated clutch with push-button function, and a manual clutch lever as a mechanical override.

What battery is recommended?
WARN recommends a minimum 650 CCA battery for winching.
